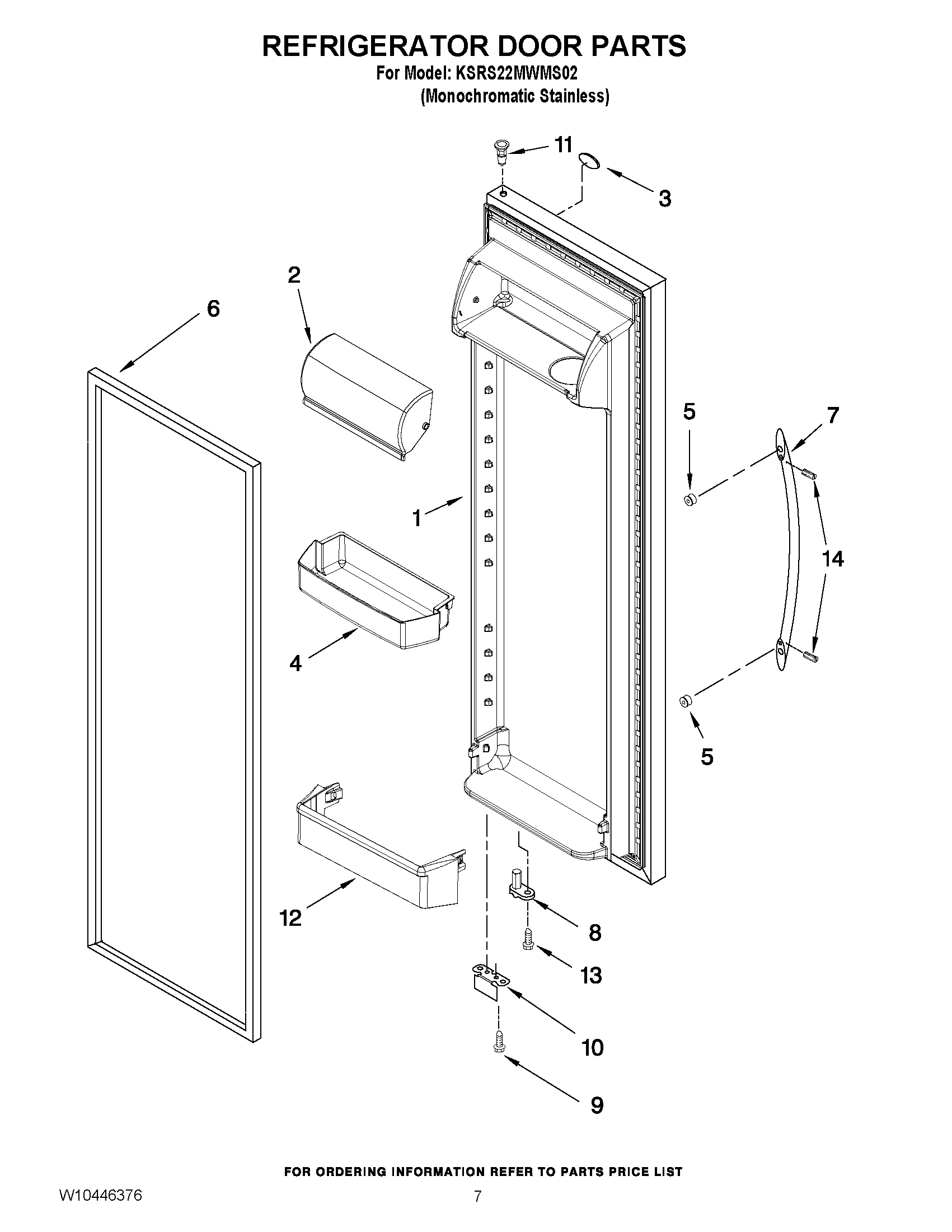

KSRS22MWMS02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEM 6) (STAINLESS)
2	Door, Compartment
3	WPW10243391 Whirlpool Refrigerator Nameplate
4	WPW10321304 Whirlpool Refrigerator Door Shelf Bin
5	WPW10170540 Whirlpool Screw
6	W10136732 Whirlpool Refrigerator FIP Gasket
7	Handle, Door (Stainless Steel)
8	WP2182179 Whirlpool Cam Closer
9	WP489483 Whirlpool Screw
10	BRACKET, DOOR STOP (SILVER)
11	WP2182181 Whirlpool Refrigerator Thimble
12	WP2309941 Whirlpool Refrigerator Door Bar Trim
13	WP3400012 Whirlpool Refrigerator Screw
14	SCREW
