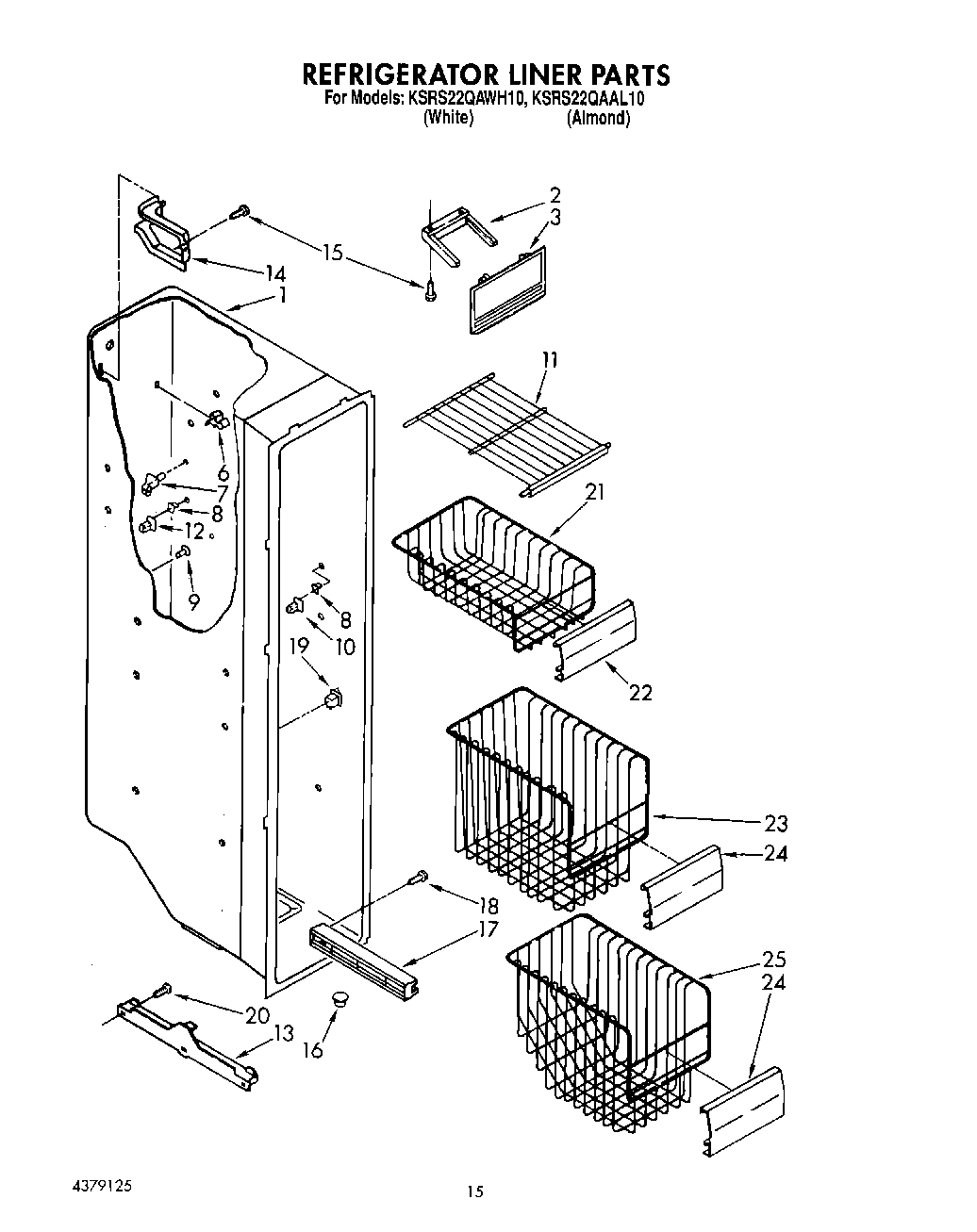

KSRS22QAAL10 09 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet (8)
10	Stud, Front R.S.
11	Shelf
12	Stud, Rear R.S.
13	W10845583 Whirlpool Refrigerator Track
13	W10845585 Whirlpool Refrigerator Track
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
16	Drain Ferrule
17	Shelf Track (Left Side (4))
17	Shelf Track (Right Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
21	Basket, Small
22	Front, Basket
23	Basket, Upper
24	Front, Basket
25	Basket, Lower
