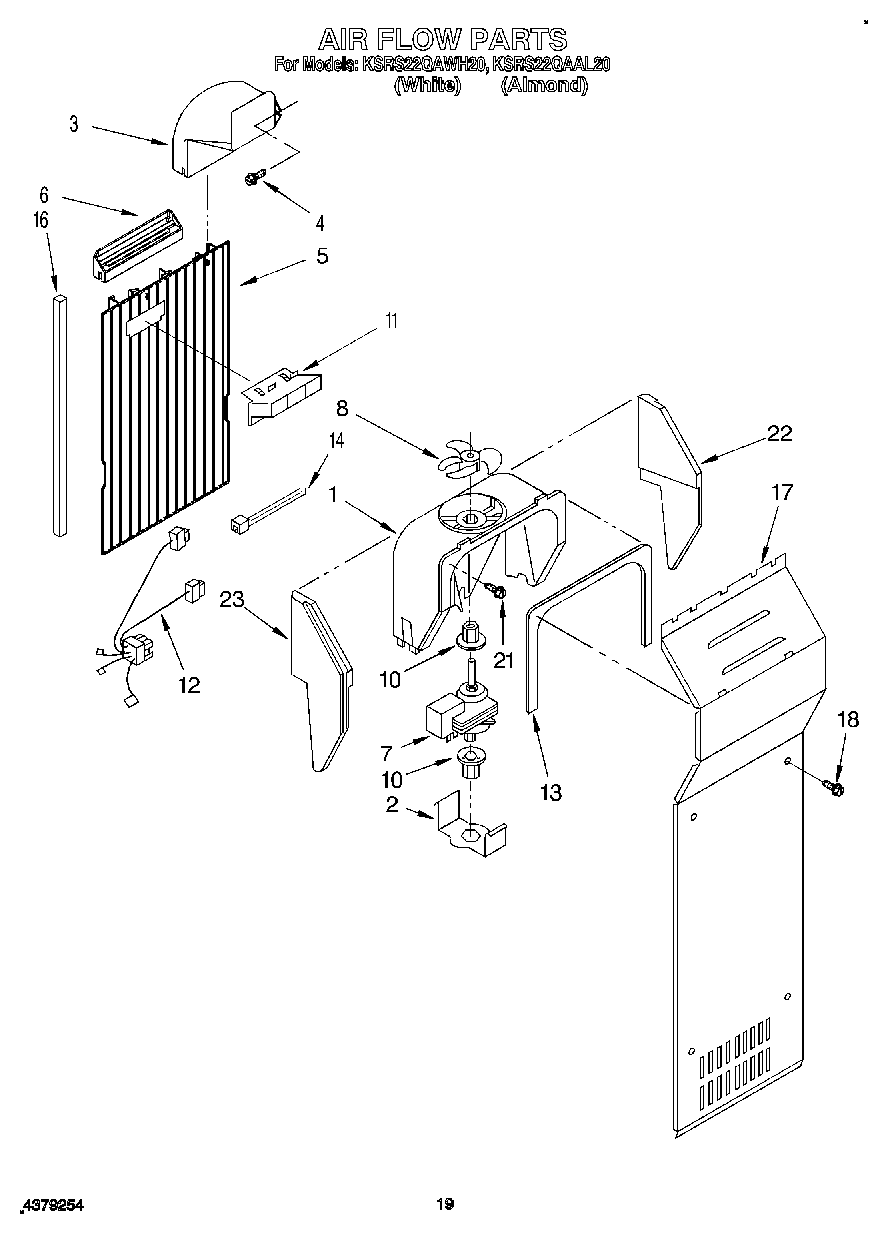

KSRS22QAAL20 12 – AIRFLOW, LIT/OPTIONAL

Products

Position	Product
	WPL LIT2155217
	WPL LIT2161900
	WPL LIT2168928
	Torx Key
	Modular Icemaker Service Sheet
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	4388357 Whirlpool Refrigerator Evaporator Cover
6	Diffuser, Air Duct
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	Grommet, Fan (2)
11	2182146 Whirlpool Refrigerator Duct
12	Harness, Fan Evaporator, And Heater, Bi-Metal
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	WP2304241 Whirlpool Refrigerator Gasket
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
23	Transformer (115-230 Volt)
23	Leveler (Thinner)
23	72032 Whirlpool Touch Up Paint Black
23	285006 Whirlpool Spray
23	WPW10312301 Whirlpool Refrigerator Ice Container
23	WPL 876029
23	511873 Whirlpool Refrigerator Paint
23	350942 Whirlpool Spray Paint
23	212643 Whirlpool Refrigerator Permagum Sealer
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	606755 Whirlpool Refrigerator Bag
23	833938 Whirlpool Refrigerator Terminal
23	WPL 799833
23	Enamel, Black (1 Qt. Uncut)
23	CEMENT, ALUMILASTIC (1 1/4 OZ.)
23	TAPE, VINYL (3/4 X 108``)
23	WP542638 Whirlpool Refrigerator Grease
23	WP505587 Whirlpool Refrigerator Sealer
23	WP503695 Whirlpool Refrigerator Sealer
23	876370 Whirlpool Refrigerator Insulation
23	350930 Whirlpool White Spray Paint
