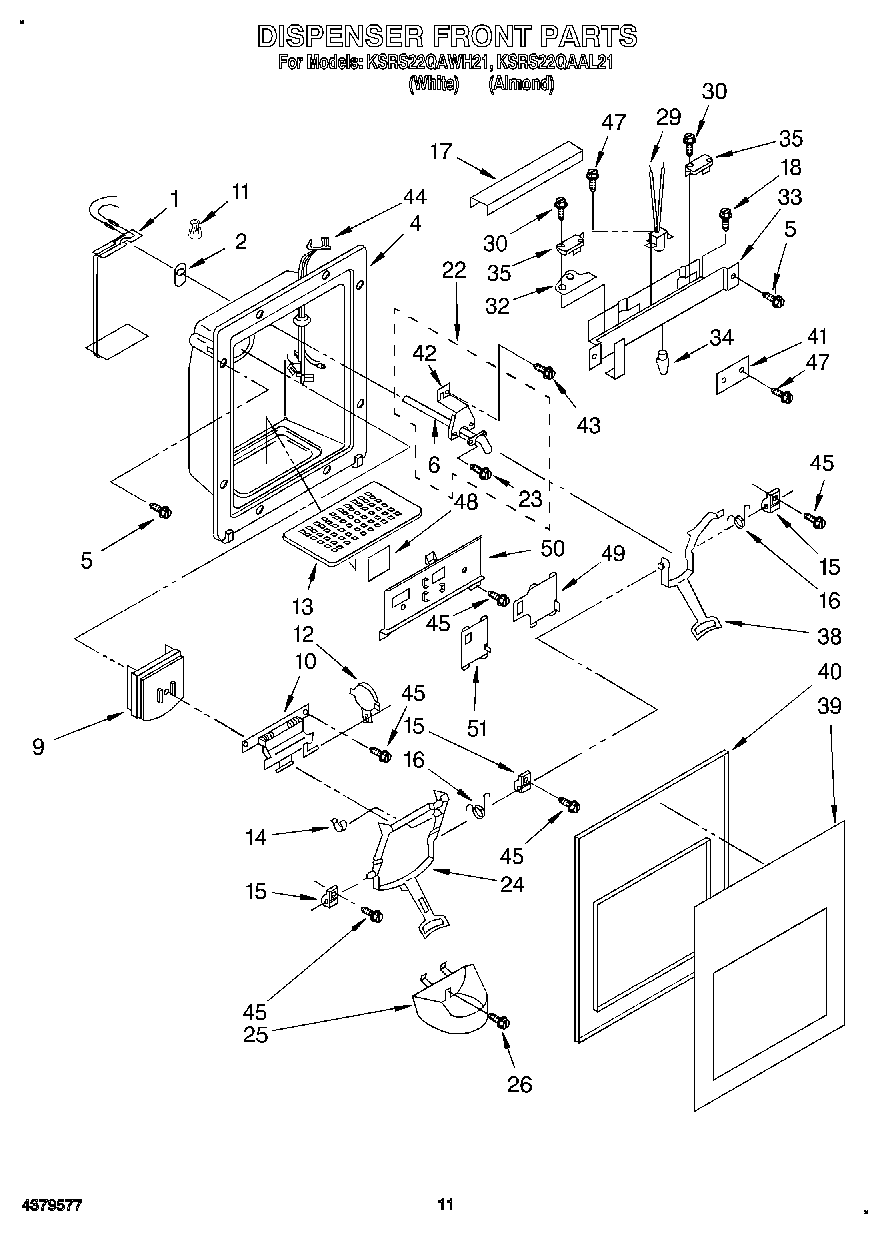

KSRS22QAAL21 07 – DISPENSER FRONT

Products

Position	Product
1	Heater, Dispenser
2	Grommet
4	Housing, Dispenser
4	Housing Dispenser (For Almond Model)
5	W11693756 Whirlpool Screw Assembly
6	Tube, Water (See Item No.22)
9	Door, Ice
10	Door Mechanism Assembly (Includes Item 9)
11	Wire Connector
12	WP1120581 Whirlpool Refrigerator Mechanism
13	Grille, Overflow (White)
13	Grille, Overflow (Almond)
14	Clip, Bearing (2)
15	Bearing, Lever (3)
16	Spring, Lever (2)
17	Shield, Wiring
18	WP489128 Whirlpool Refrigerator Screw
22	WP4388152 Whirlpool Refrigerator Fitting
23	WP965173 Whirlpool Dishwasher Screw
24	Lever Assembly, Ice Dispenser (Almond)
24	Lever Assembly, Ice Dispenser (White)
25	Guide, Ice
25	Guide, Ice (Almond)
26	Screw
29	Lamp Holder
30	Screw,
32	Insulator, Control Bracket
33	Bracket, Control
34	WP22002263 Whirlpool Dryer 10W Light Bulb
35	WP2162361 Whirlpool Switch
38	WPL 2159198
38	Lever Assembly, Water Dispenser (White)
39	WPL 1126177
39	WPL 1126176
40	WPL 1126171
40	WPL 1126170
41	Spacer, Switch (2)
42	Bracket, Water
43	Screw, 8-18 x 3/4
44	Wiring Harness, Door
45	WP3400906 Whirlpool Refrigerator Screw
47	Screw, 4-40 x 1
48	Heat Shield, Frame
49	Slide, Light Switch
49	Slide, Light Switch (Almond)
50	Frame, Slides (Almond)
50	Frame, Slides
51	Slide, Cube/Crush Switch
51	Slide, Cube/Crush Switch (Almond)
