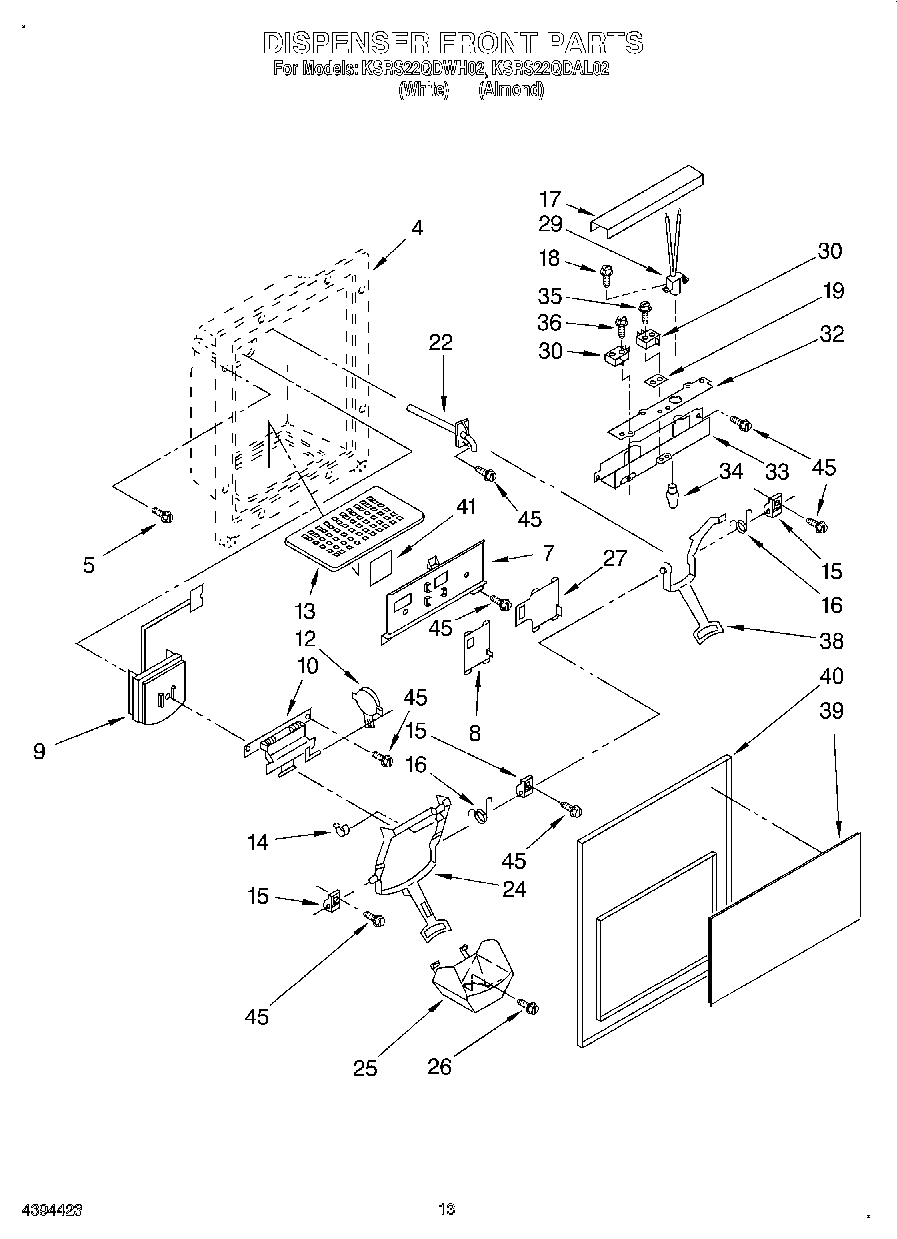

KSRS22QDWH02 08 – DISPENSER FRONT

KSRS22QDWH02 08 – DISPENSER FRONT

Written by

in

KSRS22QDWH02 08 – DISPENSER FRONT

Products

PositionProduct
4Housing, Dispenser (Not a Serviceable Part)
5W11693756 Whirlpool Screw Assembly
7Frame, Slides (Almond)
7Frame, Slides
8Slide, Cube/Crush Switch (Almond)
8Slide, Cube/Crush Switch
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow (White)
13Grille, Overflow (Almond)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
22WP4388152 Whirlpool Refrigerator Fitting
24Lever, Ice Dispenser (Almond)
24Lever, Ice Dispenser
25Guide, Ice (Almond)
25Guide, Ice
26Screw
27Slide, Light Switch
27Slide, Light Switch (Almond)
29Lamp Holder
30WP2162361 Whirlpool Switch
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35Screw, 4-40 x 1
36Screw,
38Lever, Water Dispenser
38WPL 2177152
39WPL 2174338
39WPL 2174336
40WPL 2179384
40WPL 2179386
41Heat Shield, Frame
45WP3400906 Whirlpool Refrigerator Screw
