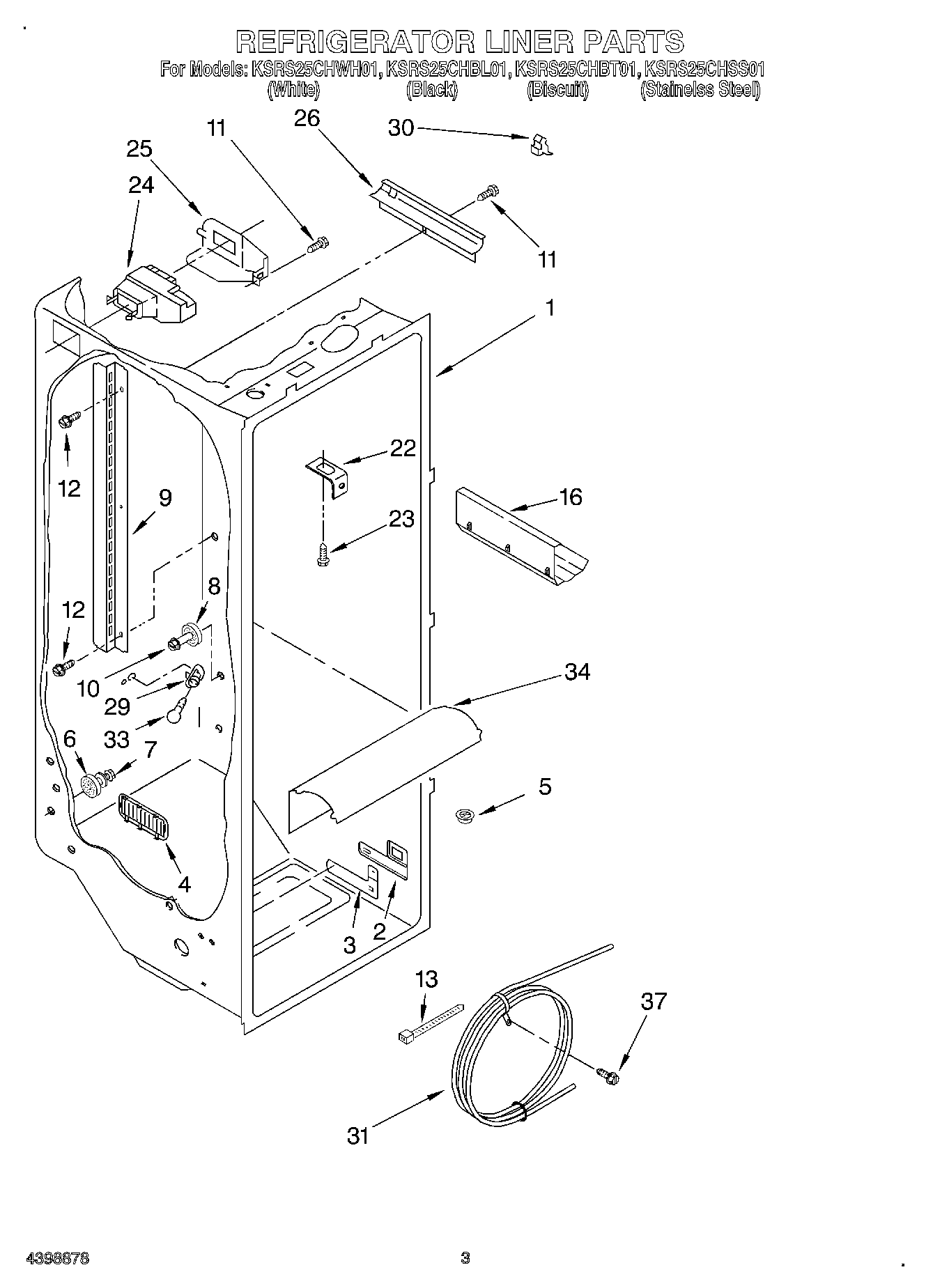

KSRS25CHBL01 02 – SECTIONadmin2025-04-26T11:40:22+00:00KSRS25CHBL01 02 – SECTION ProductsPositionProduct1Liner (Not A Serviceable Part)22194744 Whirlpool Refrigerator Escutcheon32182757 Whirlpool Refrigerator Slide4Louver52171846 Whirlpool Refrigerator Release Valve6W11223328 Whirlpool Refrigerator Shelf Stud7WP3-24004-109 Whirlpool Refrigerator Screw8WP2196483 Whirlpool Refrigerator Shelf Stud9Ladder, Shelf10WP3400806 Whirlpool Screw11W10759522 Whirlpool Screw12WP488729 Whirlpool Refrigerator Door Screw13WPW10339879 Whirlpool Wire Tie16W10777924 Whirlpool Refrigerator Wine Rack22WP2256085 Whirlpool Refrigerator Retainer23WP488488 Whirlpool Refrigerator Screw24WP2209751 Whirlpool Refrigerator Air Diffuser Assembly25WP2212240 Whirlpool Refrigerator Cover262150331 Whirlpool Refrigerator Wire Cover294387478 Whirlpool Refrigerator Light Socket302215823 Whirlpool Refrigerator Clip31WP2256126 Whirlpool Refrigerator Reservoir33RANGE ONLY 40W 120V APPL BULB34Light Lens37Screw (2)
