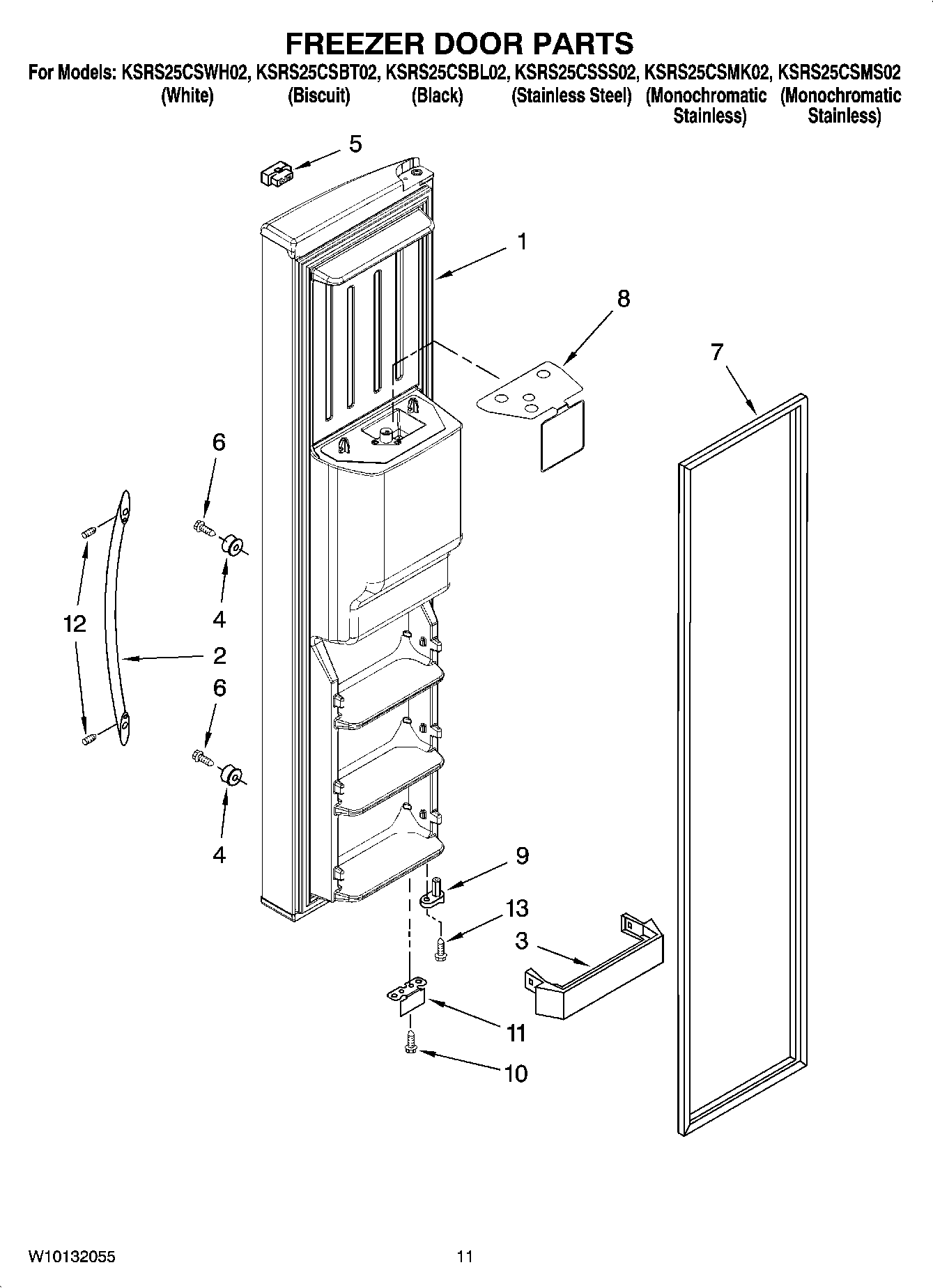

KSRS25CSBL02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 7 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 7 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 7 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 7 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 7 And Dispenser Front Parts) (Stainless Steel)
2	Handle, Door (Stainless Steel)
2	WP2319727W Whirlpool Refrigerator Handle
2	WP2319727B Whirlpool Refrigerator Handle
2	Handle (Includes 4) (Biscuit)
3	Shelf Bin (3)
4	WPW10170540 Whirlpool Screw
5	Connector
6	WP488163 Whirlpool Refrigerator Screw
7	2159074 Whirlpool Door Gasket Seal
7	W10136735 Whirlpool Refrigerator Door Gasket
7	2159082 Whirlpool Freezer Door Gasket Black
8	Safety Barrier
9	WP2223752 Whirlpool Refrigerator Door Cam
10	WP489483 Whirlpool Screw
11	Bracket, Door Stop (Black)
11	Bracket, Door Stop (Chrome)
12	WPW10010150 Whirlpool Refrigerator Screw
12	SCREW
13	Tube, Door
13	WP3400012 Whirlpool Refrigerator Screw
13	Wire Assembly, Freezer Door
13	Following Parts Not Illustrated
