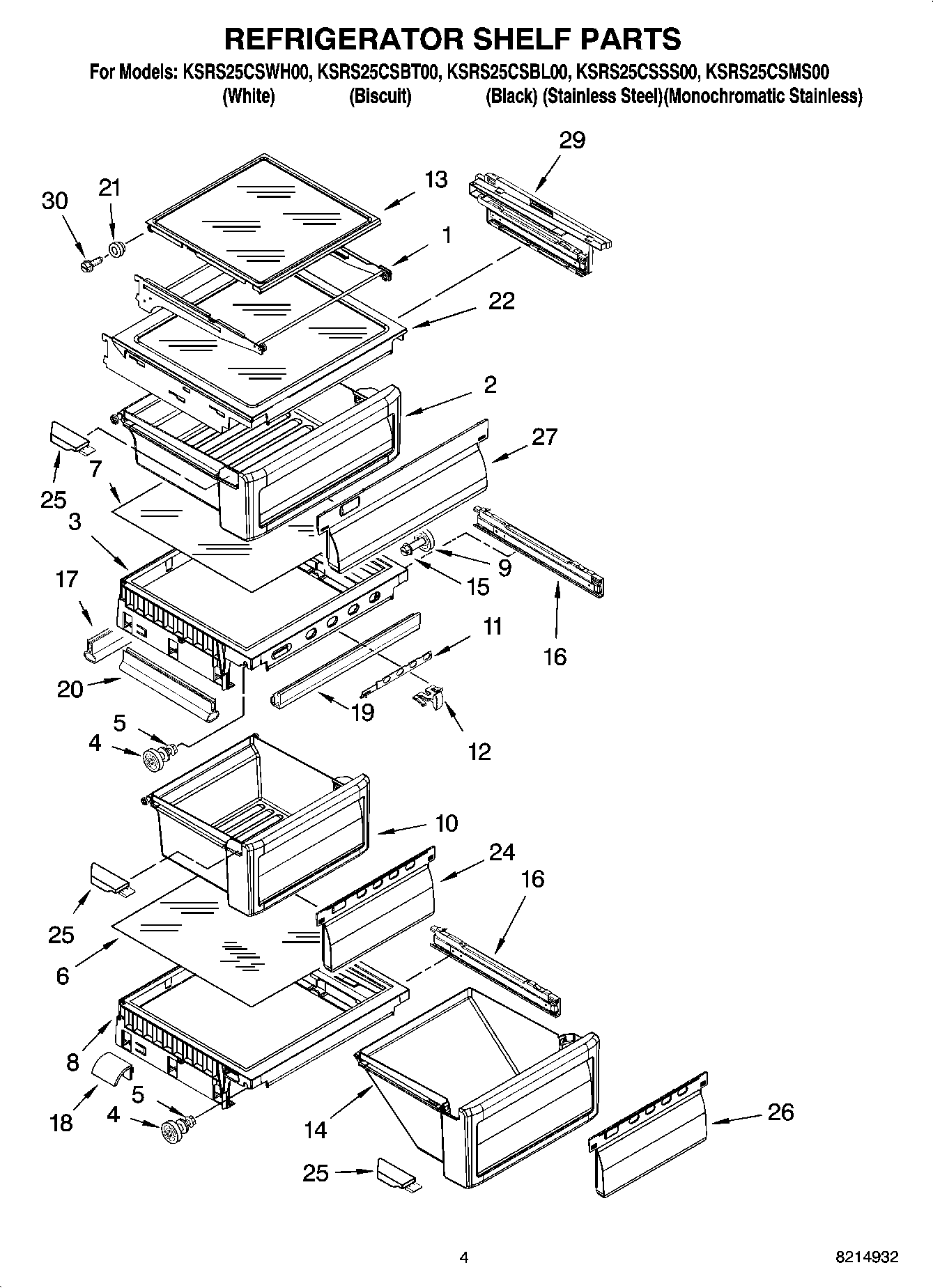

KSRS25CSBT00 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Frame Assembly
2	Snack Bin
3	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
4	W11223328 Whirlpool Refrigerator Shelf Stud
5	WP3-24004-109 Whirlpool Refrigerator Screw
6	Glass, Meat Pan Cover
7	Glass, Crisper Cover
8	Cover, Meat Pan (Includes 20 & 24)
9	WP2196483 Whirlpool Refrigerator Shelf Stud
10	W10916292 Whirlpool Refrigerator Crisper Pan
11	2301026 Whirlpool Refrigerator Slide
12	Knob, Humidity
13	Shelf & Roller Assembly (2)
14	Meat Pan (Includes 21)
15	WP3400806 Whirlpool Screw
16	2301548 Whirlpool Refrigerator Glide
16	Glide Assm-Pan (Left Side)
17	Gasket, Rear
18	Deflector
19	WP1125528 Whirlpool Refrigerator Gasket
20	2301117 Whirlpool Refrigerator Gasket
21	Roller
22	Shelf Assembly
24	Window, Crisper
25	Cap, Crisper Pan (Left Side)
25	Cap, Crisper Pan (Right Side)
26	Window, Meat Pan
27	Window, Snack Pan
29	Support Assembly (Left Side)
29	Support Assembly (Right Side)
30	Screw
