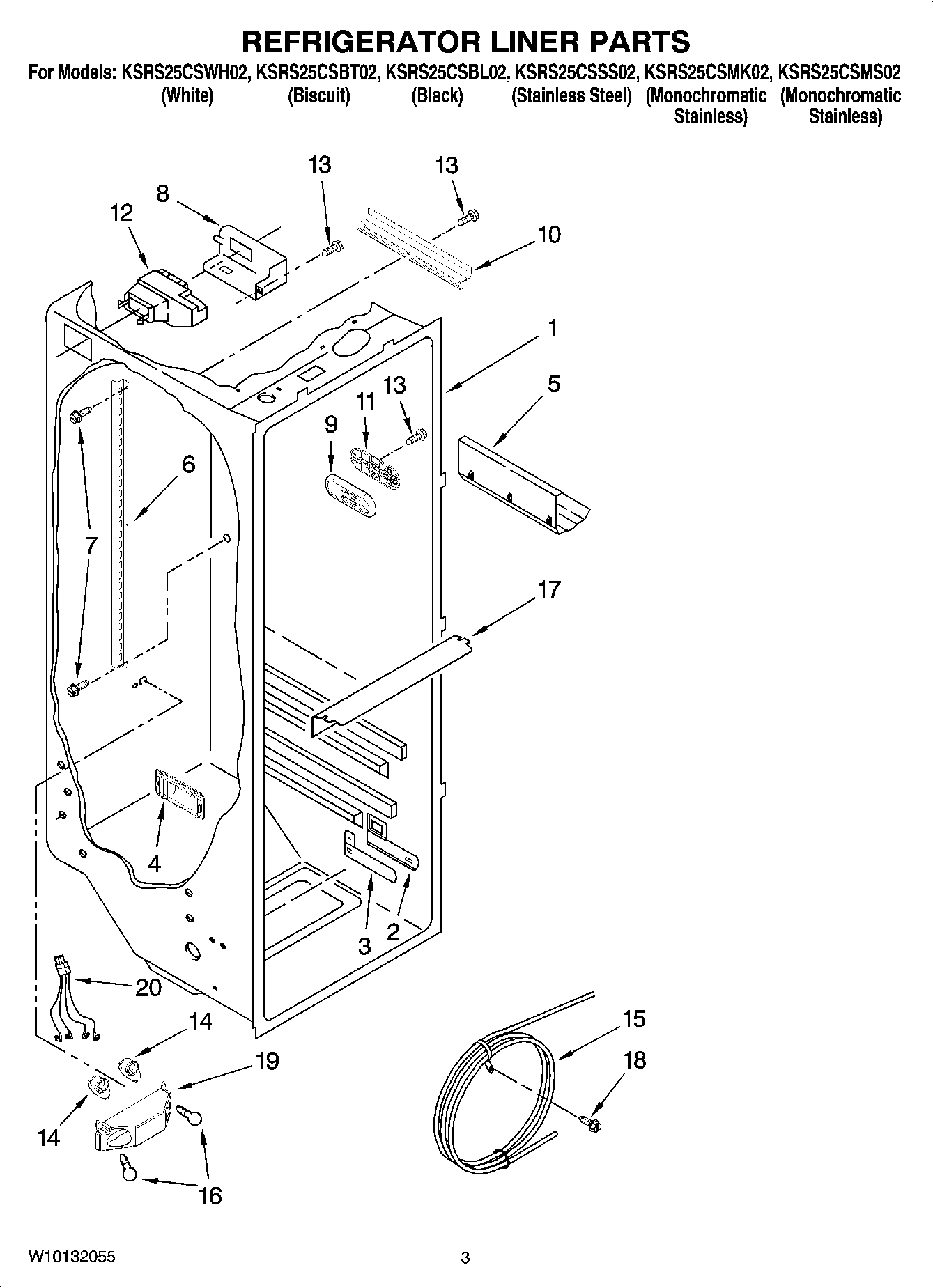

KSRS25CSMK02 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Shelf Ladder
7	WP489478 Whirlpool Refrigerator Screw
8	WP2212240 Whirlpool Refrigerator Cover
9	2301234 Whirlpool Refrigerator Control
10	2150331 Whirlpool Refrigerator Wire Cover
11	Slide, Door Control
12	WP2216112 Whirlpool Damper Control Assembly
13	W10759522 Whirlpool Screw
14	4387478 Whirlpool Refrigerator Light Socket
15	RESERVOIR
16	RANGE ONLY 40W 120V APPL BULB
17	Light Lens
18	Screw (2)
19	Bracket, Dual Crisper Light
20	2311637 Whirlpool Refrigerator Wire Harness
