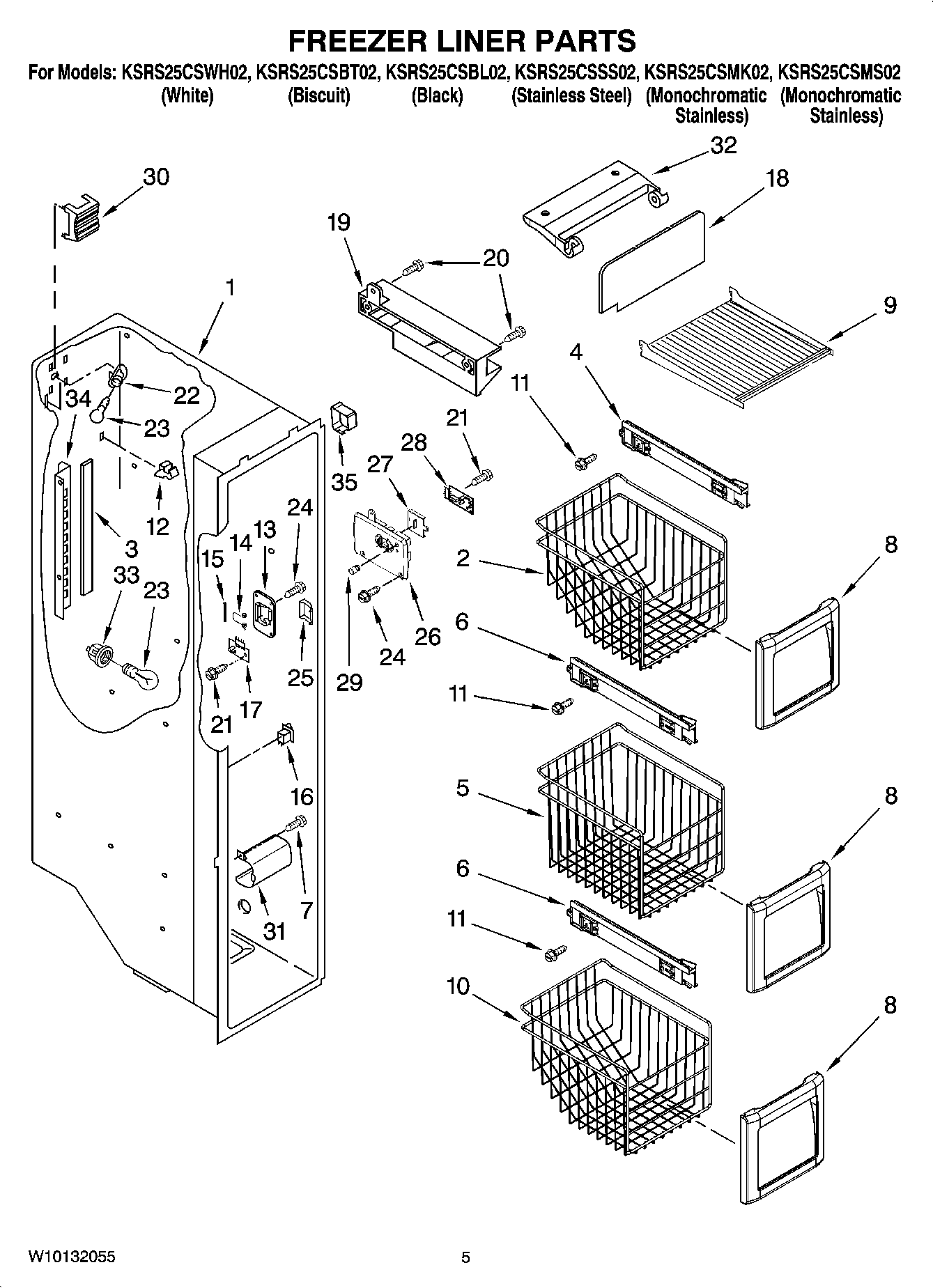

KSRS25CSMK02 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Basket, Top
3	Gasket
4	Glide Assy, Basket Top (Left Side)
4	Glide Assy, Basket Top (Right Side)
5	Basket, Deep
6	Glide Assy, Basket (Left Side)
6	Glide Assy, Basket (Right Side)
7	W10142289 Whirlpool Air Conditioner Screw
8	Front, Assembly Basket
9	Shelf (2)
10	Basket, Sloped
11	Screw
12	2215823 Whirlpool Refrigerator Clip
13	WP2198587 Whirlpool Refrigerator Cover
14	WP2198635 Whirlpool Refrigerator Spring
15	WP2198634 Whirlpool Door Pin
16	W11457217 Whirlpool Refrigerator Rocker Switch Combination
17	W10757851-includeCORE Whirlpool Electronic Control+Core
18	WP2255720 Whirlpool Refrigerator Ice Maker Door
19	Slide, Ice Maker
20	WP489478 Whirlpool Refrigerator Screw
21	2006254 Whirlpool Refrigerator Screw
22	4387478 Whirlpool Refrigerator Light Socket
23	RANGE ONLY 40W 120V APPL BULB
24	WPW10142283 Whirlpool Refrigerator Screw
25	WP2198633 Whirlpool Refrigerator Flipper
26	Cover, Receiver
27	Slide, Ice Maker Shut Off
29	WP2198643 Whirlpool Refrigerator Lens
30	Light Shield
31	Light Lens
32	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
33	SOCKET
34	Ladder (Right Side)
34	Ladder (Left Side)
35	2303234 Whirlpool Refrigerator Shield
