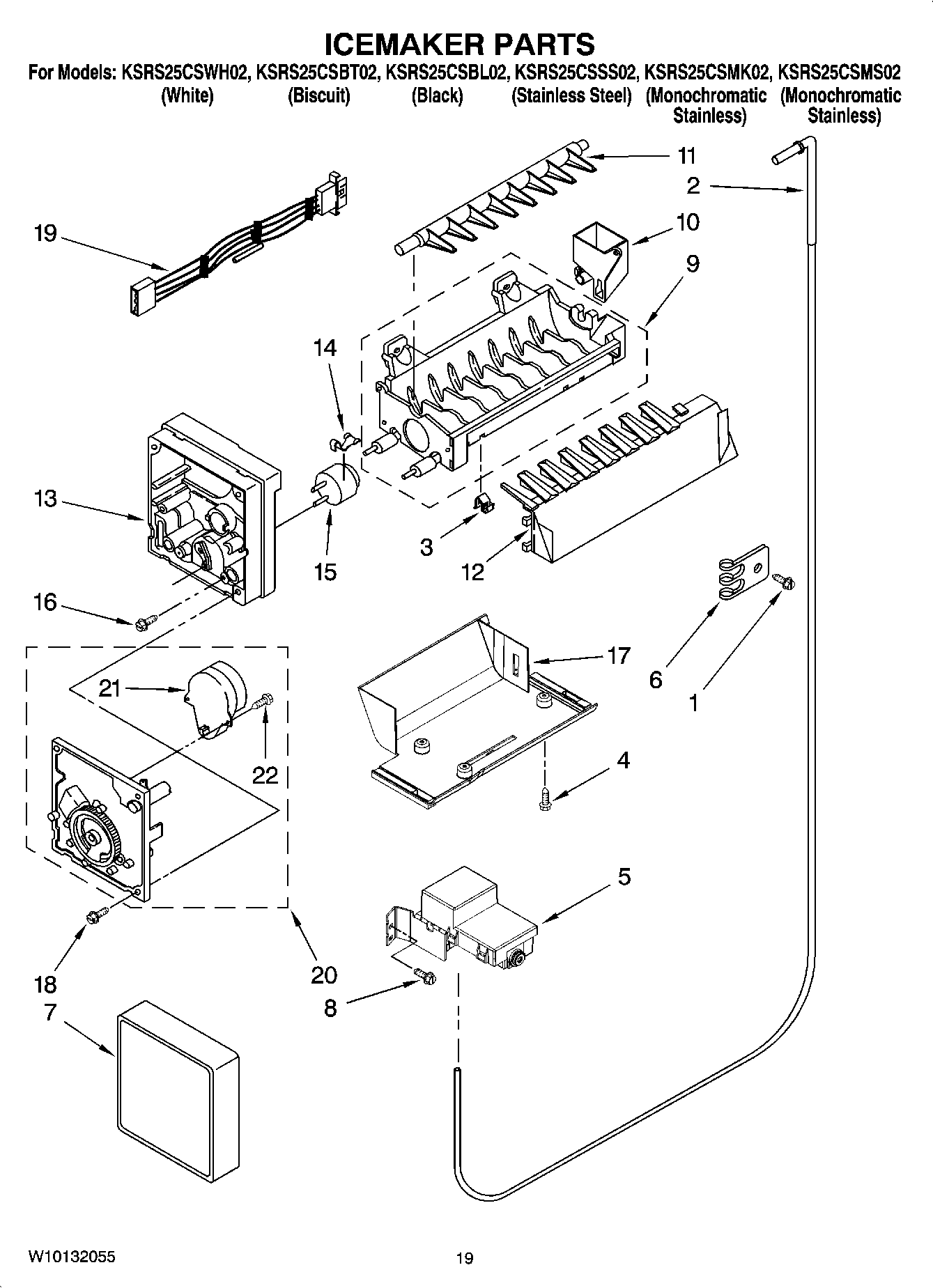

KSRS25CSMK02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSRS25CSMK02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSRS25CSMK02 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	606755 Whirlpool Refrigerator Bag
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	285006 Whirlpool Spray
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	350942 Whirlpool Spray Paint
	PAINT, BULK (1 QT. GRAPHITE)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL ARI101408A
	Torx Key
	WPL ARI101407A
	WPL ARI101406A
	CLEANER, (STAINLESS STEEL)
	4210463RW Whirlpool Refrigerator Coil Brush
	WPL ARI101409A
	212643 Whirlpool Refrigerator Permagum Sealer
	72032 Whirlpool Touch Up Paint Black
2	WP2256096 Whirlpool Refrigerator Fitting
3	WP628379 Whirlpool Refrigerator Clip
4	WP489478 Whirlpool Refrigerator Screw
5	WPW10159839 Whirlpool Refrigerator Inlet Valve
6	WP488366 Whirlpool Refrigerator Clamp
7	WPW10289690 Whirlpool Ice Maker Cover
8	WPW10141625 Whirlpool Refrigerator Screw Assembly
9	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10	WP628356 Whirlpool Refrigerator Fill Cup
11	WP627843 Whirlpool Refrigerator Ejector Arm
12	W10297244 Whirlpool Refrigerator Arm Strip
13	WP2195914 Whirlpool Refrigerator Ice Maker Housing
14	WP2315522 Whirlpool Refrigerator Clip
15	WP627985 Whirlpool Icemaker Cycling Thermostat
16	8533917 Whirlpool Refrigerator Screw
17	BRACKET, ICEMAKER MOUNTING
18	WP681249 Whirlpool Screw Assembly
19	WP2187467 Whirlpool Refrigerator Wire Harness
21	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
22	489136 Whirlpool Refrigerator Screw
100	2198597 Whirlpool Refrigerator Ice Maker
