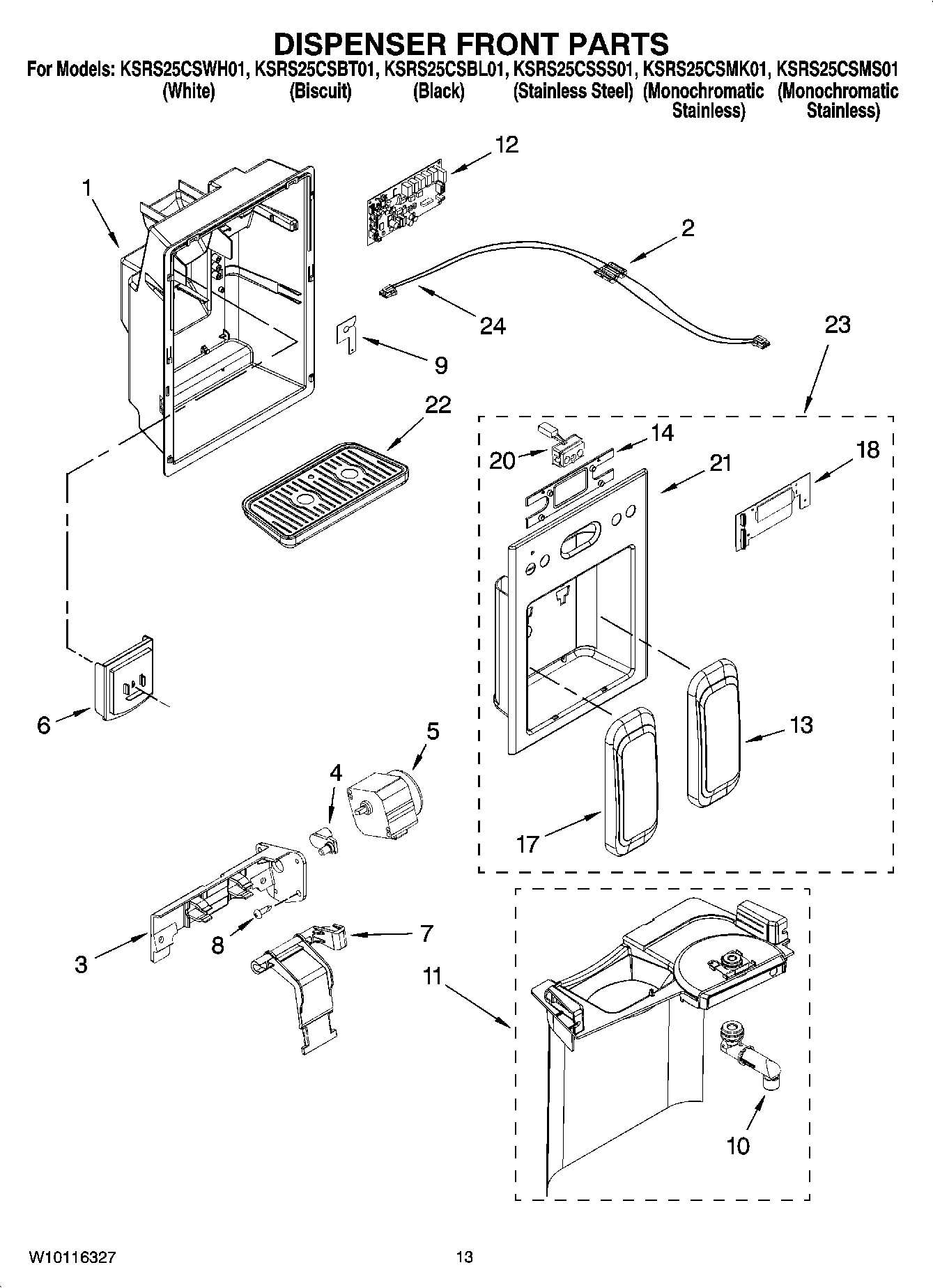

KSRS25CSSS01 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	Housing, Dispenser (Not Serviced)
2	Ferrite Bead
3	WP2305202 Whirlpool Refrigerator Bracket
4	WP2305242 Whirlpool Refrigerator Connector
5	WPW10184813 Whirlpool Refrigerator Motor
6	WP2305258 Whirlpool Dispenser Door Assembly
7	WP2305204 Whirlpool Refrigerator Support
8	WP4449745 Whirlpool Screw
9	2305447 Whirlpool Refrigerator Clip
10	Spigot
11	Seperator Assembly
12	WP2303843-includeCORE Whirlpool WP2303843 Refrigerator Electronic Control Board + Core
13	Pad, Water (White)
14	Lens, Front Cover
17	Pad, Ice (White)
17	W10133606 Whirlpool Refrigerator Pad
17	W10133603 Whirlpool Dispenser Actuator Pad Set
18	WP2321746 Whirlpool Refrigerator Electronic Control Board
20	LED Assembly
21	Front Cover, Housing (Not Available, Order No.23)
22	Drip Tray Assembly (Biscuit)
22	Drip Tray Assembly (Universal Silver)
22	Drip Tray Assembly (Black)
22	Drip Tray Assembly (White)
23	Front Cover Assembly (Includes Items 14, 17, 18, 20, & 21) (Black)
23	Front Cover Assembly (Includes Items 14, 17, 18, 20, & 21) (Biscuit)
23	Front Cover Assembly (Includes Items 14, 17, 18, 20, & 21) (Universal Silver)
23	Front Cover Assembly (Includes Items
24	WPL 2187814
