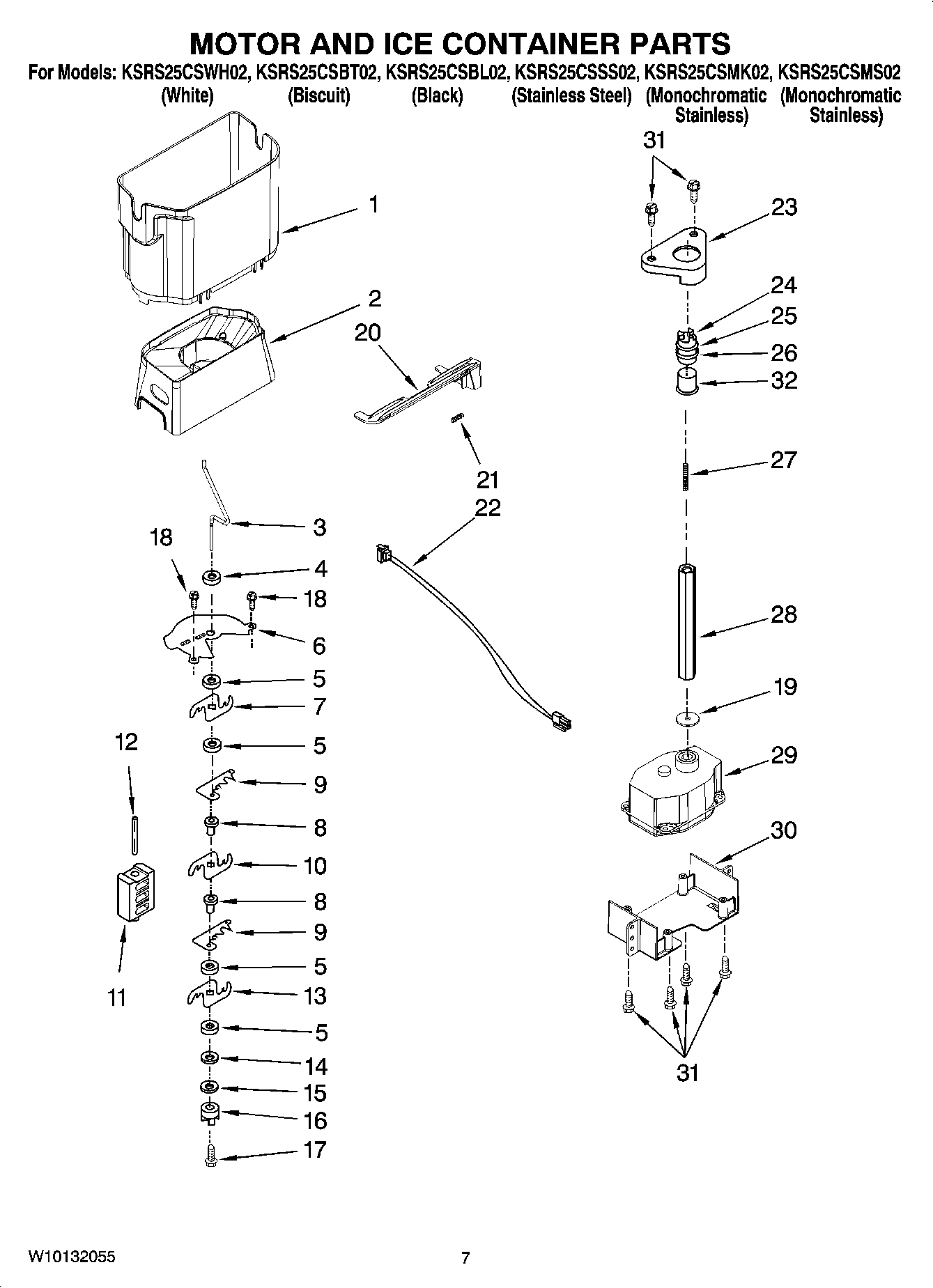

KSRS25CSSS02 05 – MOTOR AND ICE CONTAINER PARTSadmin2025-04-26T11:48:06+00:00KSRS25CSSS02 05 – MOTOR AND ICE CONTAINER PARTS ProductsPositionProduct1Ice Bin2Crusher Bin3W10852517 Whirlpool Refrigerator Ice Auger4Washer5WP1119007 Whirlpool Refrigerator Spacer6Cover, Crusher7W10278733 Whirlpool Refrigerator Blade8WP1119005 Whirlpool Refrigerator Spacer9Blade, Fixed10W10278732 Whirlpool Refrigerator Blade11Block, Blade12489229 Whirlpool Refrigerator Roll Pin13W10278731 Whirlpool Refrigerator Blade14WP489235 Whirlpool Refrigerator Washer15WP2198661 Whirlpool Refrigerator Washer16WP2220457 Whirlpool Refrigerator Ice Bin Coupling17WP8281164 Whirlpool Refrigerator Screw18WP3400065 Whirlpool Refrigerator Screw19WP2305382 Whirlpool Refrigerator Washer20Latch, Bin21WP2198608 Whirlpool Refrigerator Spring22Wire Assembly, IDI Motor23Holder24WP2220458 Whirlpool Drive Cam25WP2198628 Whirlpool Door Seal26WP2212370 Whirlpool Washer27W10852956 Whirlpool Refrigerator Spring28WP2305243 Whirlpool Refrigerator Shaft29WP2252130 Whirlpool Refrigerator Motor30Bracket, Motor31WP8281163 Whirlpool Refrigerator Screw32WP2212365 Whirlpool Refrigerator Sleeve100Ice Container (Complete)
