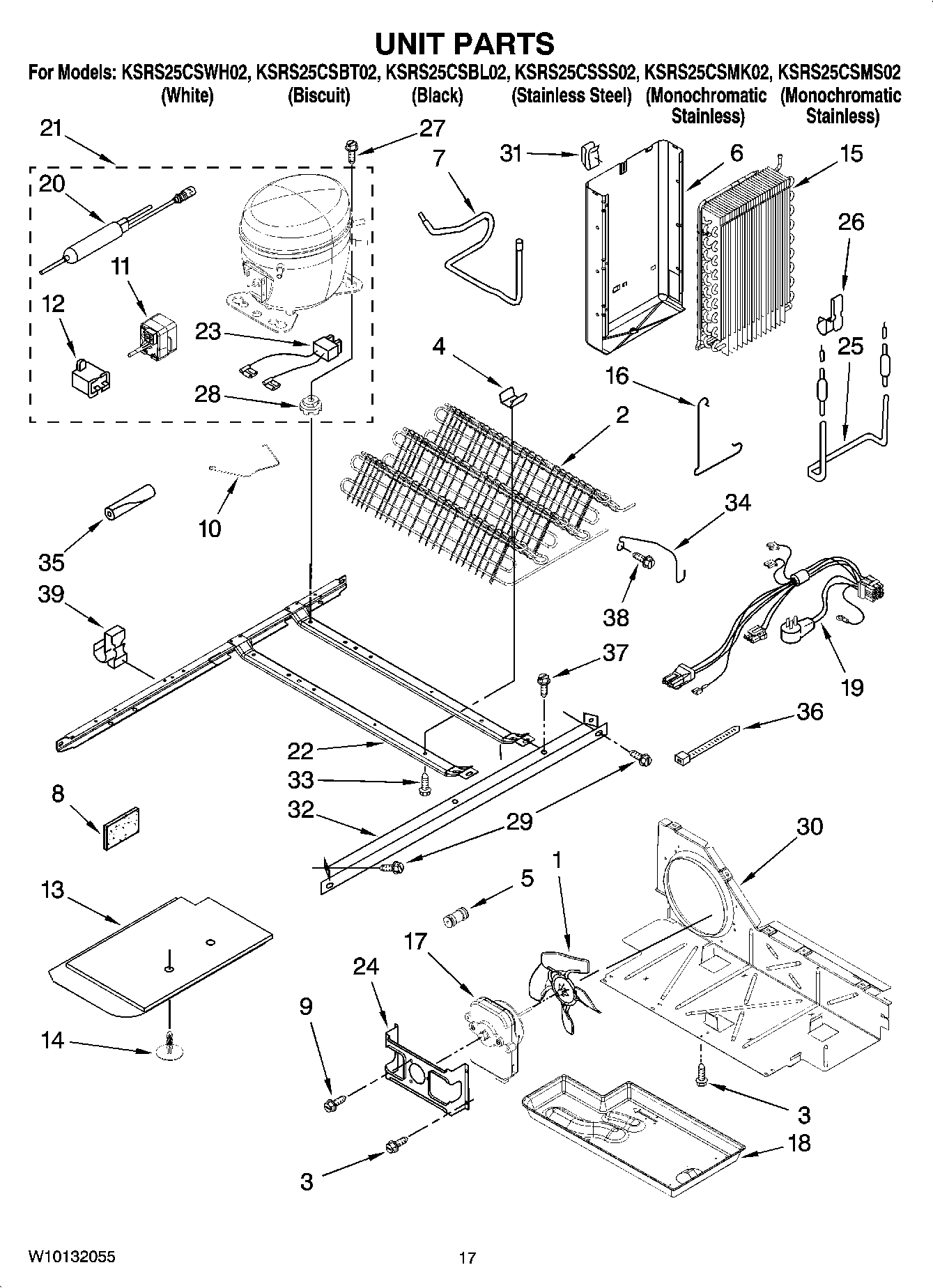

KSRS25CSSS02 11 – UNIT PARTSadmin2025-04-26T11:47:12+00:00KSRS25CSSS02 11 – UNIT PARTS ProductsPositionProduct1W11458267 Whirlpool Refrigerator Fan Blade22324712 Whirlpool Refrigerator Condenser3WP489464 Whirlpool Refrigerator Screw4W10683556 Whirlpool Refrigerator Clip5Union6Heat Shield7WP2205765 Whirlpool Refrigerator Tube8W11553819 Whirlpool Refrigerator Insulation9WP8533993 Whirlpool Refrigerator Screw10Clip, Retaining11WP2319792 Whirlpool Refrigerator Start Device12WPW10662129 Whirlpool Refrigerator Run Capacitor13Unit Cover, Bottom14489396 Whirlpool Refrigerator Clip15WP2188823 Whirlpool Refrigerator Evaporator16Clamp17WP2188874 Whirlpool Refrigerator Condenser Motor18WPW10614158 Whirlpool Refrigerator Evaporator Tray19Harness, Unit20WPW10143759 Whirlpool Dryer Filter20W10843121 Whirlpool Refrigerator Tube21W10139460 Whirlpool Refrigerator Compressor222304904 Whirlpool Frame Assembly23WP2172890 Whirlpool Refrigerator Wire24WP2181929 Whirlpool Refrigerator Bracket25WP2323198 Whirlpool Refrigerator Heater26W11623163 Whirlpool Refrigerator Clip28WP4387558 Whirlpool Refrigerator Compressor Grommet28876811 Whirlpool Grommet29489340 Whirlpool Refrigerator Screw30W10896764 Whirlpool Refrigerator Air Baffle31Clip, Heat Shield322305374 Whirlpool Refrigerator Unit Rail33W11544659 Whirlpool Refrigerator Screw342260517 Whirlpool Fan Guard35SLEEVE36WPW10339879 Whirlpool Wire Tie37WP489427 Whirlpool Refrigerator Screw38WP489478 Whirlpool Refrigerator Screw39Following Parts Not Illustrated and Optional Parts Not Included39VALVE, ACCESS (5/8``)39978026 Whirlpool Refrigerator Primary Valve39978027 Whirlpool Refrigerator Primary Valve39978030 Whirlpool Refrigerator Valve39WP978025 Whirlpool Refrigerator Valve39VALVE, ACCESS (1/2``)39876764 Whirlpool Refrigerator Primary Valve39Clip, Wire & Tube39REFRIGERANT CHARGE 5.0 oz. (R-134A)
