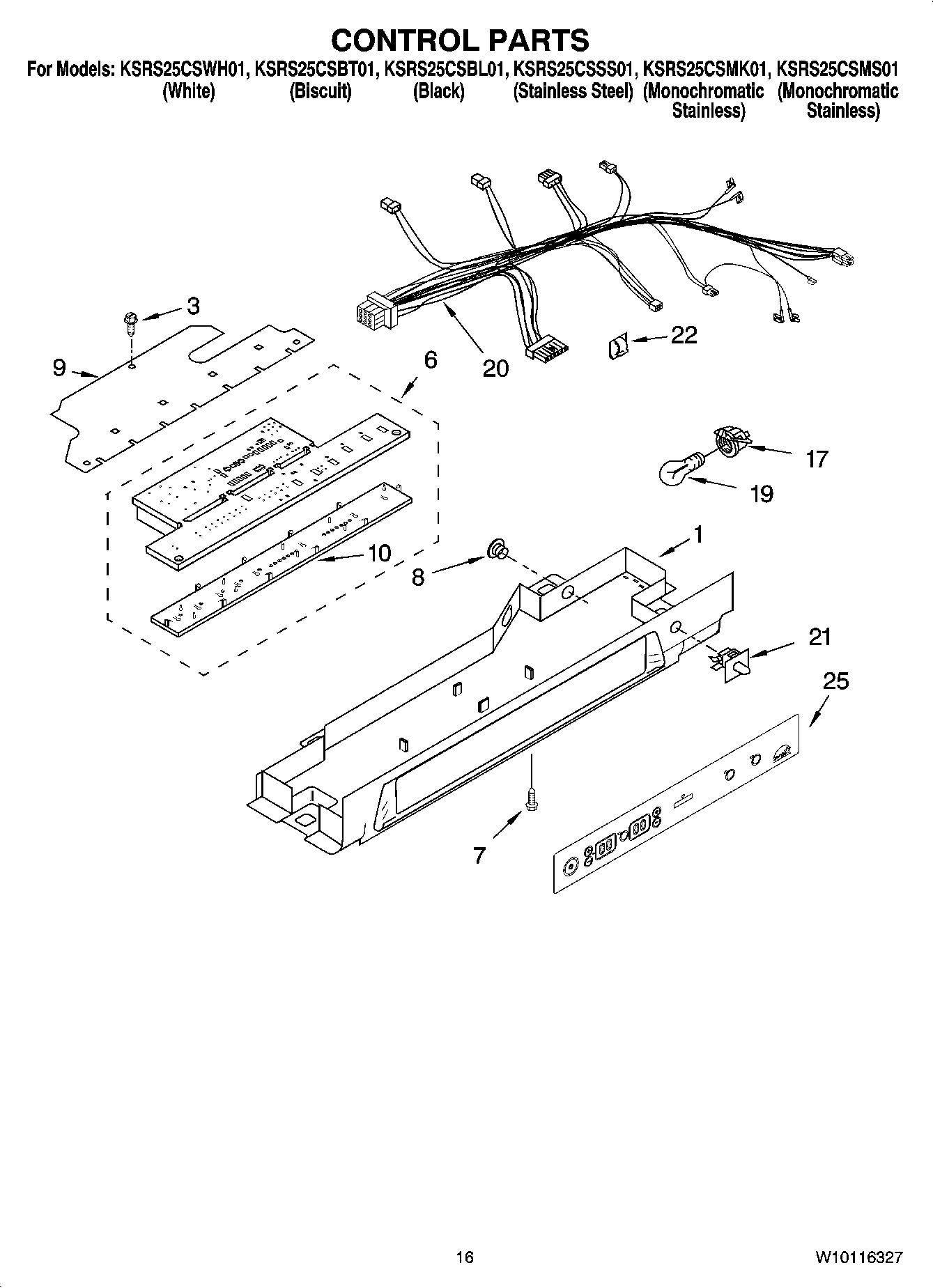

KSRS25CSWH01 10 – CONTROL PARTS

Products

Position	Product
1	Control Box
3	WP3196557 Whirlpool Screw
6	Electronic Control
7	WP67006908 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	Cover, Ctrl Box
10	Insert, Control Board (Not Available, Order 6)
17	4387478 Whirlpool Refrigerator Light Socket
19	RANGE ONLY 40W 120V APPL BULB
20	Control Box Harness
21	WP2149705 Whirlpool Refrigerator Door Switch
22	WP1115374 Whirlpool Refrigerator Clip
25	Overlay, Control Box
