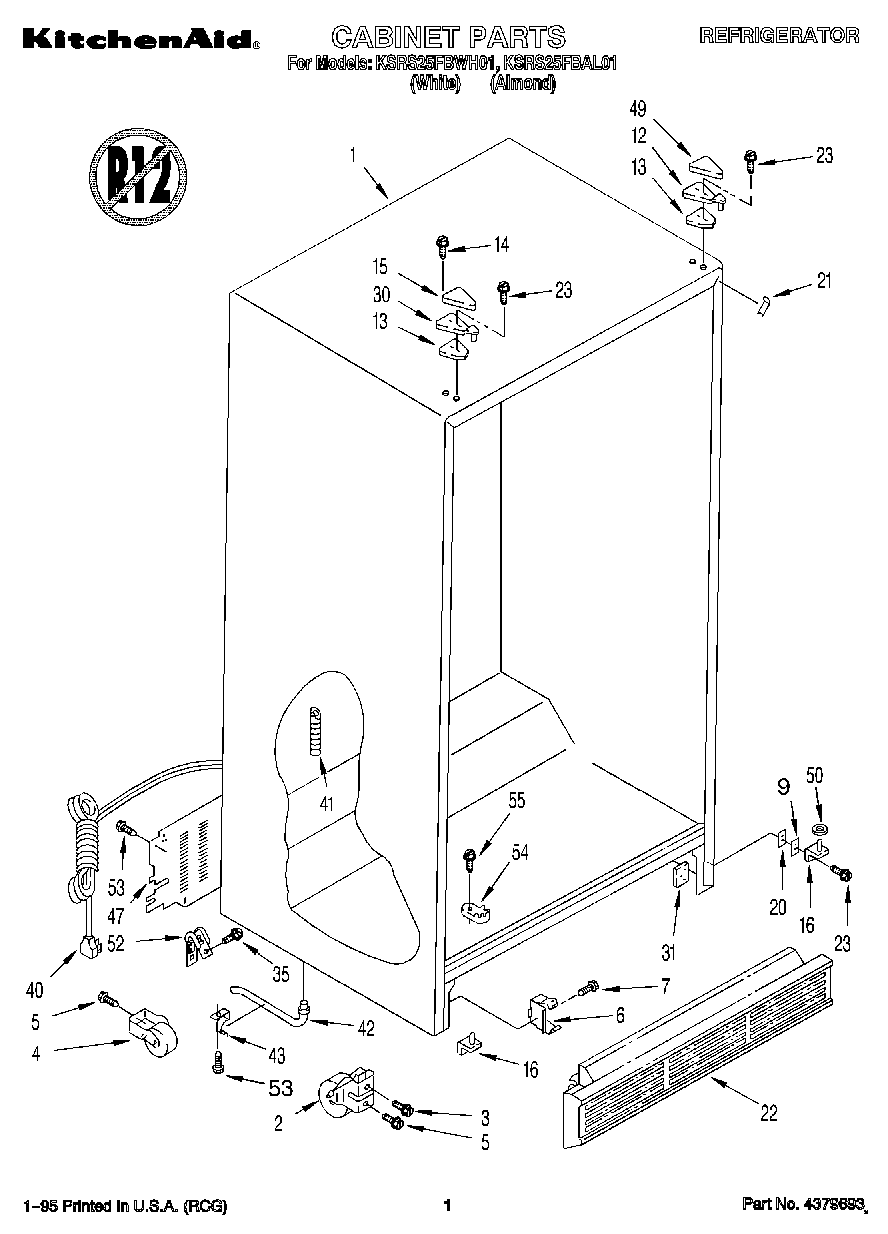

KSRS25FBAL01 01 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Front Roller (2)
3Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
9WP2181911 Whirlpool Refrigerator Shim
12Hinge Top (R.H.)
13Shim, Hinge Top
14Screw
15WP1129262 Whirlpool Refrigerator Cover
168201707 Whirlpool Door Hinge
20Spacer, Hinge
21Filler, Wrapper (Almond)
21Filler, Wrapper (White)
22Grille (White)
22Grille (Almond)
23WP999367 Whirlpool Refrigerator Screw
30WP2196046 Whirlpool Refrigerator Door Hinge
31Tap Plate (2)
35WP489464 Whirlpool Refrigerator Screw
40Cord, Service
41W11566763 Whirlpool Fitting
42WP1108438 Whirlpool Refrigerator Extension
43WP1108439 Whirlpool Refrigerator Clip
47WP2188755 Whirlpool Rear Panel
491119787 Whirlpool Refrigerator Hinge Cover
50Washer, 7/16
52549193 Whirlpool Refrigerator Power Clamp
54WPW10329686 Whirlpool Door Cam Black
55WP489483 Whirlpool Screw
