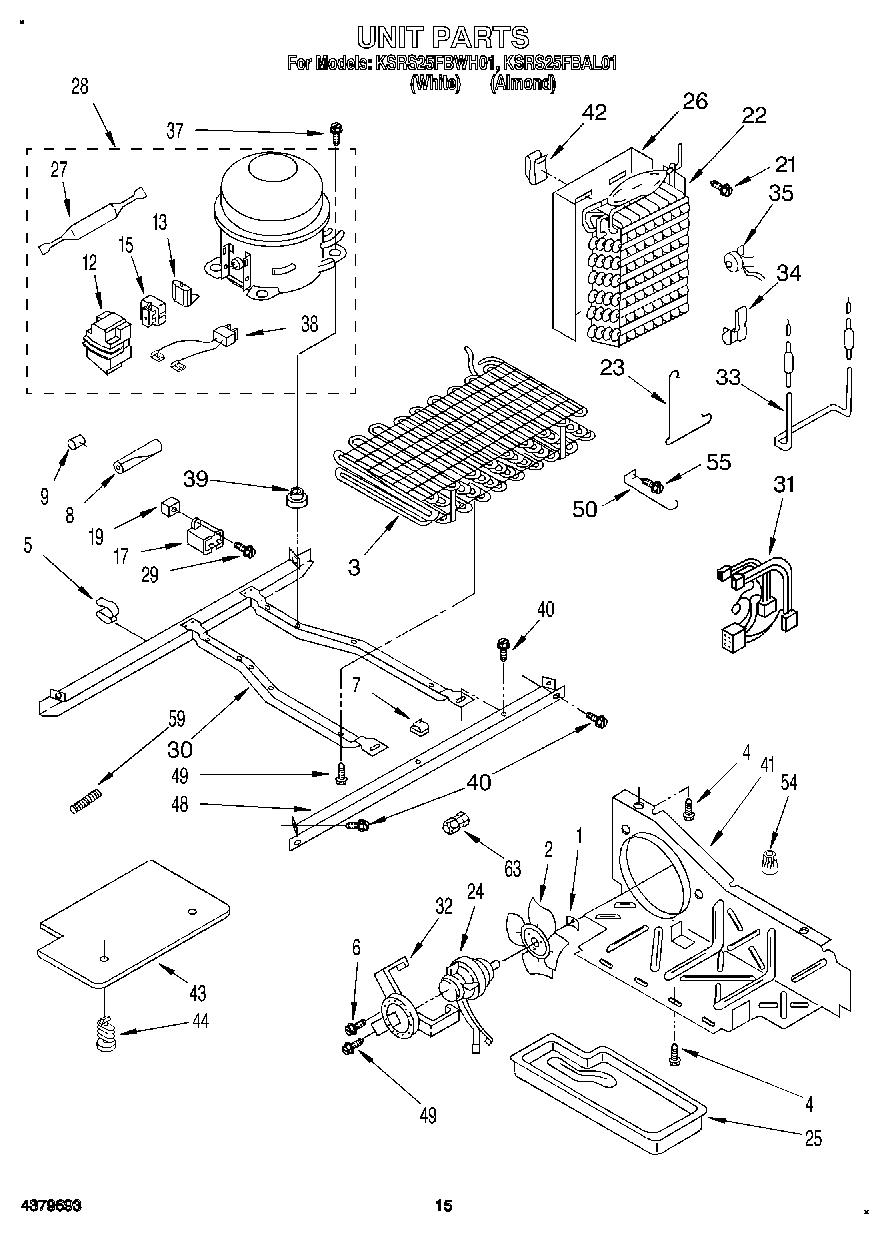

KSRS25FBWH01 09 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
7	Clip, Tube (3)
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2154697 Whirlpool Refrigerator Overload
15	Relay (See Overload)
17	Capacitor
19	Screw Grommet
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	Clamp
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	W10309994 Whirlpool Refrigerator Compressor
28	876765 Whirlpool Primary Mounting Kit Refrigerator
29	W11693756 Whirlpool Screw Assembly
30	2304904 Whirlpool Frame Assembly
31	Unit, Harness
32	Bracket, Motor
33	Heater, Defrost
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
40	WP489427 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Unit Cover, Bottom
44	489396 Whirlpool Refrigerator Clip
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
54	Wire Connector
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
59	Spring-Tube
63	VALVE, ACCESS (5/8“)
63	876764 Whirlpool Refrigerator Primary Valve
63	978026 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	VALVE, ACCESS (1/2“)
63	WP4211117 Whirlpool Refrigerator Connector
63	WP978025 Whirlpool Refrigerator Valve
