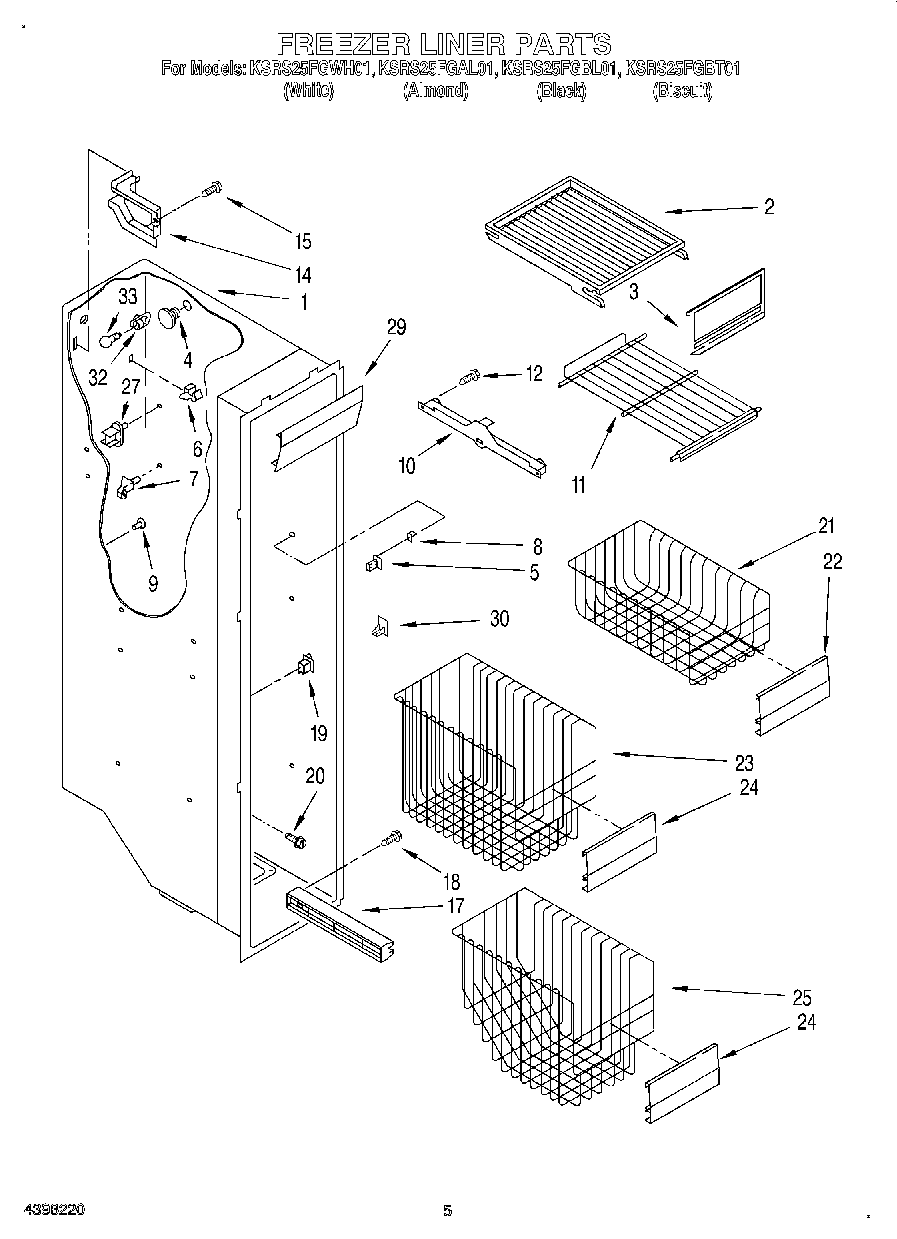

KSRS25FGBT01 04 – FREEZER LINERadmin2025-04-26T11:49:16+00:00KSRS25FGBT01 04 – FREEZER LINER
Products
| Position | Product |
|---|
| 1 | Liner (Not A Serviceable Part) |
| 2 | Shelf, Top Compartment |
| 3 | WP2171713 Whirlpool Refrigerator Ice Door |
| 4 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 5 | Stud, Front R.S. |
| 6 | 2215823 Whirlpool Refrigerator Clip |
| 7 | 4388405 Whirlpool Refrigerator Shelf Stud |
| 8 | Stud, Support |
| 9 | Grommet |
| 10 | W10845583 Whirlpool Refrigerator Track |
| 10 | W10845585 Whirlpool Refrigerator Track |
| 11 | WP2174267 Whirlpool Refrigerator Wire Shelf |
| 12 | 718257 Whirlpool Dishwasher Screw |
| 14 | Cover, Wiring |
| 15 | SCREW |
| 17 | Slide, Basket (Left Side (2)) |
| 17 | Slide, Basket (Right Side (2)) |
| 18 | W10759522 Whirlpool Screw |
| 19 | W11457217 Whirlpool Refrigerator Rocker Switch Combination |
| 20 | WP489478 Whirlpool Refrigerator Screw |
| 21 | Basket |
| 22 | Front, Basket |
| 23 | Basket, Tall |
| 24 | 2305580K Whirlpool Refrigerator Basket Trim |
| 25 | Basket, Slope |
| 27 | Stud, Shelf (4) |
| 29 | 2171705 Whirlpool Refrigerator Light Lens |
| 30 | Stud, Rear R.S. |
| 32 | 4387478 Whirlpool Refrigerator Light Socket |
| 33 | RANGE ONLY 40W 120V APPL BULB |
