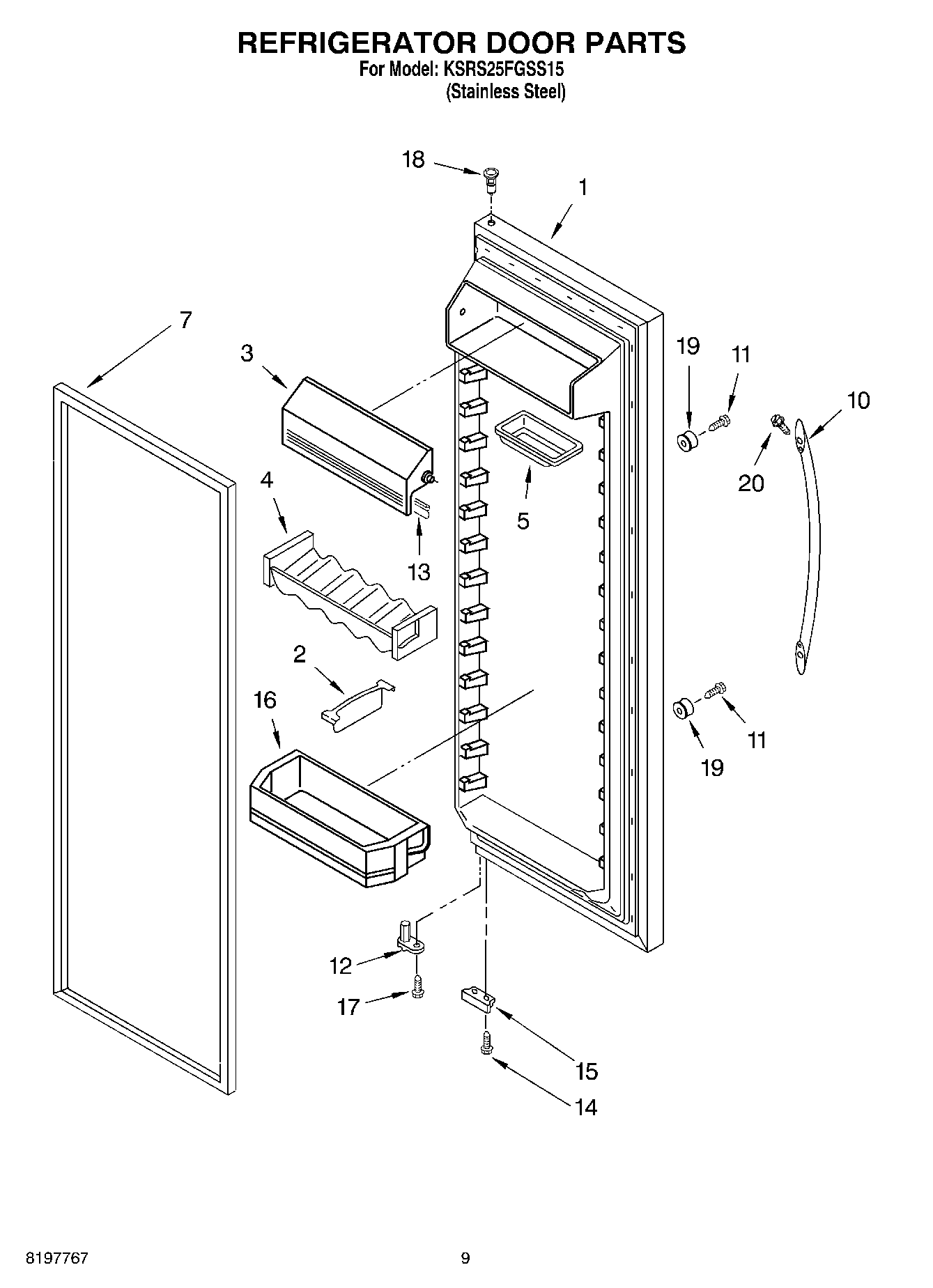

KSRS25FGSS15 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.7) (Stainless Steel)
2	Divider, Bin
3	WP2313637 Whirlpool Cutting Grid Assembly
4	Beverage Holder
5	Butter Tray
7	2159083 Whirlpool Gasket Door
10	Handle (Stainless Steel)
11	WP489463 Whirlpool Refrigerator Screw
12	WP2182179 Whirlpool Cam Closer
13	Gasket, Door Compartment
14	WP489483 Whirlpool Screw
15	Bracket, Door Stop (Black)
15	Bracket, Door Stop (Chrome)
16	Bin, Door Shelf
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2182181 Whirlpool Refrigerator Thimble
19	Stud, Handle
20	Setscrew, 10-32
