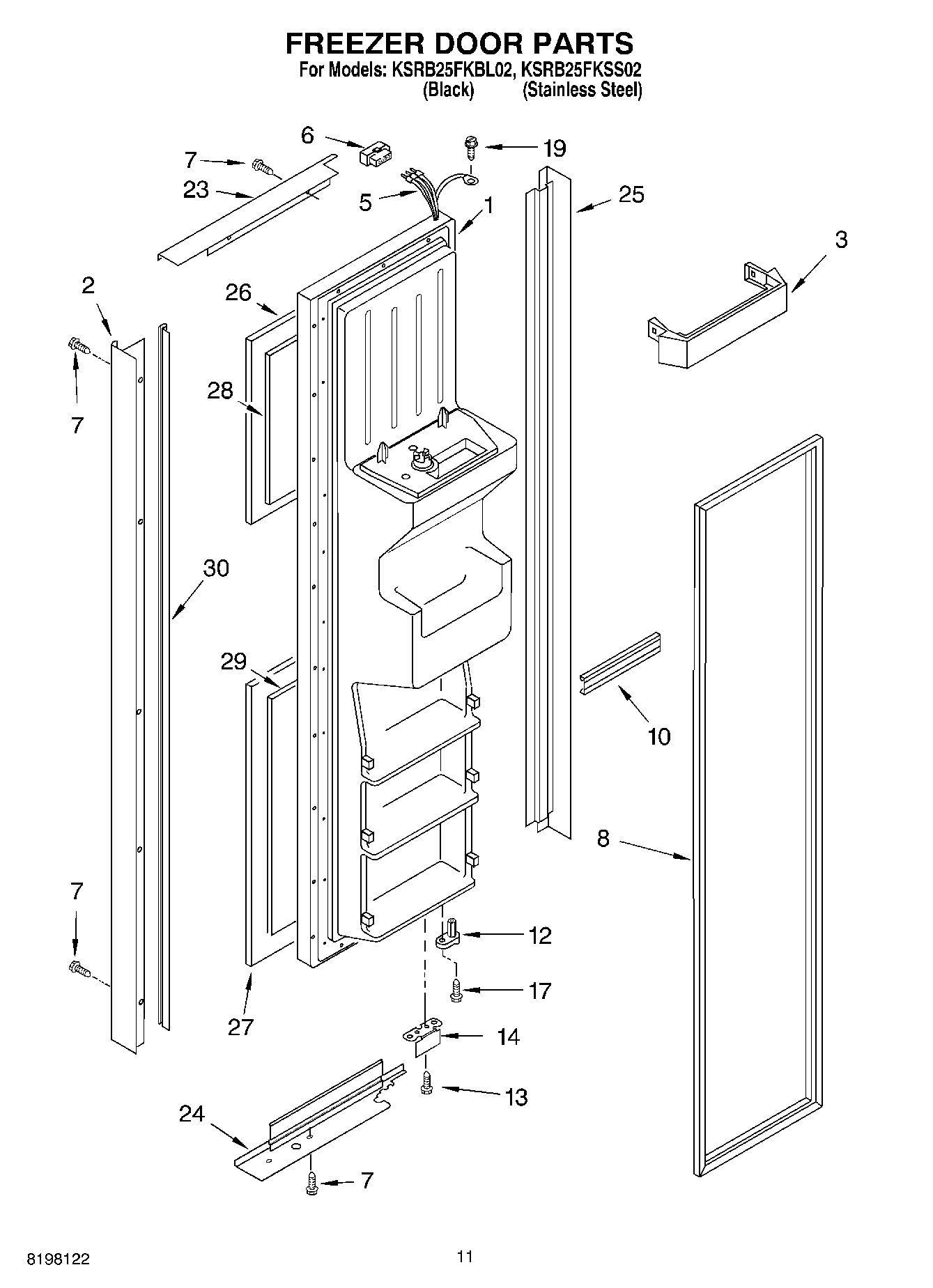

KSRS25FKBL02 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (Stainless Steel)
2	Handle (Black)
3	Shelf Bin (4)
5	Dispenser Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	Screw (Stainless Steel)
7	Screw (Black)
8	2159082 Whirlpool Freezer Door Gasket Black
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
17	WP3400012 Whirlpool Refrigerator Screw
19	WP489128 Whirlpool Refrigerator Screw
23	Trim, Door Top (Stainless Steel)
23	Trim, Door Top (Black)
24	Trim, Door Bottom (Black)
24	Trim, Door Bottom (Stainless Steel)
25	Trim, Hinge Side (Stainless Steel)
25	Trim, Hinge Side (Black)
26	Panel, Door Upper (Stainless Steel)
26	Panel, Door Upper (Black)
27	Panel, Door Lower (Black)
27	Panel, Door Lower (Stainless Steel)
28	Filler, Board Upper
29	Filler, Board Lower
30	Egding, Panel (Black)
