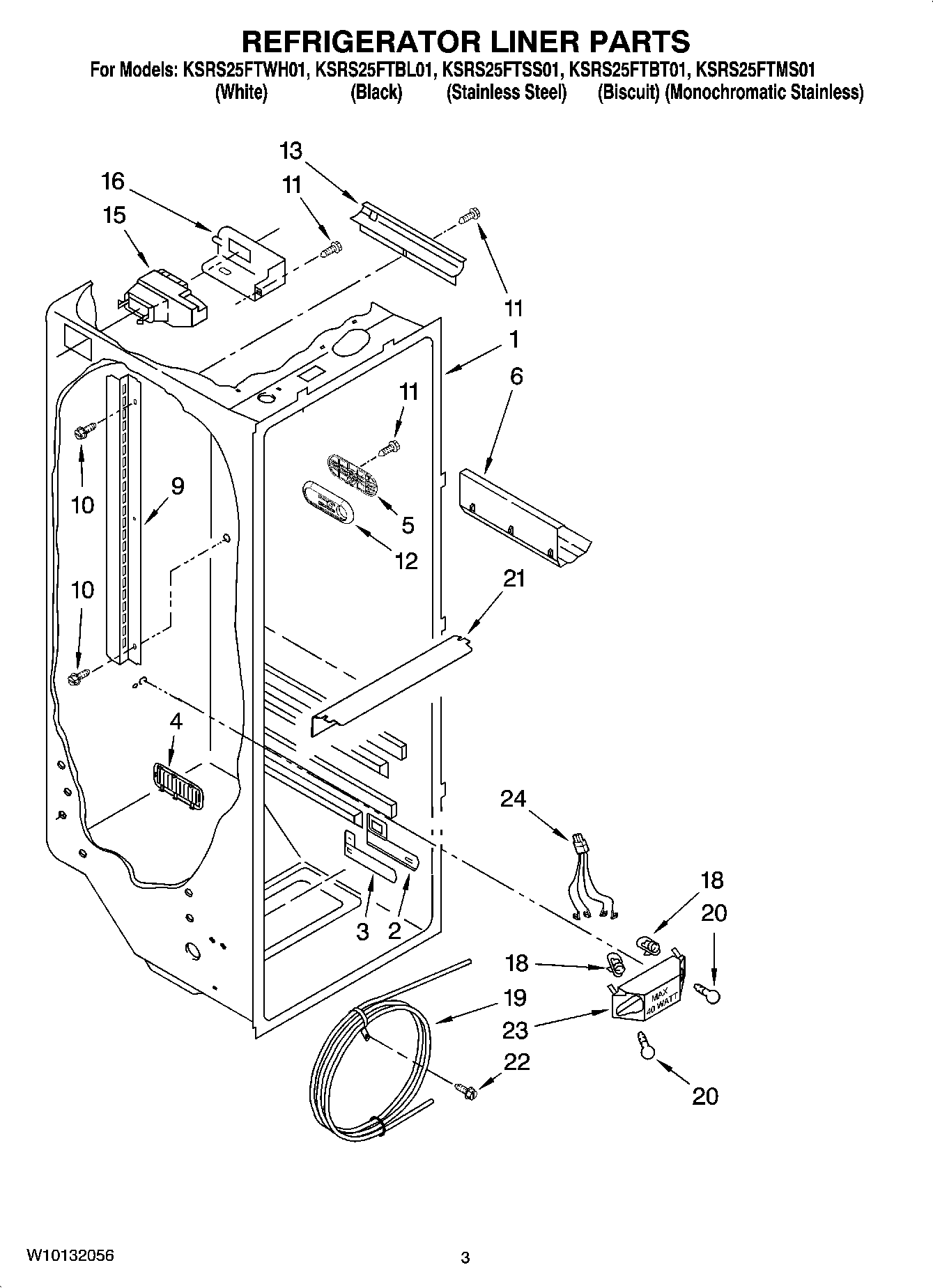

KSRS25FTBL01 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Escutcheon, Meat Pan Control
3	Slide Meat Pan Control
4	Louver
5	Slide, Door Control
6	W10777924 Whirlpool Refrigerator Wine Rack
9	Shelf Ladder
10	WP489478 Whirlpool Refrigerator Screw
11	W10759522 Whirlpool Screw
12	2301234 Whirlpool Refrigerator Control
13	2150331 Whirlpool Refrigerator Wire Cover
15	WP2216112 Whirlpool Damper Control Assembly
16	WP2212240 Whirlpool Refrigerator Cover
18	4387478 Whirlpool Refrigerator Light Socket
19	RESERVOIR
20	RANGE ONLY 40W 120V APPL BULB
21	Light Lens
22	Screw (2)
23	Bracket, Dual Crisper Light
24	2311637 Whirlpool Refrigerator Wire Harness
