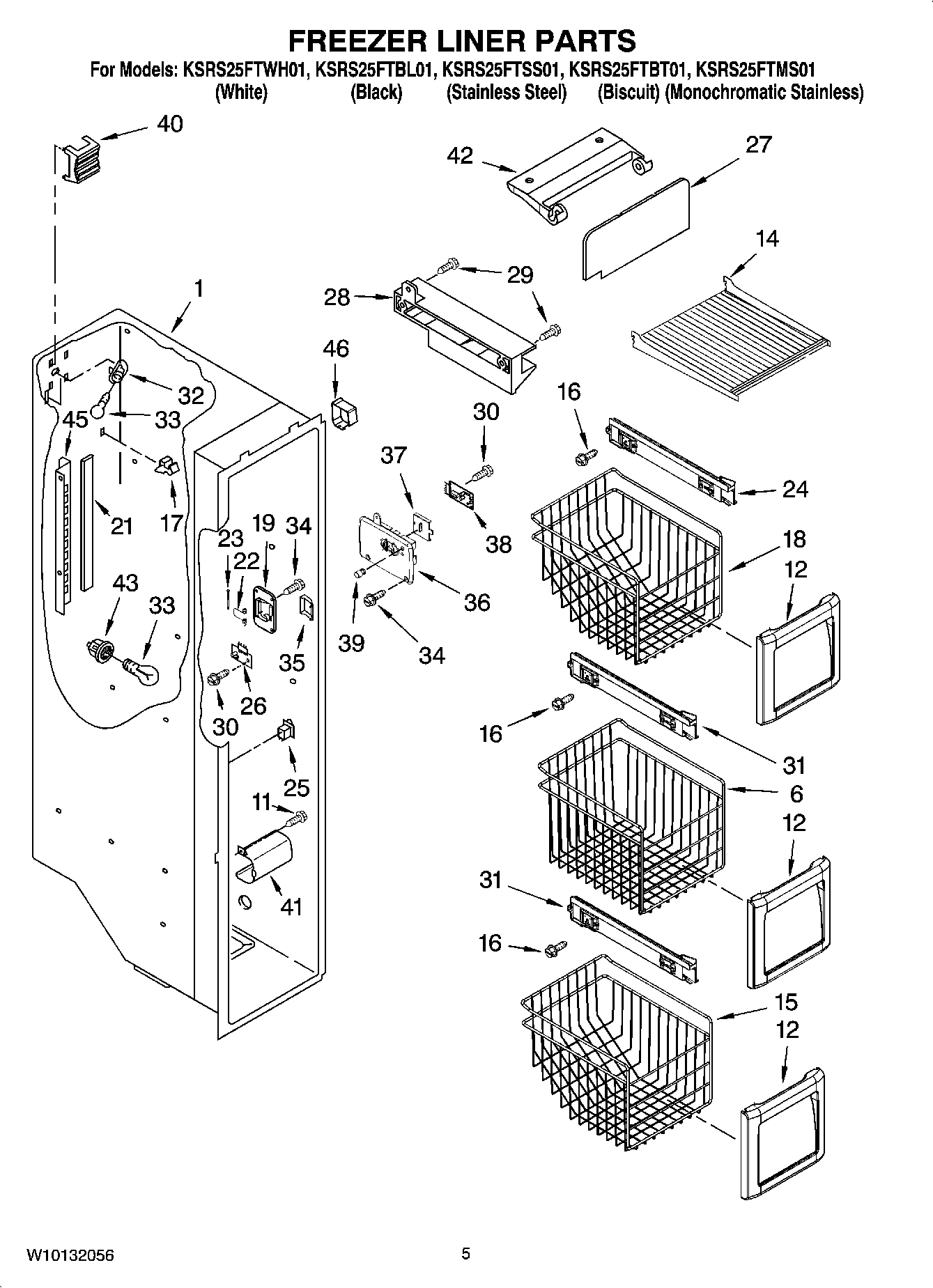

KSRS25FTBL01 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
6	Basket, Deep
11	W10142289 Whirlpool Air Conditioner Screw
12	Front, Assembly Basket
14	Shelf (2)
15	Basket, Sloped
16	Screw
17	2215823 Whirlpool Refrigerator Clip
18	Basket, Top
19	WP2198587 Whirlpool Refrigerator Cover
21	Gasket
22	WP2198635 Whirlpool Refrigerator Spring
23	WP2198634 Whirlpool Door Pin
24	Glide Assy, Basket Top (Left Side)
24	Glide Assy, Basket Top (Right Side)
25	W11457217 Whirlpool Refrigerator Rocker Switch Combination
26	W10757851-includeCORE Whirlpool Electronic Control+Core
27	WP2255720 Whirlpool Refrigerator Ice Maker Door
28	Slide, Ice Maker
29	WP489478 Whirlpool Refrigerator Screw
30	2006254 Whirlpool Refrigerator Screw
31	Glide Assy, Basket (Left Side)
31	Glide Assy, Basket (Right Side)
32	4387478 Whirlpool Refrigerator Light Socket
33	RANGE ONLY 40W 120V APPL BULB
34	WPW10142283 Whirlpool Refrigerator Screw
35	WP2198633 Whirlpool Refrigerator Flipper
36	Cover, Receiver
37	Slide, Ice Maker Shut Off
39	WP2198643 Whirlpool Refrigerator Lens
40	Light Shield
41	Light Lens
42	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
43	SOCKET
45	Ladder (Right Side)
45	Ladder (Left Side)
46	2303234 Whirlpool Refrigerator Shield
