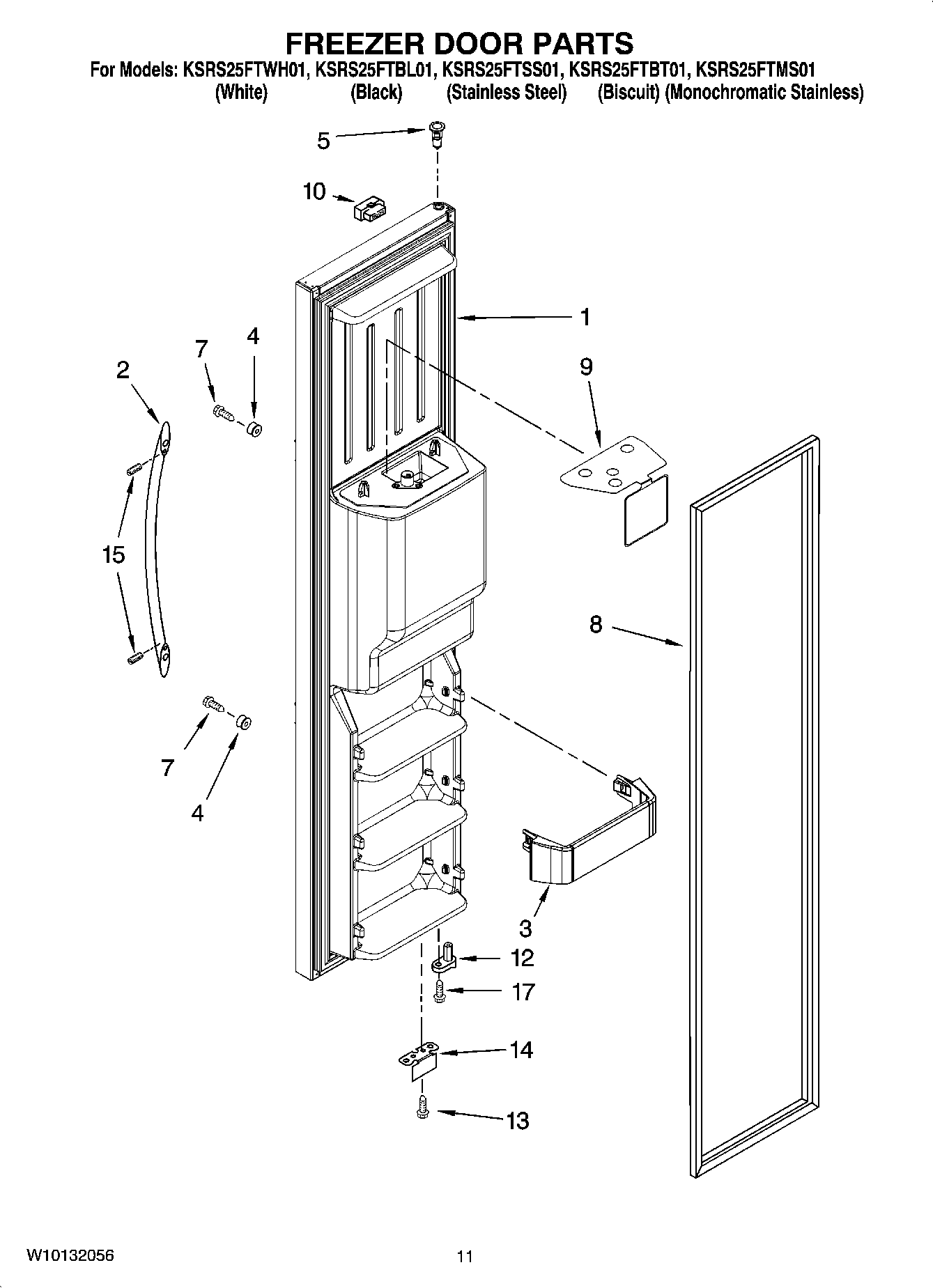

KSRS25FTBT01 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
2	Handle, Door (Stainless Steel)
2	WP2319727W Whirlpool Refrigerator Handle
2	WP2319727B Whirlpool Refrigerator Handle
2	Handle (Includes 4) (Biscuit)
3	Shelf Bin (3)
4	WPW10170540 Whirlpool Screw
5	Thimble, Top (For Stainless Steel Models)
5	WP2182181 Whirlpool Refrigerator Thimble
7	WP488163 Whirlpool Refrigerator Screw
8	2159074 Whirlpool Door Gasket Seal
8	2159082 Whirlpool Freezer Door Gasket Black
8	W10136735 Whirlpool Refrigerator Door Gasket
9	Safety Barrier
10	Connector
12	WP2223752 Whirlpool Refrigerator Door Cam
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
14	Bracket, Door Stop (Black)
15	WPW10010150 Whirlpool Refrigerator Screw
15	SCREW
17	Tube, Door
17	Wire Assembly, Freezer Door
17	WP3400012 Whirlpool Refrigerator Screw
17	Following Parts Not Illustrated
