KSRS25FTBT03 02 – REFRIGERATOR LINER PARTS

KSRS25FTBT03 02 – REFRIGERATOR LINER PARTS

Written by

in

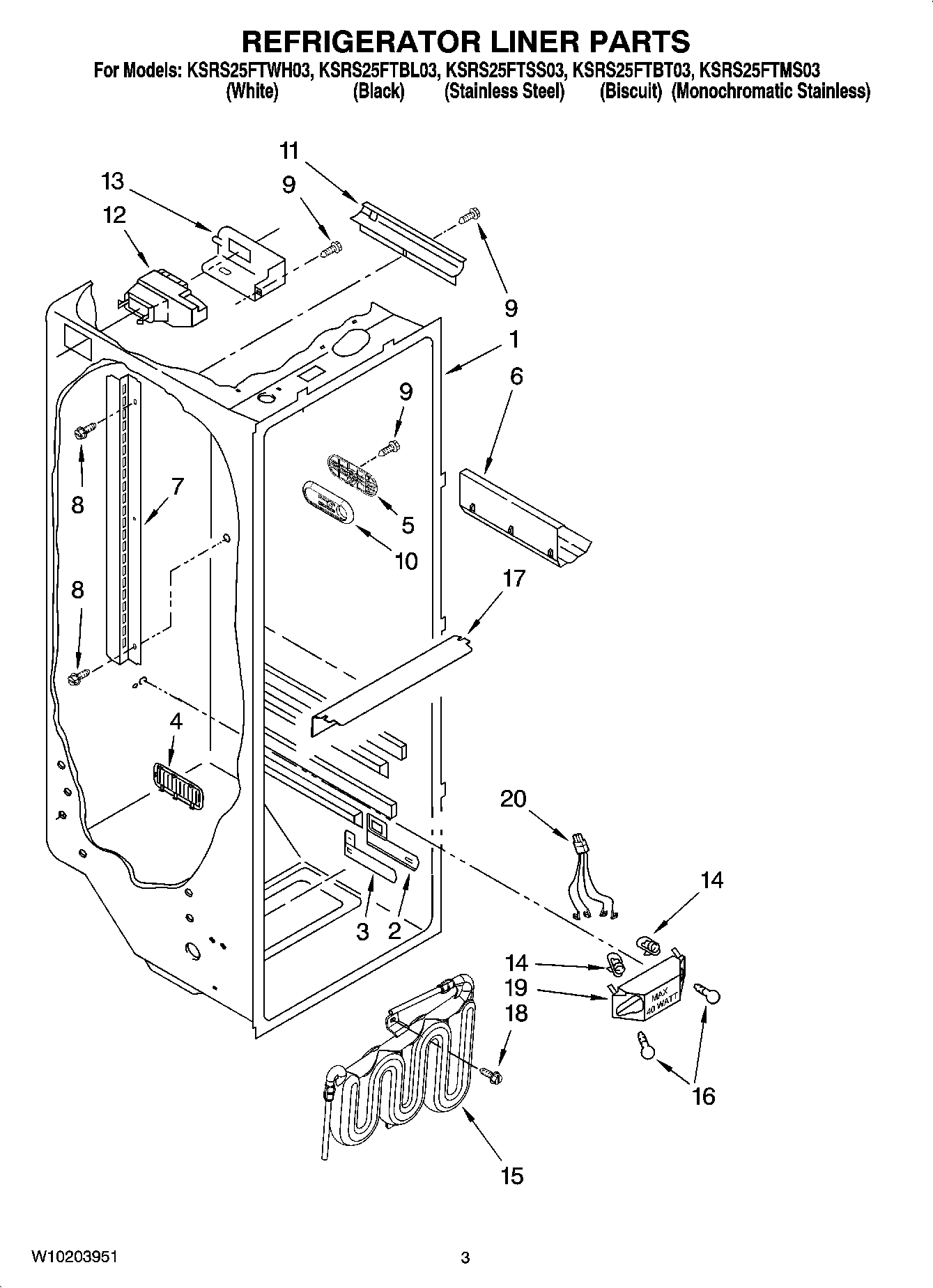

KSRS25FTBT03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2W10175967 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
5Slide, Door Control
6W10777924 Whirlpool Refrigerator Wine Rack
7Shelf Ladder
8WP489478 Whirlpool Refrigerator Screw
9W10759522 Whirlpool Screw
102301234 Whirlpool Refrigerator Control
112150331 Whirlpool Refrigerator Wire Cover
12Air Diffuser Assembly
13WP2212240 Whirlpool Refrigerator Cover
144387478 Whirlpool Refrigerator Light Socket
15RESERVOIR
16RANGE ONLY 40W 120V APPL BULB
17Light Lens
18Screw (2)
19Bracket, Dual Crisper Light
202311637 Whirlpool Refrigerator Wire Harness
