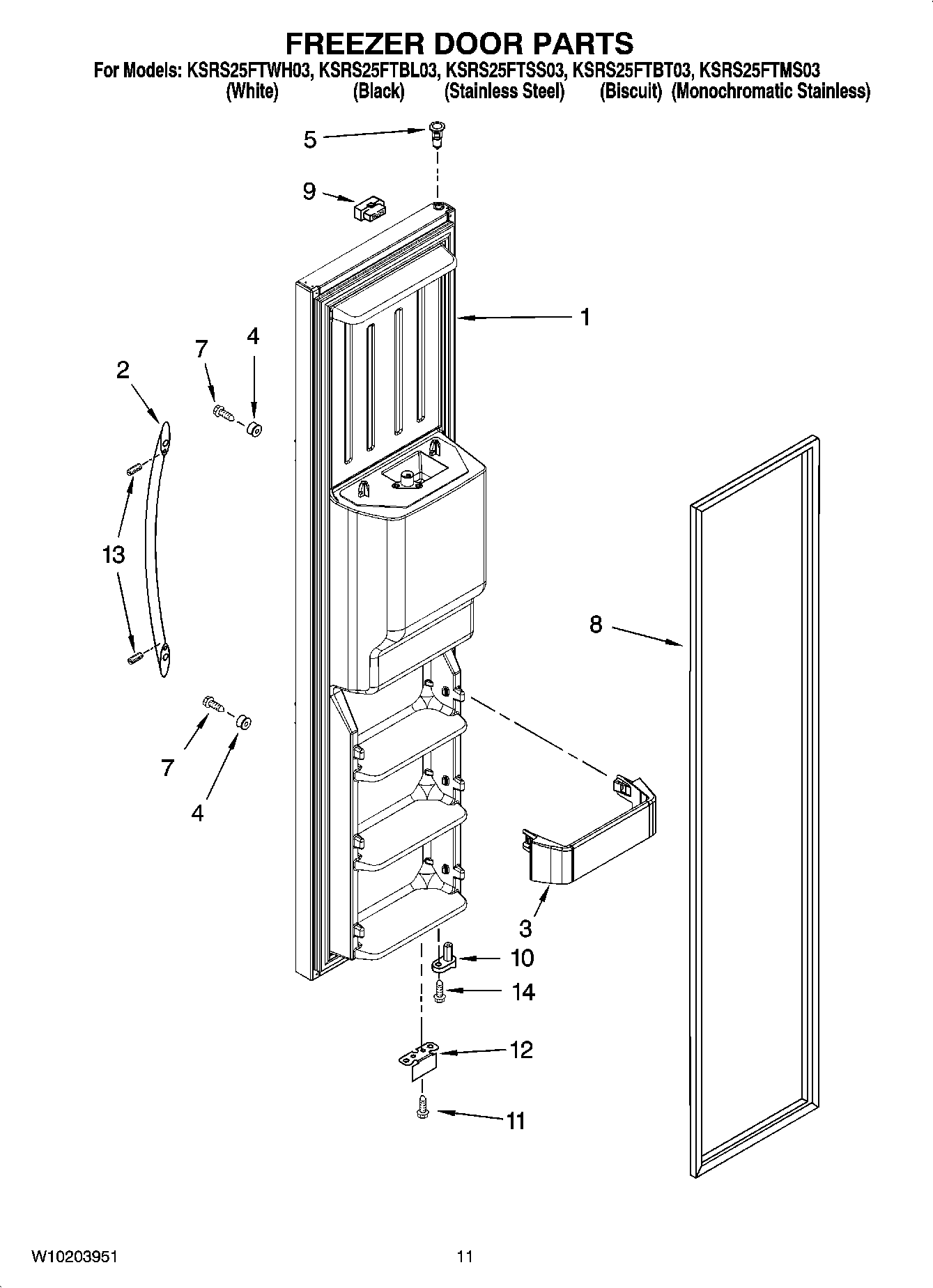

KSRS25FTBT03 07 – FREEZER DOOR PARTS

Products

Position	Product
	Wire Assembly, Freezer Door
	Tube, Door
	Following Parts Not Illustrated
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Monochromatic Stainless)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Stainless Steel)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	WP2319727B Whirlpool Refrigerator Handle
2	WP2319727W Whirlpool Refrigerator Handle
2	Handle, Door (Stainless Steel)
2	Handle (Includes 4) (Biscuit)
3	Trivet (3)
4	WPW10170540 Whirlpool Screw
5	WP2182181 Whirlpool Refrigerator Thimble
5	Thimble, Top (For Stainless Steel Models)
7	WP488163 Whirlpool Refrigerator Screw
8	W10136735 Whirlpool Refrigerator Door Gasket
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	Connector
10	WP2223752 Whirlpool Refrigerator Door Cam
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop (Chrome)
12	Bracket, Door Stop (Black)
13	WPW10010150 Whirlpool Refrigerator Screw
13	SCREW
14	WP3400012 Whirlpool Refrigerator Screw
