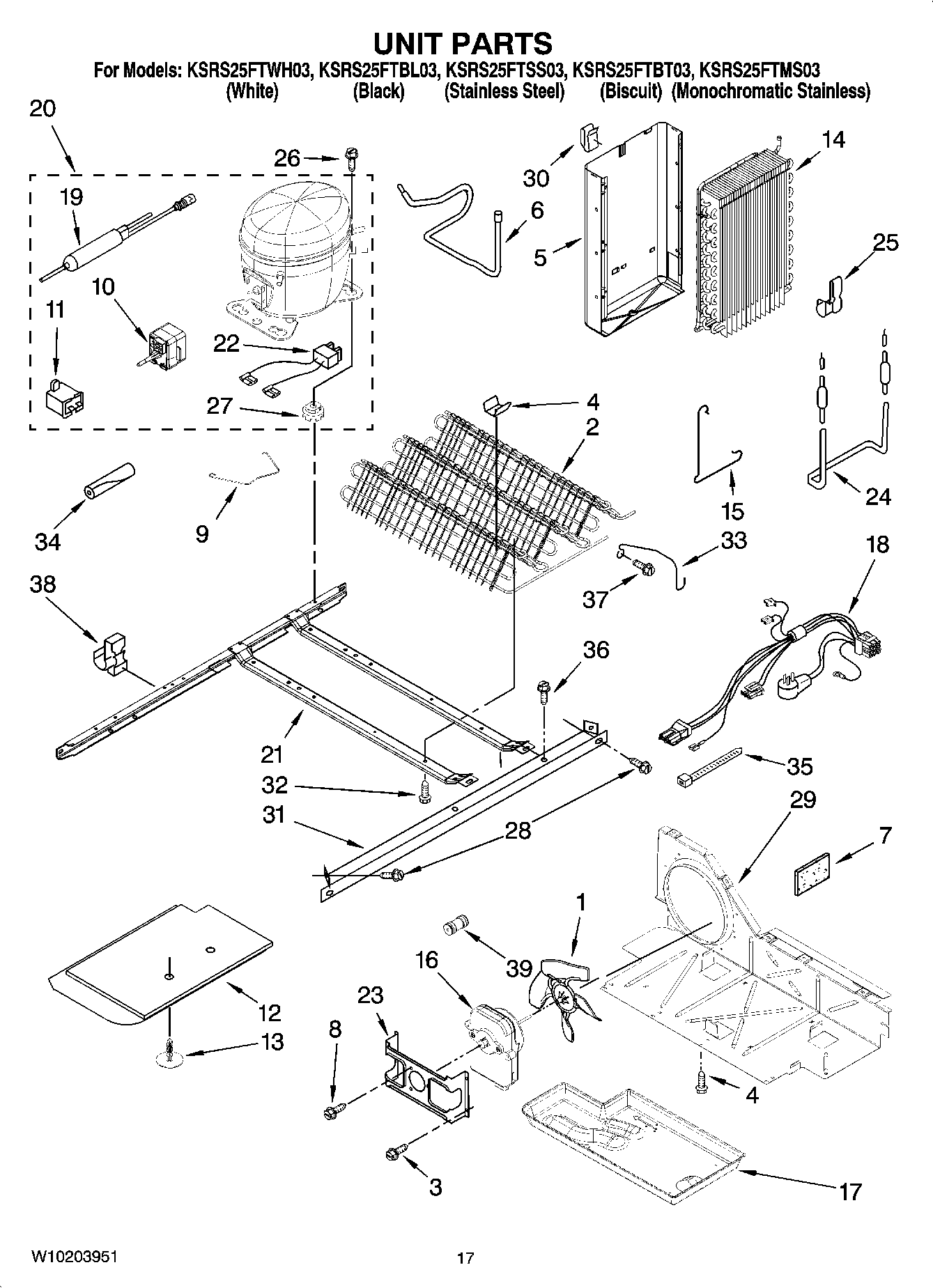

KSRS25FTBT03 11 – UNIT PARTS

Products

Position	Product
	978026 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 5.0 oz. (R-134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	Following Parts Not Illustrated and Optional Parts Not Included
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	W11458267 Whirlpool Refrigerator Fan Blade
2	2324712 Whirlpool Refrigerator Condenser
3	WP489464 Whirlpool Refrigerator Screw
4	W10683556 Whirlpool Refrigerator Clip
5	Heat Shield
6	WP2205765 Whirlpool Refrigerator Tube
7	W11553819 Whirlpool Refrigerator Insulation
8	WP8533993 Whirlpool Refrigerator Screw
9	Clip, Retaining
10	WP2319792 Whirlpool Refrigerator Start Device
11	WPW10662129 Whirlpool Refrigerator Run Capacitor
12	Unit Cover, Bottom
13	489396 Whirlpool Refrigerator Clip
14	WP2188823 Whirlpool Refrigerator Evaporator
15	Clamp
16	WP2188874 Whirlpool Refrigerator Condenser Motor
17	WPW10614158 Whirlpool Refrigerator Evaporator Tray
18	Harness, Unit
19	WPW10143759 Whirlpool Dryer Filter
20	W10139460 Whirlpool Refrigerator Compressor
21	2304904 Whirlpool Frame Assembly
22	WP2172890 Whirlpool Refrigerator Wire
23	WP2181929 Whirlpool Refrigerator Bracket
24	WP2323198 Whirlpool Refrigerator Heater
25	W11623163 Whirlpool Refrigerator Clip
27	876811 Whirlpool Grommet
27	WP4387558 Whirlpool Refrigerator Compressor Grommet
28	489340 Whirlpool Refrigerator Screw
29	W10896764 Whirlpool Refrigerator Air Baffle
30	Clip, Heat Shield
31	2305374 Whirlpool Refrigerator Unit Rail
32	W11544659 Whirlpool Refrigerator Screw
33	2260517 Whirlpool Fan Guard
34	SLEEVE
35	WPW10339879 Whirlpool Wire Tie
36	WP489427 Whirlpool Refrigerator Screw
37	WP489478 Whirlpool Refrigerator Screw
38	Clip, Wire & Tube
39	WPW10271543 Whirlpool Refrigerator Connector
