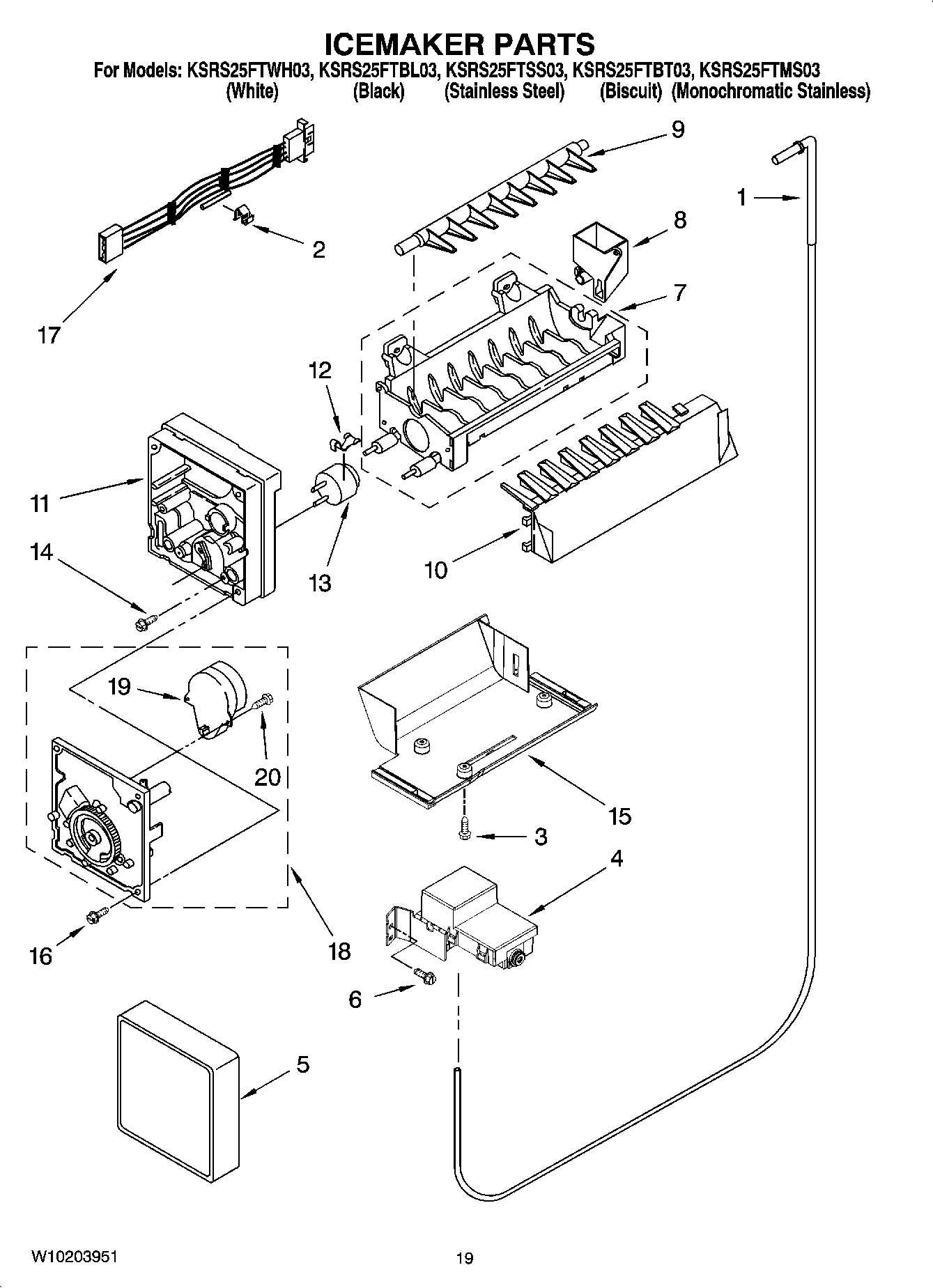

KSRS25FTBT03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSRS25FTBT03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSRS25FTBT03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL ARI101761A
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	8171357 Whirlpool Spray Nozzle
	PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
	PAINT, BULK (1 QT. GRAPHITE)
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	4210463RW Whirlpool Refrigerator Coil Brush
	CLEANER, (STAINLESS STEEL)
	WPL 8201803
	WPL ARI101759A
	WPL ARI101760A
	WP503695 Whirlpool Refrigerator Sealer
	833938 Whirlpool Refrigerator Terminal
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	4392901 Whirlpool Biscuit Spray Paint
	WPL ARI101762A
1	Fitting, Water Tube
2	WP628379 Whirlpool Refrigerator Clip
3	WP489478 Whirlpool Refrigerator Screw
4	WPW10159839 Whirlpool Refrigerator Inlet Valve
5	WPW10289690 Whirlpool Ice Maker Cover
6	WPW10141625 Whirlpool Refrigerator Screw Assembly
7	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
8	WPW10272168 Whirlpool Refrigerator Water Fill Cup
9	WP627843 Whirlpool Refrigerator Ejector Arm
10	W10297244 Whirlpool Refrigerator Arm Strip
11	WP2195914 Whirlpool Refrigerator Ice Maker Housing
12	WP2315522 Whirlpool Refrigerator Clip
13	WP627985 Whirlpool Icemaker Cycling Thermostat
14	8533917 Whirlpool Refrigerator Screw
15	BRACKET, ICEMAKER MOUNTING
16	WP681249 Whirlpool Screw Assembly
17	WP2187467 Whirlpool Refrigerator Wire Harness
19	8201515 Whirlpool Refrigerator Motor and Gear Module Kit
20	489136 Whirlpool Refrigerator Screw
100	2198597 Whirlpool Refrigerator Ice Maker
