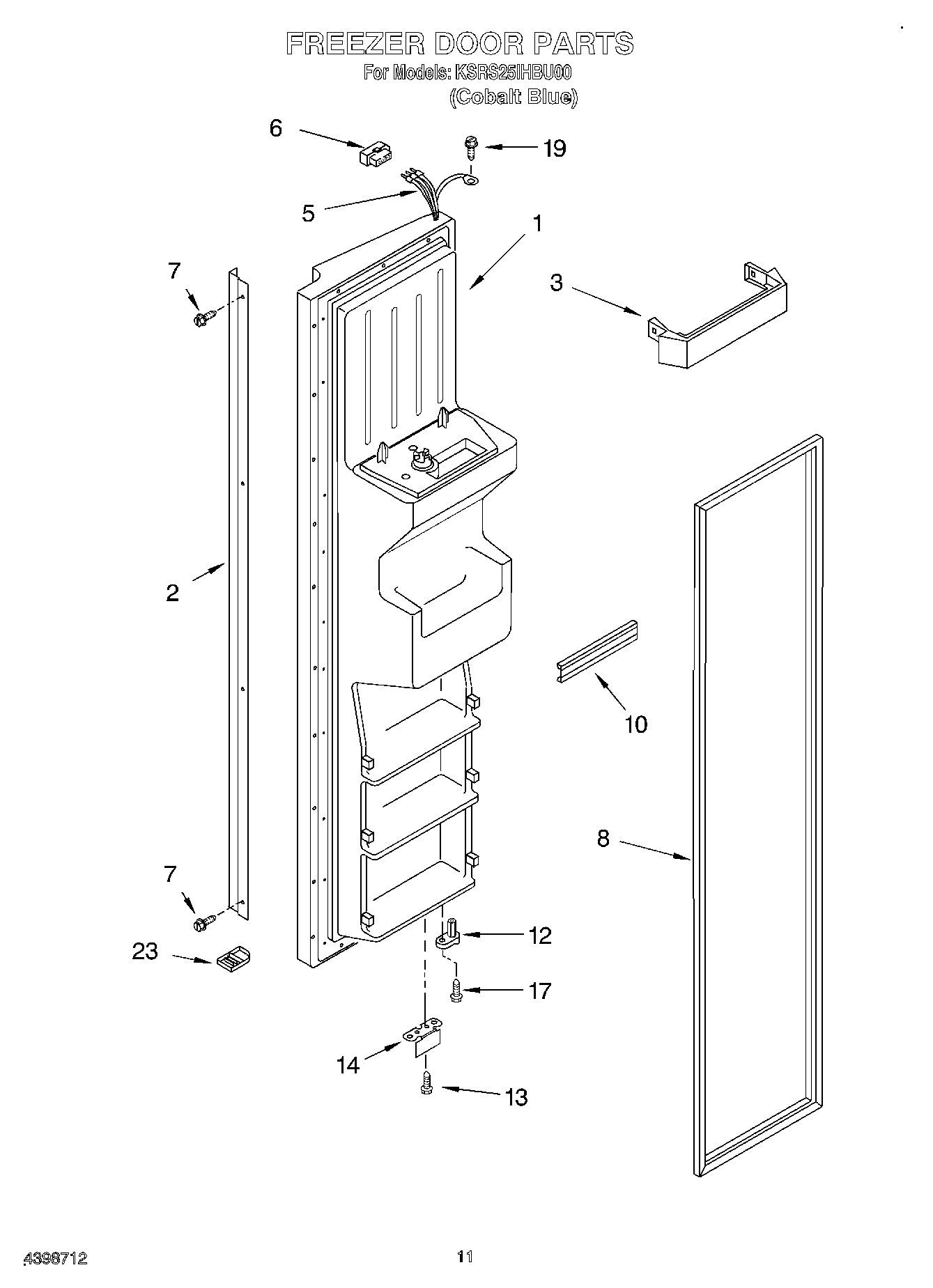

KSRS25IHBU00 07 – FREEZER DOOR

KSRS25IHBU00 07 – FREEZER DOOR

Written by

in

KSRS25IHBU00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle
3Shelf Bin (4)
5Dispenser Harness
6WP2154473 Whirlpool Refrigerator Connector
7Screw (4)
82159082 Whirlpool Freezer Door Gasket Black
10WPW10307490 Whirlpool Door Trim Assembly
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop
17WP3400012 Whirlpool Refrigerator Screw
19WP489128 Whirlpool Refrigerator Screw
23Endcap
