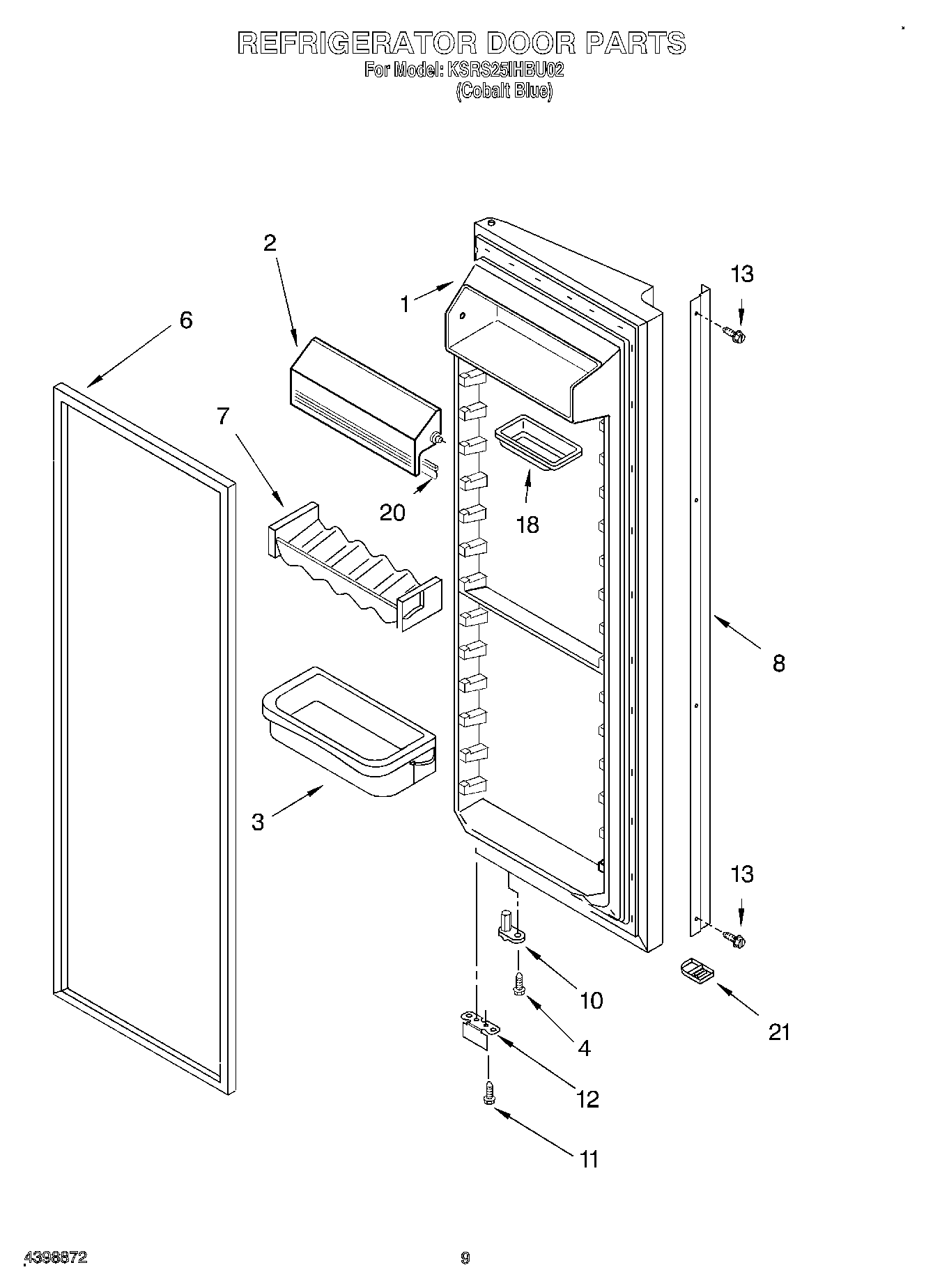

KSRS25IHBU02 06 – REFRIGERATOR DOOR

KSRS25IHBU02 06 – REFRIGERATOR DOOR

Written by

in

KSRS25IHBU02 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item No.6)
2WP2313637 Whirlpool Cutting Grid Assembly
3Shelf Bin (3)
4WP3400012 Whirlpool Refrigerator Screw
62159083 Whirlpool Gasket Door
7Beverage Holder
8Handle
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop
13Screw (4)
18Butter Tray
20Gasket, Door Compartment
21Endcap
