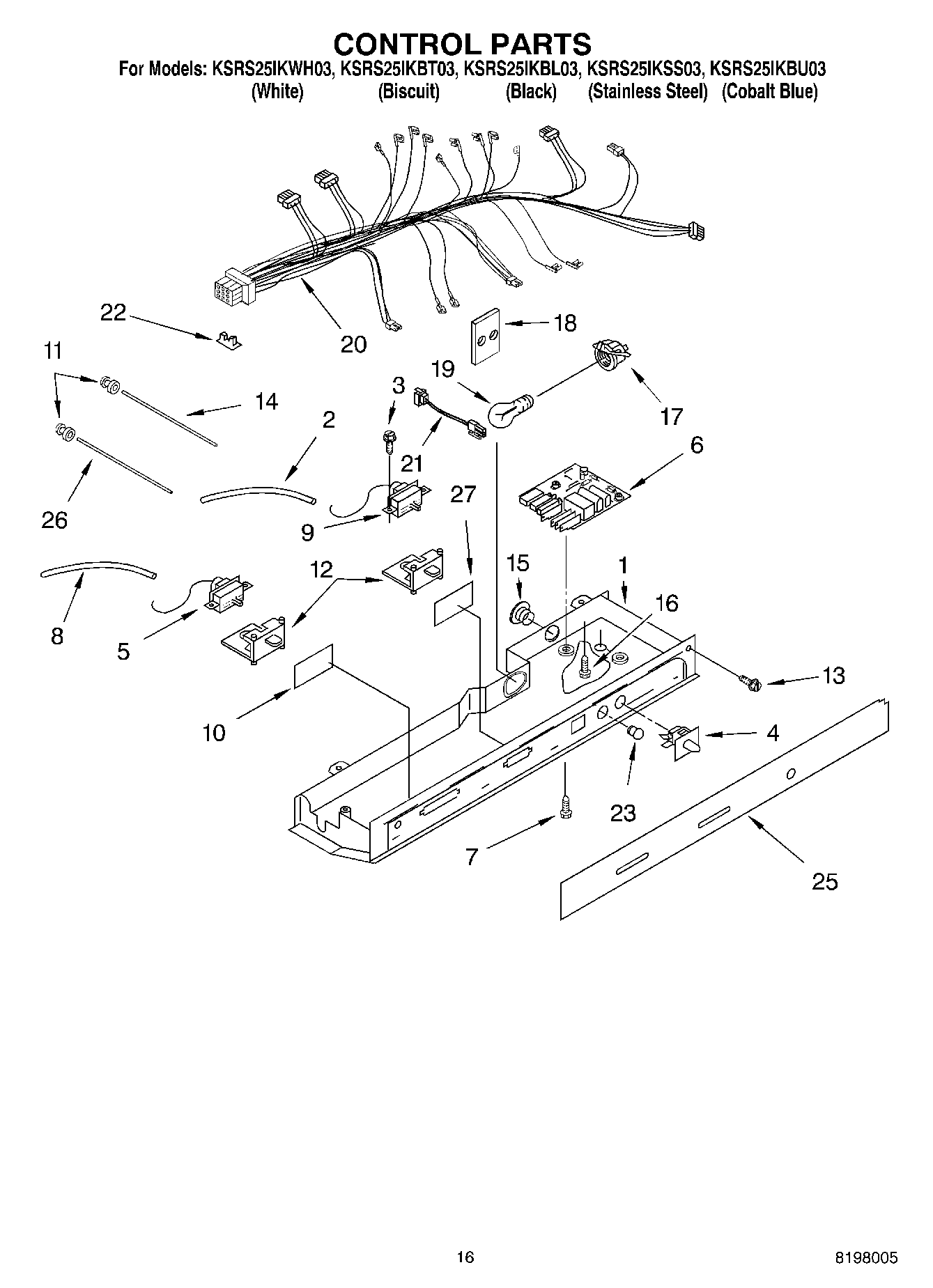

KSRS25IKBT03 10 – CONTROL PARTSadmin2025-04-26T11:51:19+00:00KSRS25IKBT03 10 – CONTROL PARTS ProductsPositionProduct1Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5WP2182770 Whirlpool Refrigerator Thermostat6WPW10366605-includeCORE Whirlpool WPW10366605 Refrigerator Electronic Control Board + Core7489392 Whirlpool Refrigerator Screw9WP2161460 Whirlpool Refrigerator Thermostat102172940 Whirlpool Window11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic15940014 Whirlpool Refrigerator Primary Button Plug16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19RANGE ONLY 40W 120V APPL BULB20Harness, Control Box21W10853646 Whirlpool Indicator Light22CLIP, WIRING23COVER, LIGHT LENS25Escutcheon, Control Box26Light Bar (FC)27Window
