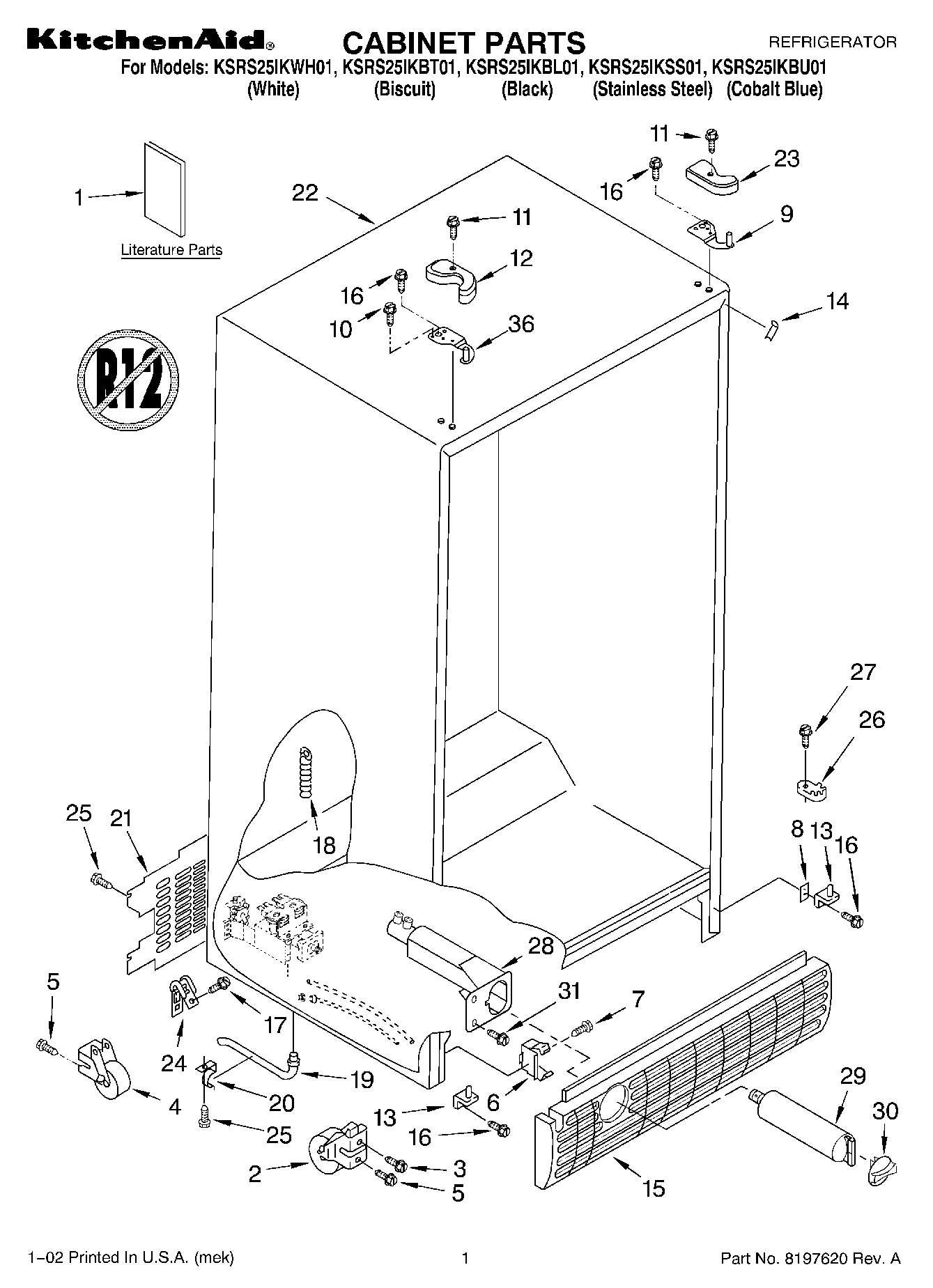

KSRS25IKSS01 01 – CABINET, LITERATURE

KSRS25IKSS01 01 – CABINET, LITERATURE

Written by

in

KSRS25IKSS01 01 – CABINET, LITERATURE

Products

PositionProduct
Literature Parts (Icemaker)
Refrigerator
1Modular Icemaker Service Sheet
1LITERATURE PARTS (Use & Care Guide)
1LITERATURE PARTS (Service & Wiring Sheet)
1LITERATURE PARTS (Energy Guide)
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489478 Whirlpool Refrigerator Screw
8WP2181911 Whirlpool Refrigerator Shim
8WP2209697 Whirlpool Refrigerator Shim
9WP2203771 Whirlpool Refrigerator Door Hinge
10WP489128 Whirlpool Refrigerator Screw
11WP8281227 Whirlpool Screw
12WP2203407B Whirlpool Refrigerator Cover
12WP2203407W Whirlpool Refrigerator Cover
122203407T Whirlpool Refrigerator Cover
12Hinge Cover (Cobalt Blue)
138201707 Whirlpool Door Hinge
14Filler, Wrapper (White)
14Filler, Wrapper (Cobalt Blue)
14Filler, Wrapper (Biscuit)
14Filler, Wrapper (Black)
15Grille (Cobalt Blue)
15W10803964 Whirlpool Grille Assembly
15Grille (Biscuit)
16WP489497 Whirlpool Screw
17WP489464 Whirlpool Refrigerator Screw
18W11566763 Whirlpool Fitting
19WP1108438 Whirlpool Refrigerator Extension
20WP1108439 Whirlpool Refrigerator Clip
21WP2188755 Whirlpool Rear Panel
22Cabinet (Not A Serviceable Part)
23Hinge Cover (Biscuit)
23Hinge Cover (Cobalt Blue)
23WP2203408W Whirlpool Refrigerator Cover
23WP2203408B Whirlpool Refrigerator Cover
24549193 Whirlpool Refrigerator Power Clamp
26WPW10329686 Whirlpool Door Cam Black
27WP489483 Whirlpool Screw
28WP2186443 Whirlpool Water Filter Housing
29EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
30Cap, Water Filter
30WP2186494W Whirlpool Water Filter Cap
30WP2186494B Whirlpool Refrigerator Filter Cap
30WP2186494T Whirlpool Water Filter Cap
31WP489500 Whirlpool Refrigerator Screw
36WP2203770 Whirlpool Refrigerator Door Hinge
