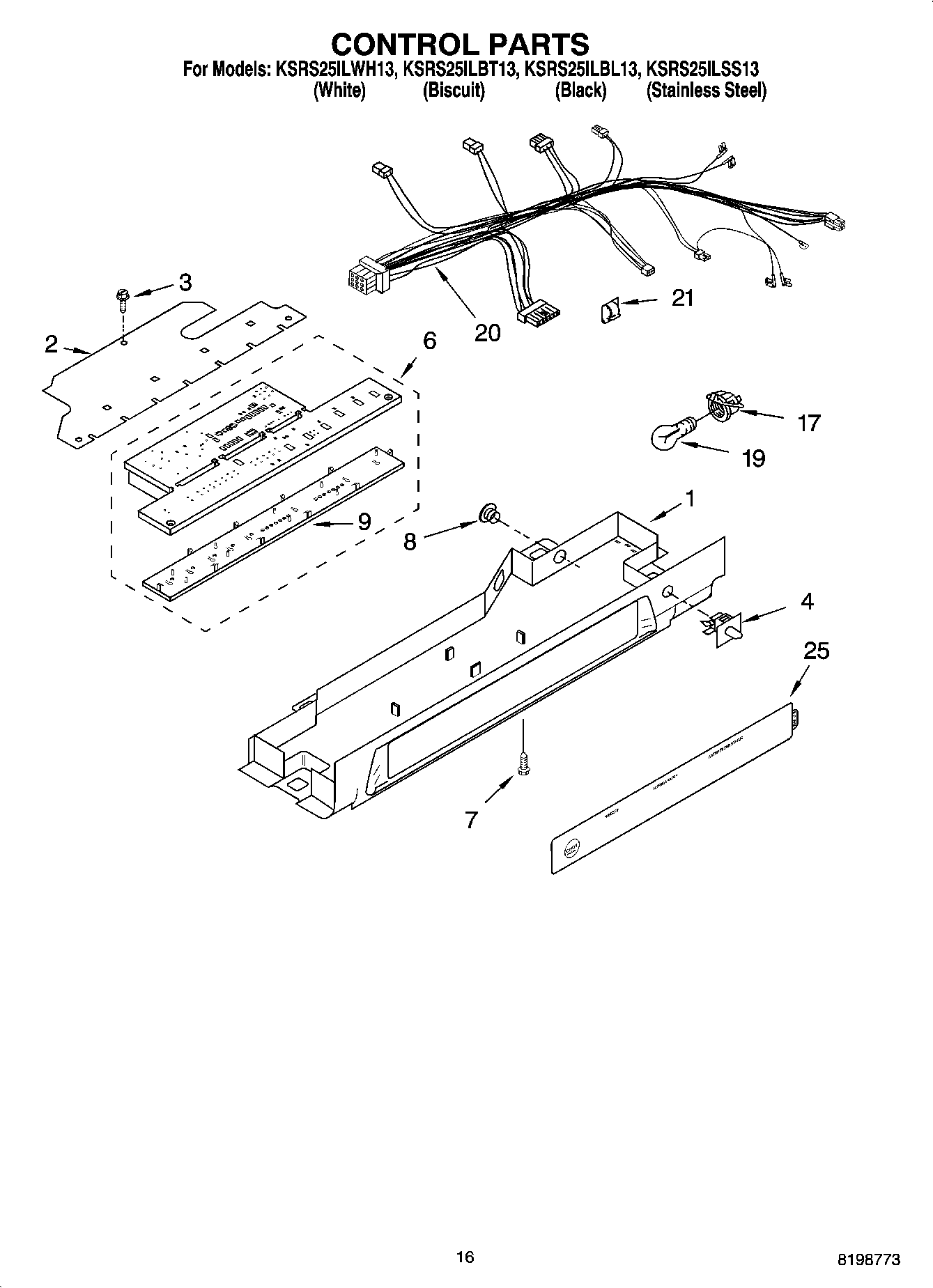

KSRS25ILBL13 10 – CONTROL PARTS

Products

PositionProduct
1Control Box
2Cover, Ctrl Box
3WP3196557 Whirlpool Screw
4WP2149705 Whirlpool Refrigerator Door Switch
6Control Board
7WP488488 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9Insert, Control Board
174387478 Whirlpool Refrigerator Light Socket
19RANGE ONLY 40W 120V APPL BULB
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
25Overlay, Control Box
