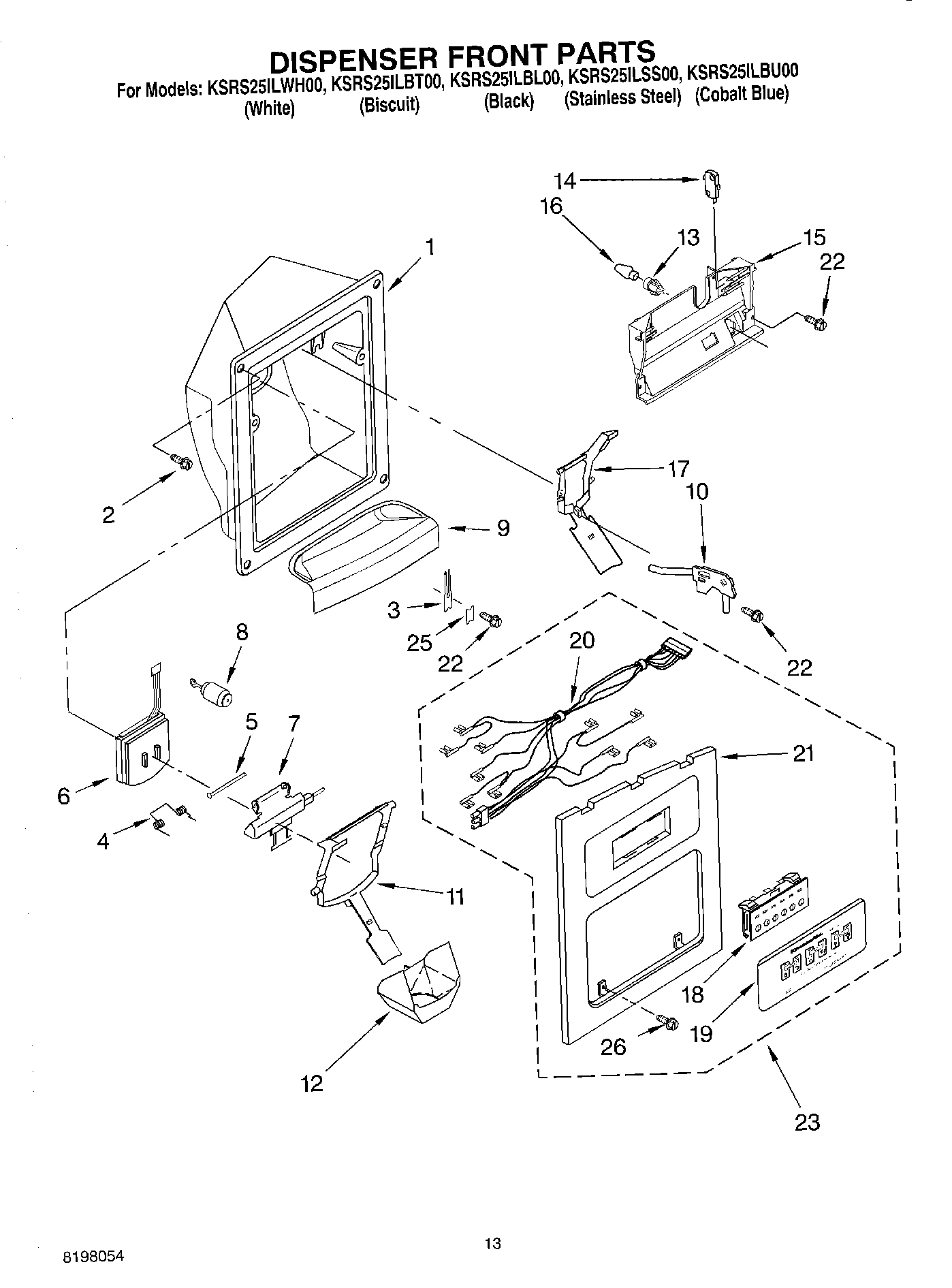

KSRS25ILSS00 08 – DISPENSER FRONT PARTS

KSRS25ILSS00 08 – DISPENSER FRONT PARTS

Written by

in

KSRS25ILSS00 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing, Dispenser (Not Serviced)
2WP3196175 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9Grille, Overflow (White)
9Grille, Overflow (Biscuit)
9WP2207109B Whirlpool Refrigerator Grille
9Grille, Overflow
108201537 Whirlpool Water Tubing Assembly
11Lever, Ice Dispenser (Black (Storm Grey Pad))
11Lever, Ice Dispenser
11Lever, Ice Dispenser (White (White Shadow Pad))
11Lever, Ice Dispenser (Biscuit (Almond Shadow Pad))
12WP2180224 Whirlpool Dispenser Funnel Guide
132180200 Whirlpool Refrigerator Socket
14WP2162361 Whirlpool Switch
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP22002263 Whirlpool Dryer 10W Light Bulb
17Lever, Water Dispenser
17WPW10152858 Whirlpool Refrigerator Dispenser Arm
18Switch Assembly (Not Available, Order 23)
19Overlay, Front Cover (Not Available, Order 23)
202187406 Whirlpool Refrigerator Wire Harness
21Front Cover, Housing (Not Available, Order 23)
22WP3400906 Whirlpool Refrigerator Screw
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (White)
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Biscuit)
23Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
23Front Cover Assembly (Includes Items 18, 19, 20 & 21)
25WP2195051 Whirlpool Refrigerator Clip
26WP3400065 Whirlpool Refrigerator Screw
