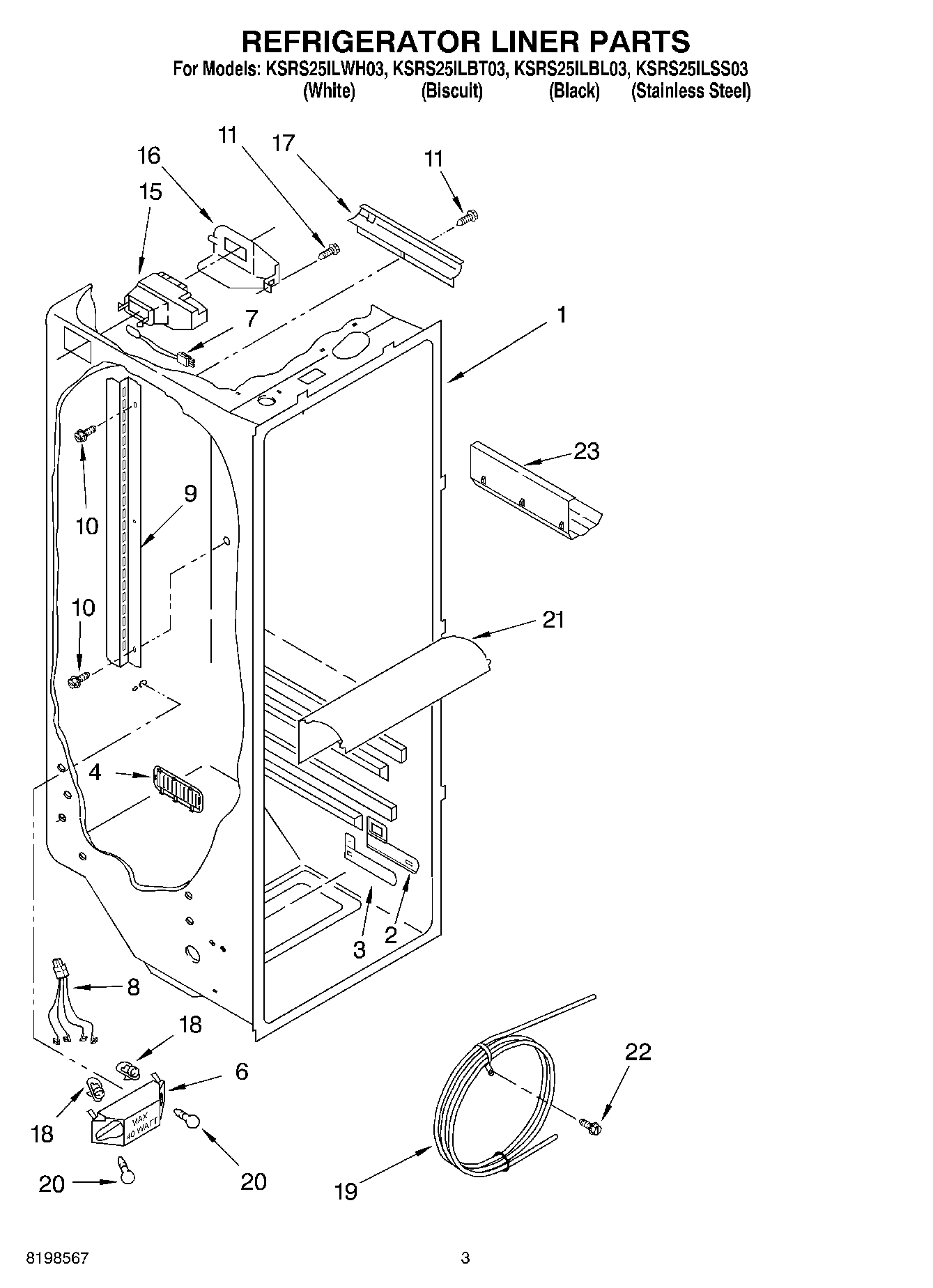

KSRS25ILSS03 02 – REFRIGERATOR LINER PARTS

KSRS25ILSS03 02 – REFRIGERATOR LINER PARTS

Written by

in

KSRS25ILSS03 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
6Bracket, Dual Crisper Light
7WP2188819 Whirlpool Thermistor
82311637 Whirlpool Refrigerator Wire Harness
9Ladder, Shelf
10WP488729 Whirlpool Refrigerator Door Screw
11W10759522 Whirlpool Screw
15WP2216112 Whirlpool Damper Control Assembly
16WP2212240 Whirlpool Refrigerator Cover
172150331 Whirlpool Refrigerator Wire Cover
184387478 Whirlpool Refrigerator Light Socket
19WP2256126 Whirlpool Refrigerator Reservoir
20RANGE ONLY 40W 120V APPL BULB
21Light Lens
22Screw (2)
23W10777924 Whirlpool Refrigerator Wine Rack
