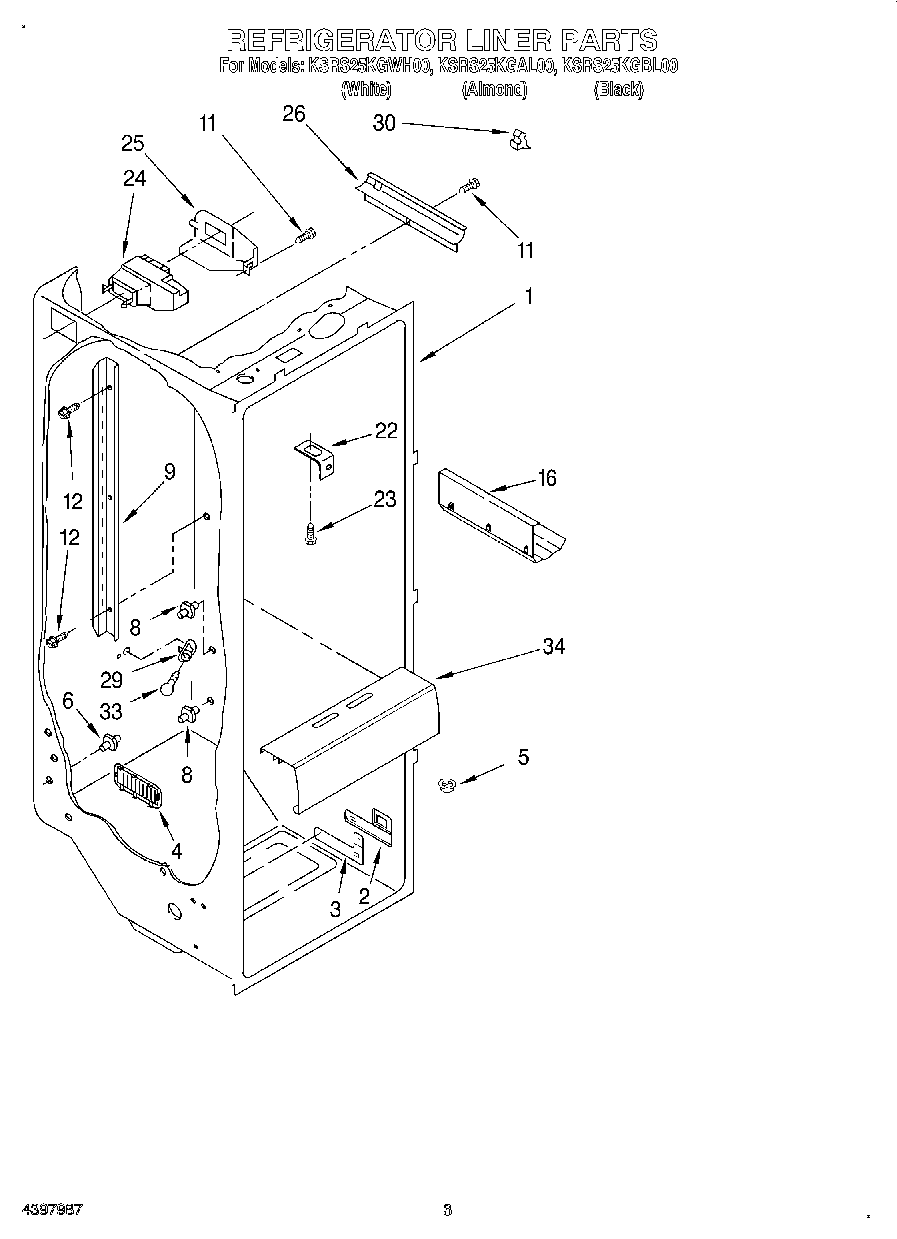

KSRS25KGAL00 02 – REFRIGERATOR LINER

KSRS25KGAL00 02 – REFRIGERATOR LINER

Written by

in

KSRS25KGAL00 02 – REFRIGERATOR LINER

Products

PositionProduct
1Liner (Not A Serviceable Part)
22194744 Whirlpool Refrigerator Escutcheon
32182757 Whirlpool Refrigerator Slide
4Louver
52171846 Whirlpool Refrigerator Release Valve
64388539 Whirlpool Refrigerator Shelf Stud
84388538 Whirlpool Refrigerator Stud Shelf Kit (White)
9Ladder, Shelf
11W10759522 Whirlpool Screw
12WP488729 Whirlpool Refrigerator Door Screw
16W10777924 Whirlpool Refrigerator Wine Rack
22WP2256085 Whirlpool Refrigerator Retainer
23WP488488 Whirlpool Refrigerator Screw
24WP2209751 Whirlpool Refrigerator Air Diffuser Assembly
25WP2212240 Whirlpool Refrigerator Cover
262150331 Whirlpool Refrigerator Wire Cover
294387478 Whirlpool Refrigerator Light Socket
302215823 Whirlpool Refrigerator Clip
33RANGE ONLY 40W 120V APPL BULB
342198479 Whirlpool Refrigerator Light Lens
