KSRS25KGAL00 09 – UNIT, LIT/OPTIONAL

KSRS25KGAL00 09 – UNIT, LIT/OPTIONAL

Written by

in

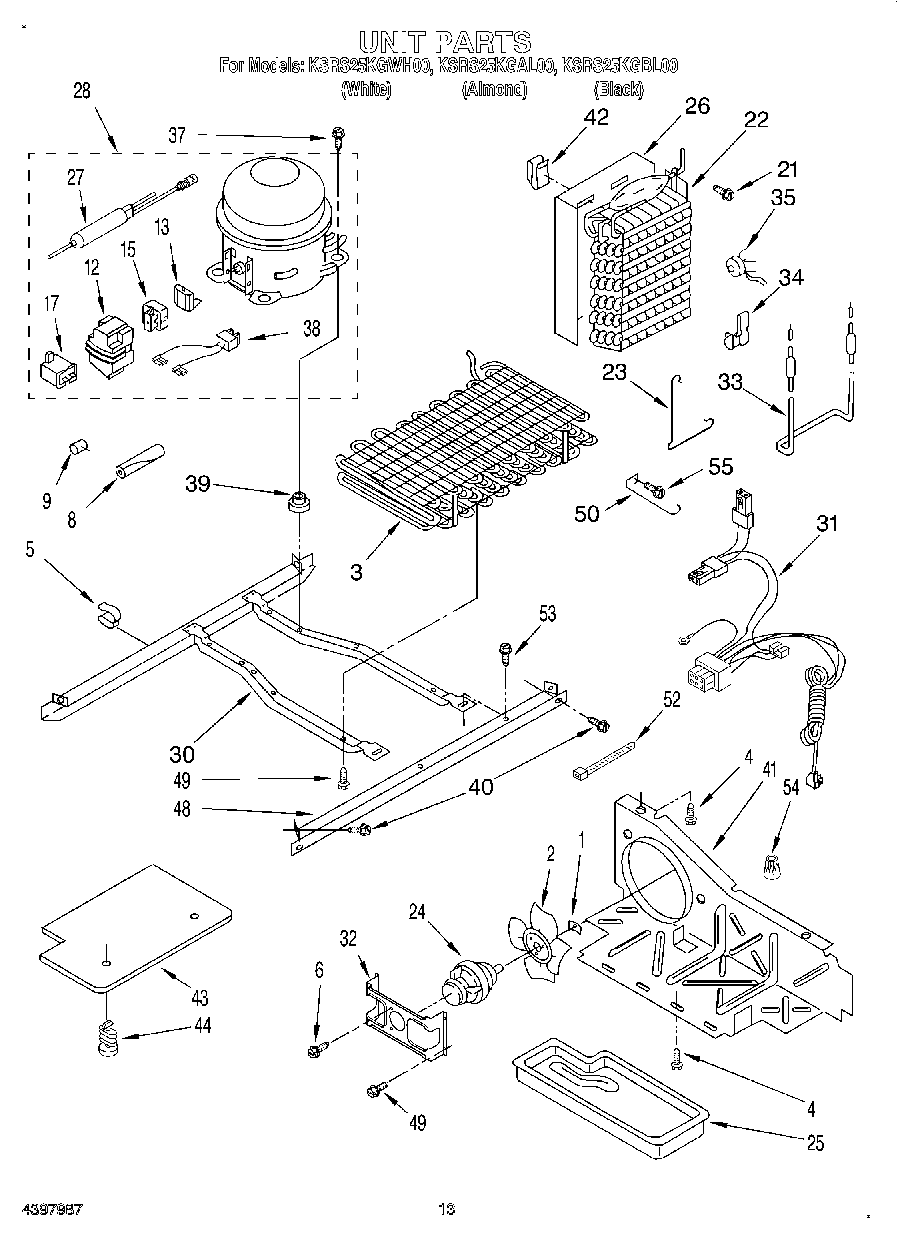

KSRS25KGAL00 09 – UNIT, LIT/OPTIONAL

Products

PositionProduct
Torx Key
WPL LIT2186572
WPL LIT2186479
Modular Icemaker Service Sheet
WPL LIT2186578
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire
6681390 Whirlpool Refrigerator Screw
8SLEEVE
9WP2158826 Whirlpool Refrigerator Dampener
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP2183456 Whirlpool Refrigerator Overload
15W10920279 Whirlpool Refrigerator Start Relay
17Capacitor
21WP489478 Whirlpool Refrigerator Screw
22Evaporator
23Clamp
24W10822259 Whirlpool Refrigerator Condenser Fan Motor
25Tray, Evaporator
26Heat Shield
27W10843121 Whirlpool Refrigerator Tube
28876765 Whirlpool Primary Mounting Kit Refrigerator
28W10309994 Whirlpool Refrigerator Compressor
302304904 Whirlpool Frame Assembly
31Harness, Intermediate
32WP2181929 Whirlpool Refrigerator Bracket
33WP2323198 Whirlpool Refrigerator Heater
34Clip
35WPW10225581 Whirlpool Refrigerator Defrost Thermostat
38WP2172890 Whirlpool Refrigerator Wire
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41W10896764 Whirlpool Refrigerator Air Baffle
42Clip, Heat Shield
43Unit Cover, Bottom
44489396 Whirlpool Refrigerator Clip
482305374 Whirlpool Refrigerator Unit Rail
49Screw, 8 x 3/8
50Guard, Fan
52WPW10339879 Whirlpool Wire Tie
53WP489427 Whirlpool Refrigerator Screw
54Wire Connector
55350956 Whirlpool Spray Assembly
5572017 Whirlpool Appliance Touch-Up Paint White
55799344 Whirlpool Refrigerator Paint
55WP72107 Whirlpool Touchup
55511873 Whirlpool Refrigerator Paint
55WPL 799833
55WPW10141625 Whirlpool Refrigerator Screw Assembly
55350942 Whirlpool Spray Paint
55212643 Whirlpool Refrigerator Permagum Sealer
55350930 Whirlpool White Spray Paint
55VALVE, ACCESS (5/8“)
55Almond (Uncut)
55606755 Whirlpool Refrigerator Bag
55WPW10312300 Whirlpool Refrigerator Ice Container
55WP978025 Whirlpool Refrigerator Valve
55VALVE, ACCESS (1/2“)
55WP542638 Whirlpool Refrigerator Grease
55CEMENT, ALUMILASTIC (1 1/4 OZ.)
55Enamel, Black (1 Qt. Uncut)
55WPL 876029
55W11729596 Whirlpool Ice Maker Field Install Kit
55978027 Whirlpool Refrigerator Primary Valve
55WP505587 Whirlpool Refrigerator Sealer
55285006 Whirlpool Spray
5572032 Whirlpool Touch Up Paint Black
55978026 Whirlpool Refrigerator Primary Valve
55876764 Whirlpool Refrigerator Primary Valve
55WP503695 Whirlpool Refrigerator Sealer
55833938 Whirlpool Refrigerator Terminal
55TAPE, VINYL (3/4 X 108“)
55876370 Whirlpool Refrigerator Insulation
55978030 Whirlpool Refrigerator Valve
