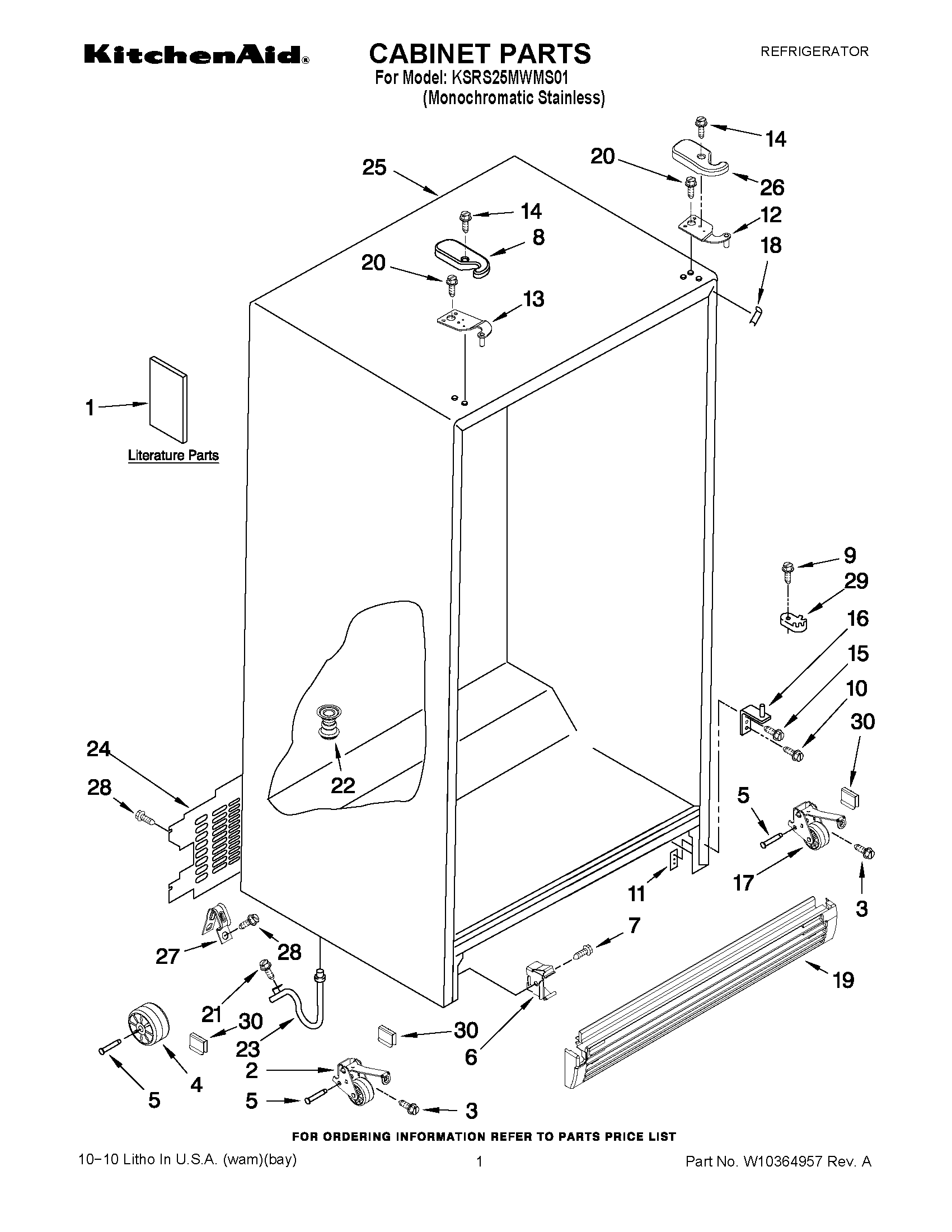

KSRS25MWMS01 01 – CABINET PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	ENERGY LABEL
1	SERVICE & WIRING SHEET
2	WPW10304660 Whirlpool Wheel Assembly
3	WP489427 Whirlpool Refrigerator Screw
4	WPW10475495 Whirlpool Roller Assembly
5	W11594405 Whirlpool Axle
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	Hinge Cover (RC) (Apollo Grey)
9	WP489483 Whirlpool Screw
10	W10856122 Whirlpool Refrigerator Screw
11	WP2304249 Whirlpool Refrigerator Plate
12	HINGE TOP (RC)
13	HINGE TOP (FC)
14	WP8281227 Whirlpool Screw
15	WP489497 Whirlpool Screw
16	HINGE BOTTOM
17	WPW10304659 Whirlpool Wheel Assembly
18	W10851579 Whirlpool Refrigerator Filler
19	2198470AP Whirlpool Refrigerator Grille
21	WP489464 Whirlpool Refrigerator Screw
22	W11566763 Whirlpool Fitting
23	W11512417 Whirlpool Drain Connector
24	WP2188755 Whirlpool Rear Panel
25	CABINET (NOT A SERVICEABLE PART)
26	Hinge Cover (FC) (Apollo Grey)
27	549193 Whirlpool Refrigerator Power Clamp
29	WPW10329686 Whirlpool Door Cam Black
30	WP2174706 Whirlpool Refrigerator Pin Hitch
