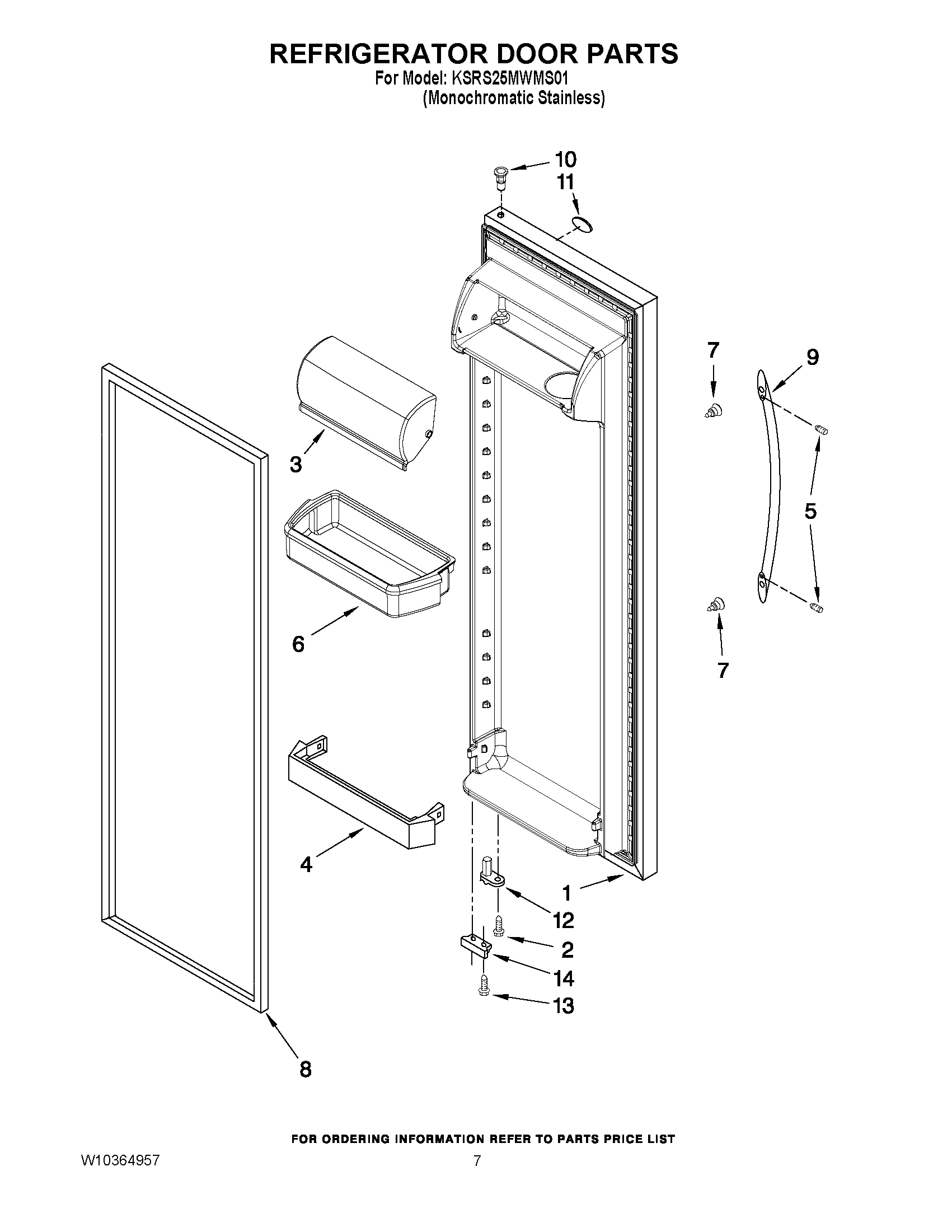

KSRS25MWMS01 06 – REFRIGERATOR DOOR PARTS

KSRS25MWMS01 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSRS25MWMS01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ITEM No.8) (MONO STAINLESS)
2WP3400012 Whirlpool Refrigerator Screw
3Door, Compartment
4WP2309941 Whirlpool Refrigerator Door Bar Trim
5SCREW
6WPW10321304 Whirlpool Refrigerator Door Shelf Bin
7WPW10170540 Whirlpool Screw
8WPW10136734 Whirlpool Refrigerator Door Gasket
9Handle, Door (Stainless Steel)
10WP2182181 Whirlpool Refrigerator Thimble
11WPW10243391 Whirlpool Refrigerator Nameplate
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14BRACKET, DOOR STOP (SILVER)
