KSRS25MWMS02 07 – FREEZER DOOR PARTS

KSRS25MWMS02 07 – FREEZER DOOR PARTS

Written by

in

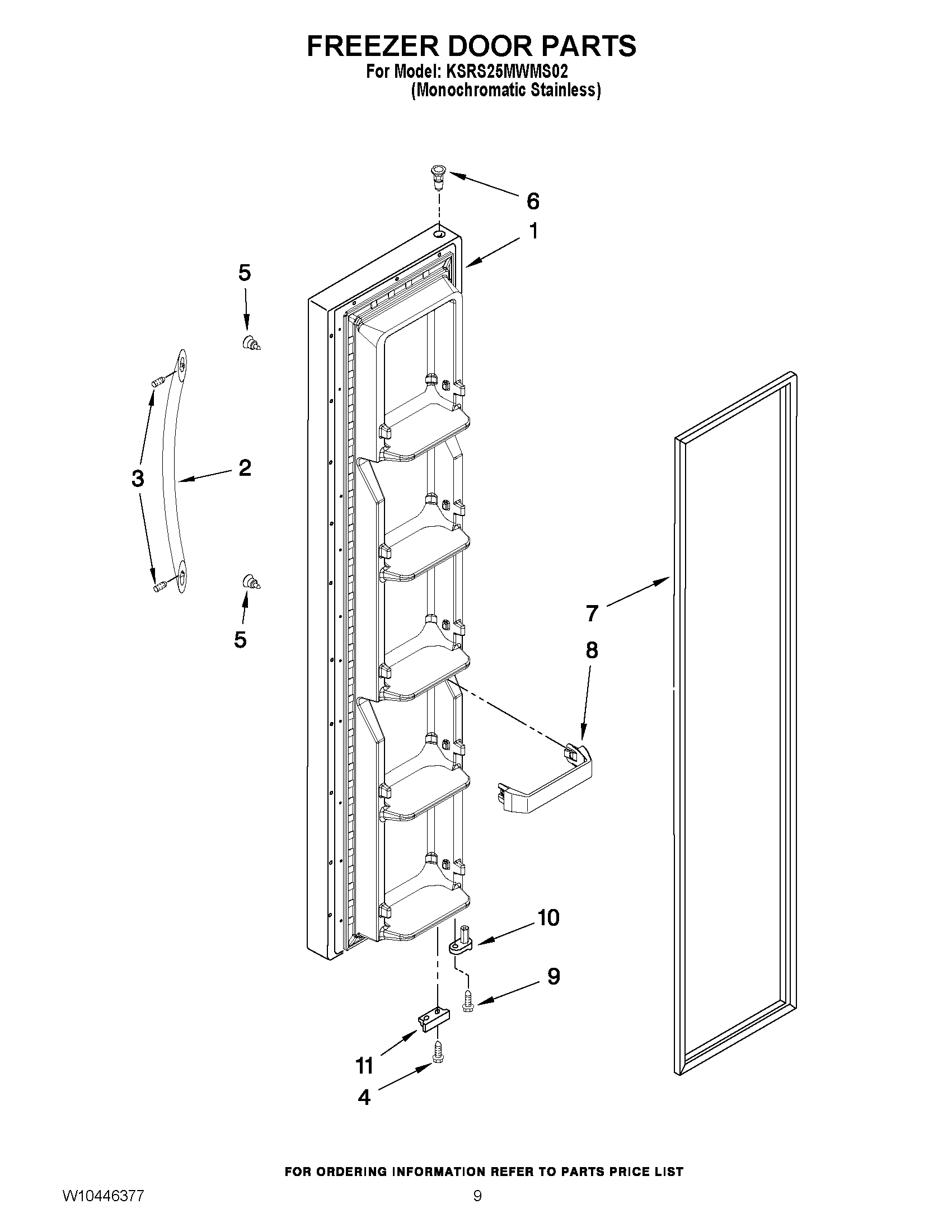

KSRS25MWMS02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1LW10365637 Whirlpool Refrigerator DOR-FIP SS
2Handle, Door (Stainless Steel)
3SCREW
4WP489483 Whirlpool Screw
5WPW10170540 Whirlpool Screw
6WP2182181 Whirlpool Refrigerator Thimble
7W10136735 Whirlpool Refrigerator Door Gasket
8WP2309718 Whirlpool Refrigerator Door Trim
9WP3400012 Whirlpool Refrigerator Screw
10WP2182179 Whirlpool Cam Closer
11W10185566 Whirlpool Bracket
