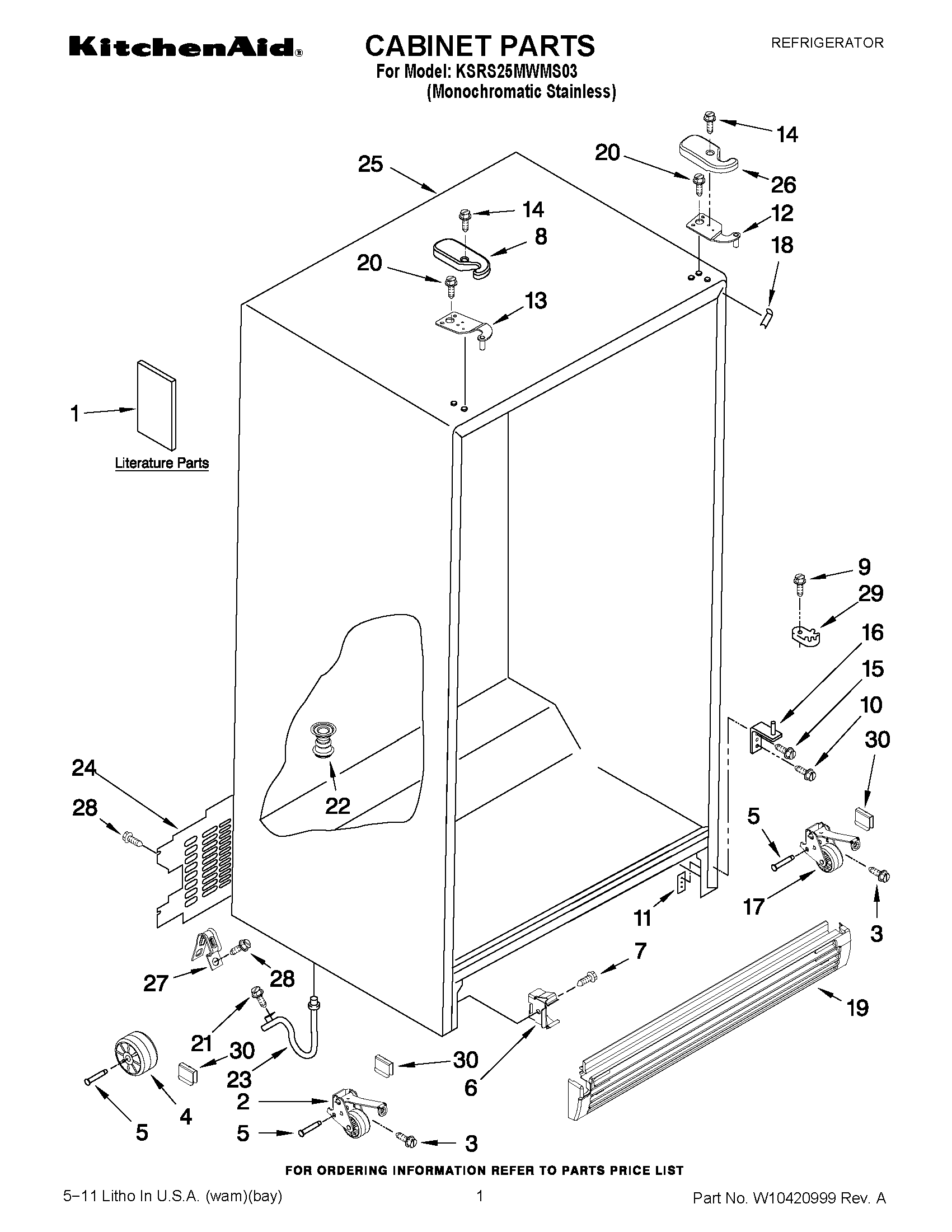

KSRS25MWMS03 01 – CABINET PARTS

KSRS25MWMS03 01 – CABINET PARTS

Written by

in

KSRS25MWMS03 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1ENERGY LABEL
1SERVICE & WIRING SHEET
2WPW10304660 Whirlpool Wheel Assembly
3WP489427 Whirlpool Refrigerator Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6WP2155013 Whirlpool Refrigerator Clip
7WP489128 Whirlpool Refrigerator Screw
8Hinge Cover (RC) (Apollo Grey)
9WP489483 Whirlpool Screw
10W10856122 Whirlpool Refrigerator Screw
11WP2304249 Whirlpool Refrigerator Plate
12HINGE TOP (RC)
13HINGE TOP (FC)
14WP8281227 Whirlpool Screw
15WP489497 Whirlpool Screw
16HINGE BOTTOM
17WPW10304659 Whirlpool Wheel Assembly
18W10851579 Whirlpool Refrigerator Filler
192198470AP Whirlpool Refrigerator Grille
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24WP2188755 Whirlpool Rear Panel
25CABINET (NOT A SERVICEABLE PART)
26Hinge Cover (FC) (Apollo Grey)
27549193 Whirlpool Refrigerator Power Clamp
29WPW10329686 Whirlpool Door Cam Black
30WP2174706 Whirlpool Refrigerator Pin Hitch
