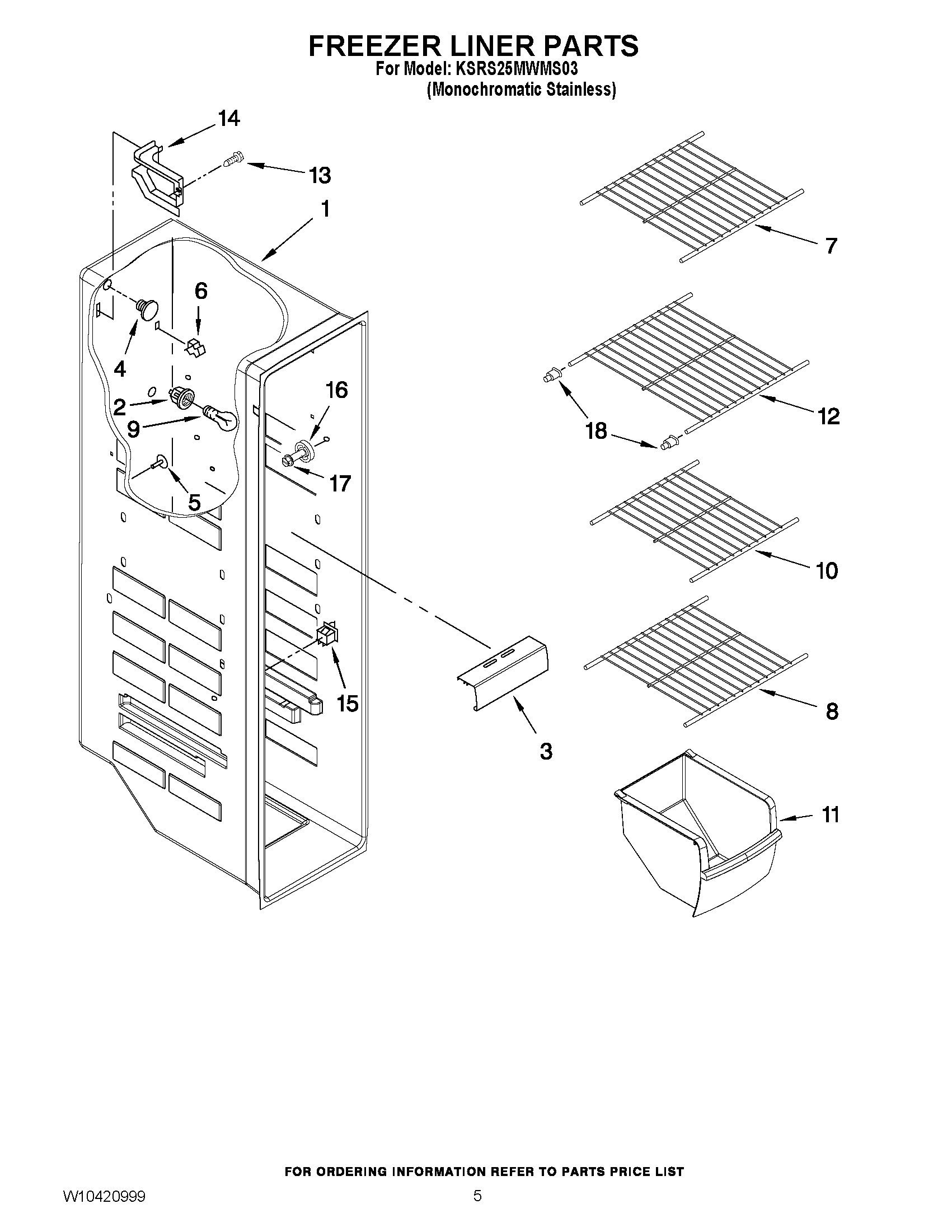

KSRS25MWMS03 04 – FREEZER LINER PARTS

Products

Position	Product
1	CABINET (NOT A SERVICEABLE PART)
2	SOCKET
3	2198479 Whirlpool Refrigerator Light Lens
4	2223173 Whirlpool Refrigerator Tube Plug
5	WP941839 Whirlpool Refrigerator Button Plug
6	2215823 Whirlpool Refrigerator Clip
7	W10318945 Whirlpool Refrigerator Wire Shelf
8	WPW10318947 Whirlpool Wire Shelf
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	WPW10318948 Whirlpool Wire Shelf
11	WPW10144409 Whirlpool Refrigerator Freezer Bin
12	SHELF, WIRE
13	WP489478 Whirlpool Refrigerator Screw
14	Cover, Wiring
15	W11384469 Whirlpool Door Switch
16	W11527119 Whirlpool Refrigerator Shelf Stud
17	WPW10191952 Whirlpool Refrigerator Screw
18	WPW10130299 Whirlpool Refrigerator Cup
