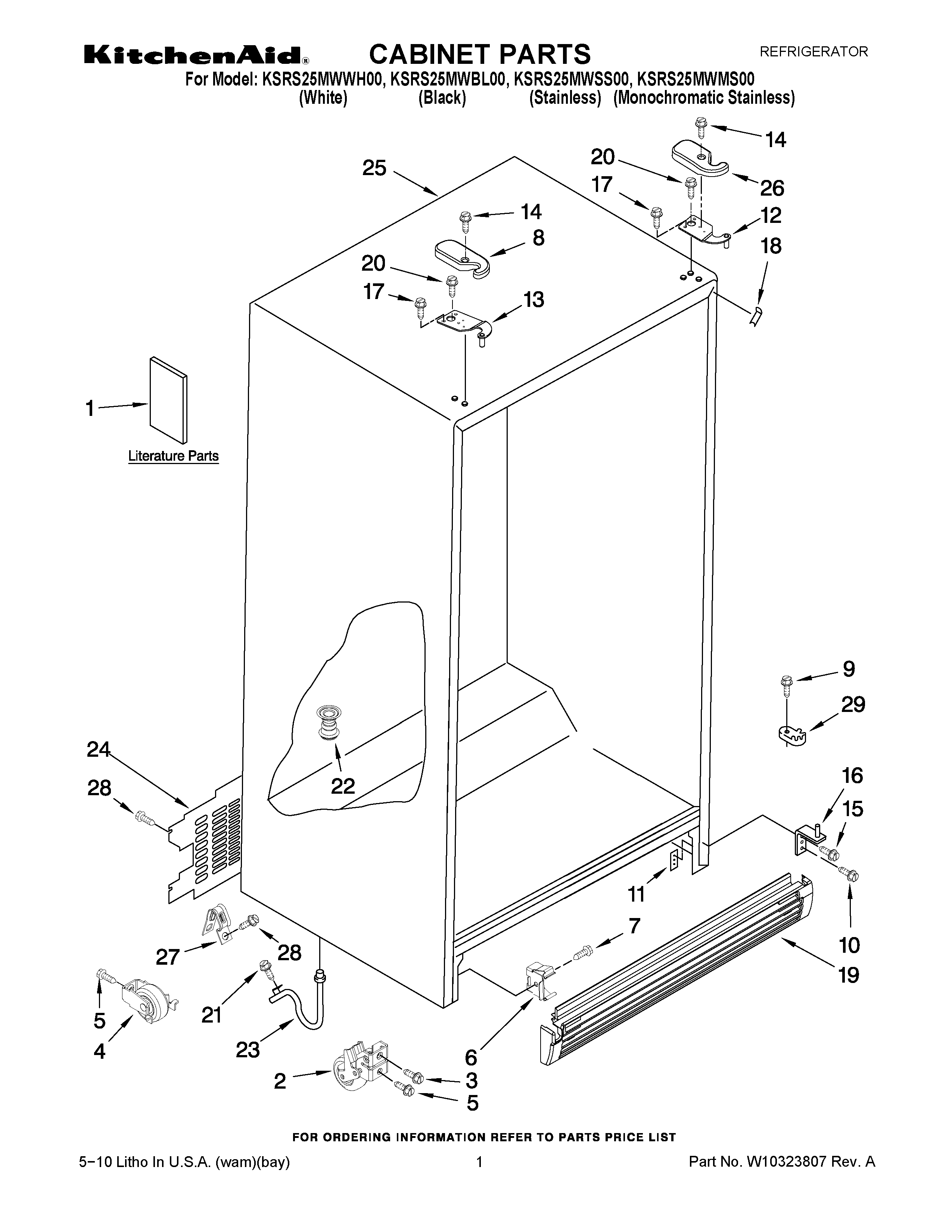

KSRS25MWSS00 01 – CABINET PARTS

KSRS25MWSS00 01 – CABINET PARTS

Written by

in

KSRS25MWSS00 01 – CABINET PARTS

Products

PositionProduct
1USE & CARE GUIDE
1ENERGY LABEL
1SERVICE & WIRING SHEET
2Front Roller (2)
3W10850698 Whirlpool Refrigerator Screw
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5WP489427 Whirlpool Refrigerator Screw
6WP2155013 Whirlpool Refrigerator Clip
7WP489128 Whirlpool Refrigerator Screw
8Hinge Cover (RC) (Black)
8Hinge Cover (RC) (Apollo Grey)
8Hinge Cover (RC) (White)
9WP489483 Whirlpool Screw
10W10856122 Whirlpool Refrigerator Screw
11WP2304249 Whirlpool Refrigerator Plate
12WP2203771 Whirlpool Refrigerator Door Hinge
13WP2203770 Whirlpool Refrigerator Door Hinge
14WP8281227 Whirlpool Screw
15WP489497 Whirlpool Screw
16HINGE BOTTOM
17W10853301 Whirlpool Refrigerator Screw
18W10851579 Whirlpool Refrigerator Filler
18W11252732 Whirlpool Refrigerator Filler
18WPW10283959 Whirlpool Refrigerator Filler
19WPW10283946 Whirlpool Refrigerator Grille
192198470AP Whirlpool Refrigerator Grille
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24Cover, Unit
25CABINET (NOT A SERVICEABLE PART)
26Hinge Cover (FC) (Black)
26Hinge Cover (FC) (Apollo Grey)
26Hinge Cover (FC) (White)
27549193 Whirlpool Refrigerator Power Clamp
29WPW10329686 Whirlpool Door Cam Black
