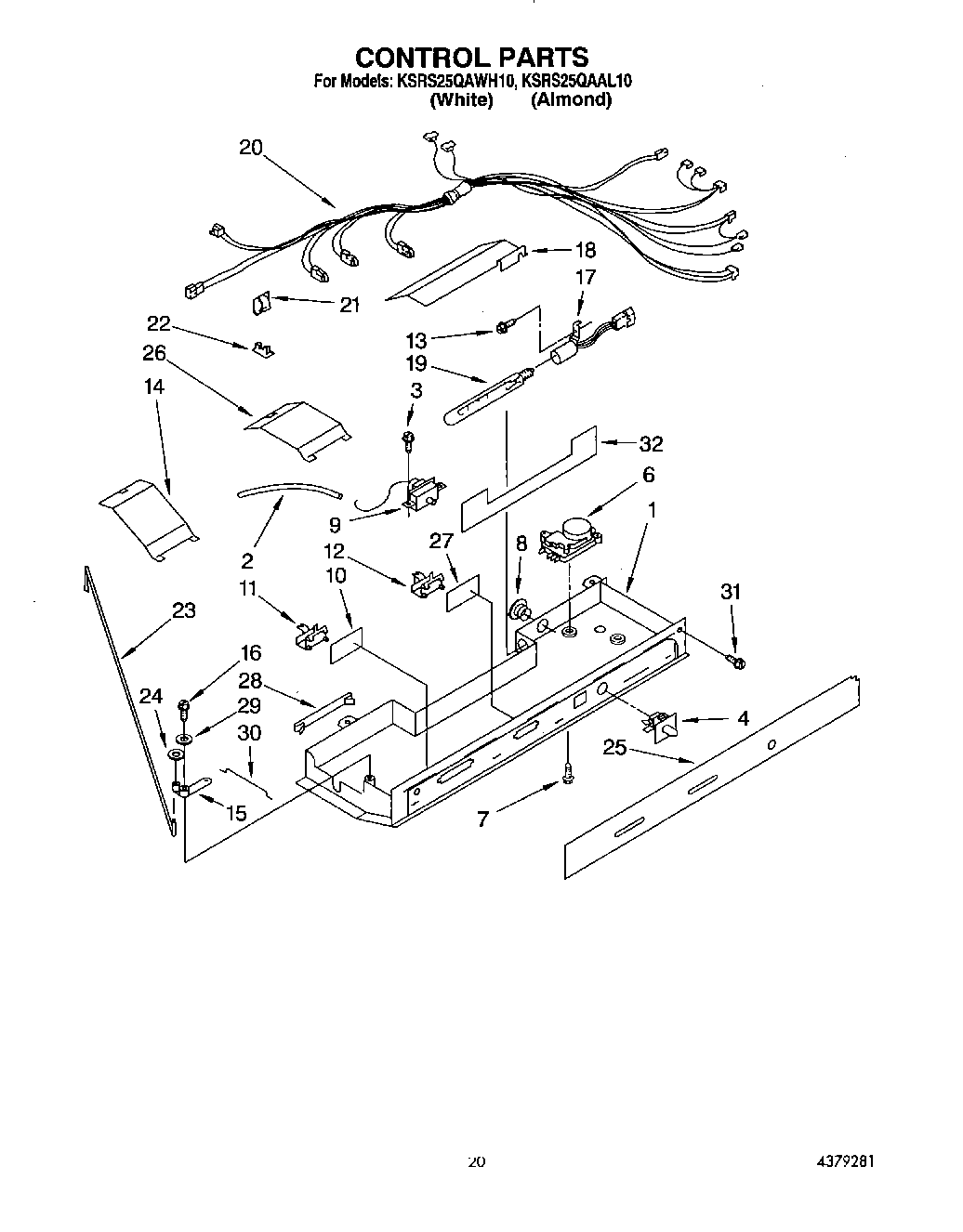

KSRS25QAWH10 12 – CONTROL, LIT/OPTIONAL

Products

Position	Product
	Torx Key
	WPL LIT2168883
	WPL LIT2155697
	WPL LIT2161900
	Modular Icemaker Service Sheet
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	Defrost Timer (10 Hr.)
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2315562 Whirlpool Refrigerator Thermostat
10	Window
11	Slide, Air Control
12	Slide, Thermostat
13	WP489478 Whirlpool Refrigerator Screw
14	Light Bar
15	2161306 Whirlpool Refrigerator Arm Pivot
16	627068 Whirlpool Refrigerator Screw
17	Light Socket
18	Heat Shield
19	WP548049 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar
27	Window
28	Clip, Control Box
29	489203 Whirlpool Refrigerator Washer
30	2161307 Whirlpool Refrigerator Rod
31	WP488488 Whirlpool Refrigerator Screw
32	Heat Shield
32	350930 Whirlpool White Spray Paint
32	Transformer (115-230 Volt)
32	WPW10312300 Whirlpool Refrigerator Ice Container
32	606755 Whirlpool Refrigerator Bag
32	511873 Whirlpool Refrigerator Paint
32	350942 Whirlpool Spray Paint
32	212643 Whirlpool Refrigerator Permagum Sealer
32	Almond (Uncut)
32	Leveler (Thinner)
32	WP72107 Whirlpool Touchup
32	799344 Whirlpool Refrigerator Paint
32	72017 Whirlpool Appliance Touch-Up Paint White
32	833938 Whirlpool Refrigerator Terminal
32	876370 Whirlpool Refrigerator Insulation
32	WP503695 Whirlpool Refrigerator Sealer
32	72032 Whirlpool Touch Up Paint Black
32	285006 Whirlpool Spray
32	WPL 876029
32	WPL 799833
32	Enamel, Black (1 Qt. Uncut)
32	CEMENT, ALUMILASTIC (1 1/4 OZ.)
32	TAPE, VINYL (3/4 X 108“)
32	WP542638 Whirlpool Refrigerator Grease
32	WP505587 Whirlpool Refrigerator Sealer
32	350956 Whirlpool Spray Assembly
