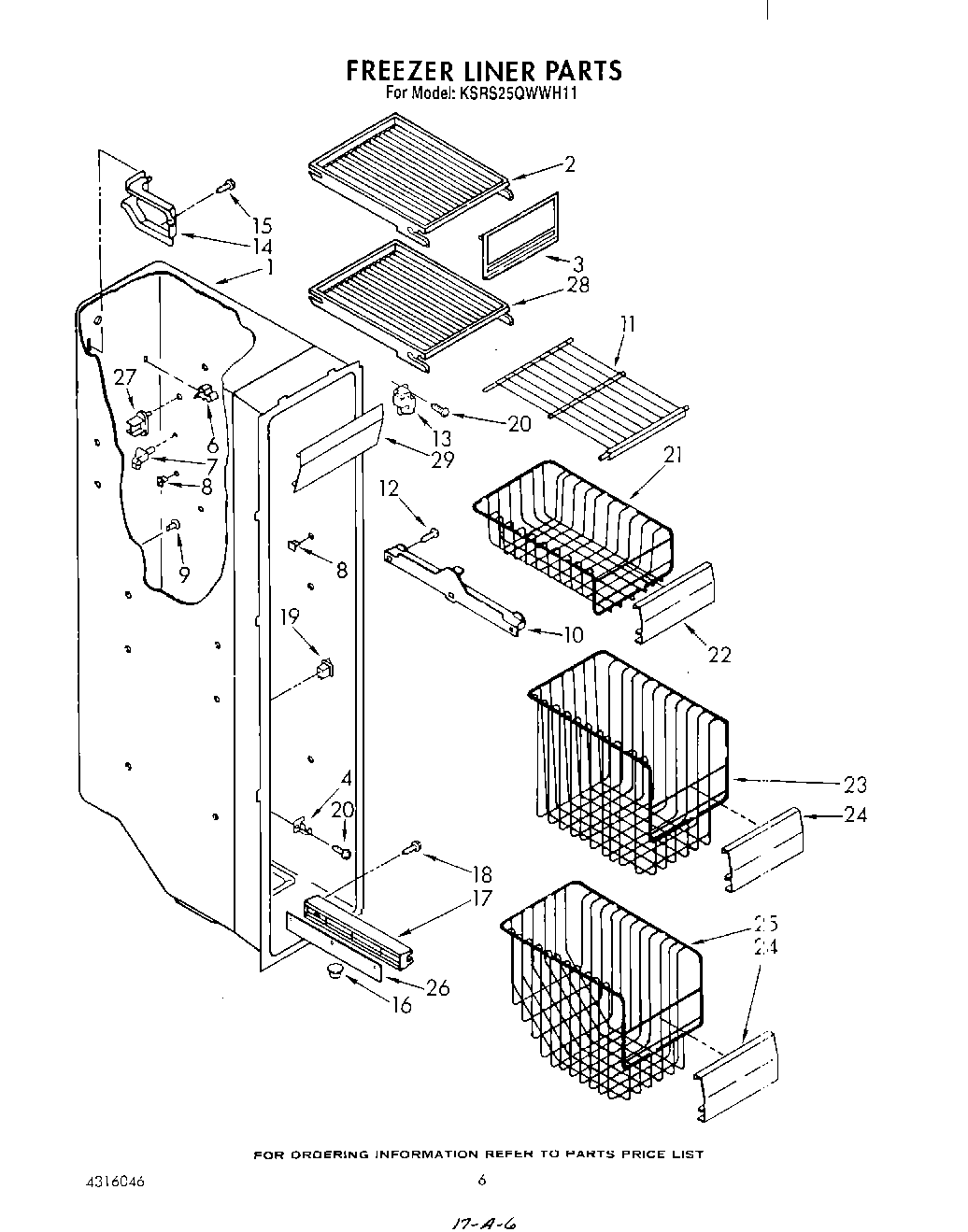

KSRS25QWWH11 05 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Shelf, Top Compartment
3	Door, Ice Compartment
4	Evaporator, Support
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet (8)
10	W10845583 Whirlpool Refrigerator Track
10	W10845585 Whirlpool Refrigerator Track
11	Shelf
12	718257 Whirlpool Dishwasher Screw
13	Terminal Block, Multiple
14	Wiring Cover
15	WP488729 Whirlpool Refrigerator Door Screw
16	Fitting, Drain
17	Shelf Track, (Left Side)
17	Shelf Track, (Right Side)
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	SCREW
20	WP489478 Whirlpool Refrigerator Screw
21	Basket, Small
22	Front, Basket
23	Basket, Upper
24	Front, Basket
25	Basket, Lower
26	Shim, Basket Track (2)
27	Stud, Shelf (4)
28	Shelf, Top Compartment
29	Light Lens
