KSRS25QXAL11 13 – CONTROL

KSRS25QXAL11 13 – CONTROL

Written by

in

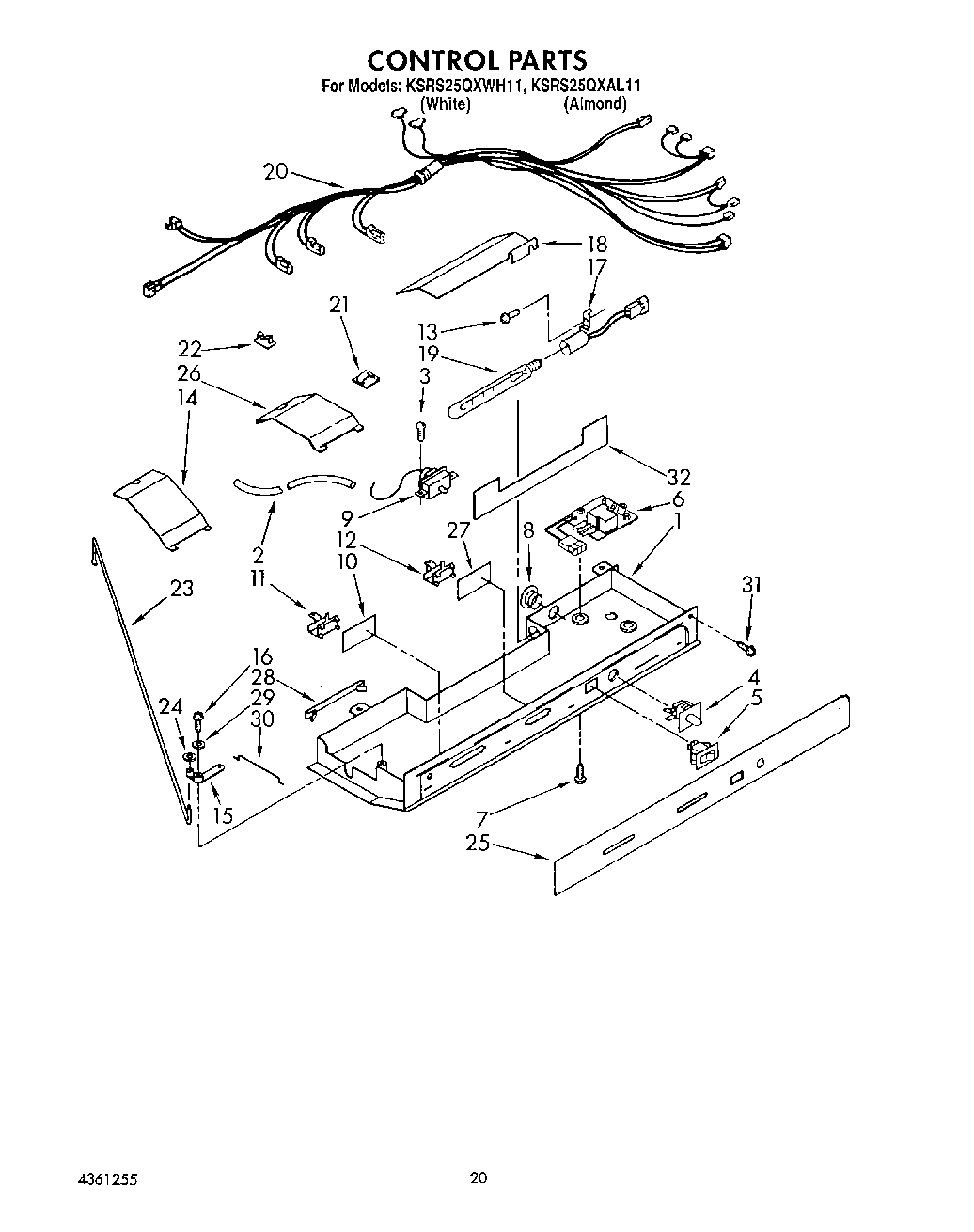

KSRS25QXAL11 13 – CONTROL

Products

PositionProduct
1Control Box
2WP2196003 Whirlpool Refrigerator Bar Riser
32006254 Whirlpool Refrigerator Screw
4WP2149705 Whirlpool Refrigerator Door Switch
5Switch, Toggle
64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7489392 Whirlpool Refrigerator Screw
8940014 Whirlpool Refrigerator Primary Button Plug
9Thermostat Assembly
10Window
11Slide, Air Control
12Slide, Thermostat
13WP489478 Whirlpool Refrigerator Screw
14Light Bar
15Pivot Arm
16627068 Whirlpool Refrigerator Screw
17Light Socket
18Heat Shield
19WP548049 Whirlpool Refrigerator Light Bulb
20Control Box Harness
21WP1115374 Whirlpool Refrigerator Clip
22CLIP, WIRING
23Connecting Rod
24Fastener, Push-On
25Escutcheon, Control Box
26Light Bar
27Window
28Clip, Control Box
29489203 Whirlpool Refrigerator Washer
30Connecting Rod (Short)
31WP488488 Whirlpool Refrigerator Screw
32Heat Shield
