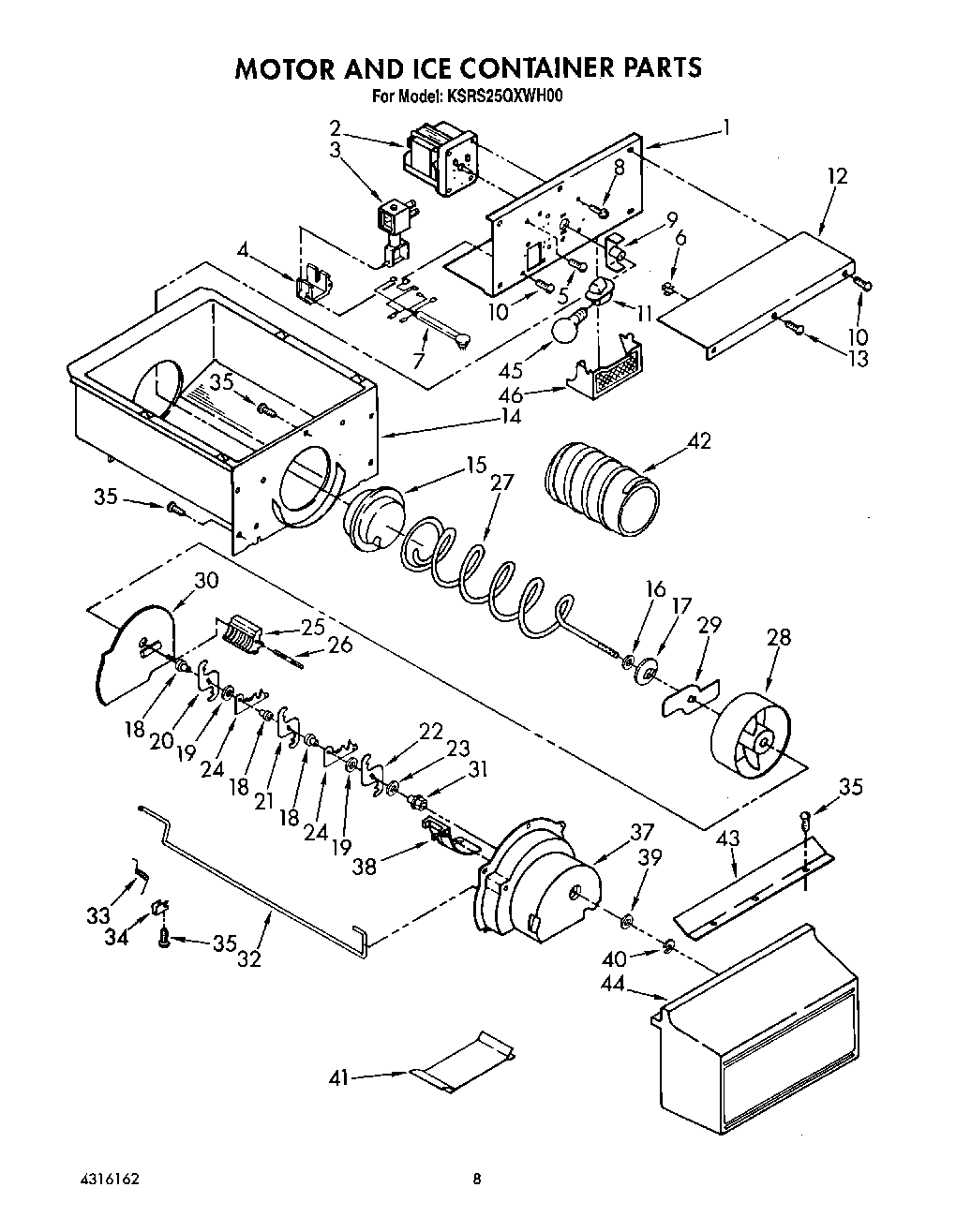

KSRS25QXWH00 07 – MOTOR AND ICE CONTAINER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT1126238
	WPL LIT2149885
	WPL LIT1125682
	Torx Key
	WPL LIT4316162
	WPL LIT628107
1	Bracket, Motor
2	WP2188242 Whirlpool Refrigerator Motor
3	WP2152713 Whirlpool Refrigerator Solenoid
4	W10850503 Whirlpool Refrigerator Guide
5	Screw (2)
6	WP1115374 Whirlpool Refrigerator Clip
7	Wiring Assembly, Ice Dispenser
8	303776 Whirlpool Dishwasher Screw
9	COUPLING AUGER MOTOR
10	WP489478 Whirlpool Refrigerator Screw
11	4387478 Whirlpool Refrigerator Light Socket
12	Cover, Motor
13	WP489128 Whirlpool Refrigerator Screw
14	WPW10670845 Whirlpool Refrigerator Ice Container
15	W10749708 Whirlpool Refrigerator Coupling
16	Stop, Cone
17	Feeder Cone
18	WP1119005 Whirlpool Refrigerator Spacer
19	WP1119007 Whirlpool Refrigerator Spacer
20	W10278731 Whirlpool Refrigerator Blade
21	W10278732 Whirlpool Refrigerator Blade
22	W10278733 Whirlpool Refrigerator Blade
23	WP489235 Whirlpool Refrigerator Washer
24	Blade, Fixed (2)
25	2157405 Whirlpool Refrigerator Blade Block
26	489229 Whirlpool Refrigerator Roll Pin
27	W10422851 Whirlpool Ice Maker Bucket Auger
29	4388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30	W10852691 Whirlpool Refrigerator Baffle
31	WP1119018 Whirlpool Refrigerator Bearing
32	Control Arm
33	1119020 Whirlpool Refrigerator Spring
34	1119021 Whirlpool Refrigerator Clip
35	WP488787 Whirlpool Refrigerator Screw
37	WPW10185018 Whirlpool Refrigerator Housing
38	WP1119017 Whirlpool Refrigerator Deflector
39	489234 Whirlpool Refrigerator Washer
40	WP489236 Whirlpool Refrigerator Ring
41	Housing Filler
42	4317870 Whirlpool Refrigerator Auger Sleeve
43	Deflector, Ice Container
44	Front Cover, Ice Container
45	RANGE ONLY 40W 120V APPL BULB
46	WP505587 Whirlpool Refrigerator Sealer
46	WPL 799833
46	212643 Whirlpool Refrigerator Permagum Sealer
46	Leveler (Thinner)
46	WPL 876029
46	WP72107 Whirlpool Touchup
46	799344 Whirlpool Refrigerator Paint
46	72017 Whirlpool Appliance Touch-Up Paint White
46	285006 Whirlpool Spray
46	350956 Whirlpool Spray Assembly
46	350930 Whirlpool White Spray Paint
46	CEMENT, ALUMILASTIC (1 1/4 OZ.)
46	Transformer (115-230 Volt)
46	Lens, Dispenser Light
46	WP503695 Whirlpool Refrigerator Sealer
46	72032 Whirlpool Touch Up Paint Black
46	WP542638 Whirlpool Refrigerator Grease
46	Enamel, Black (1 Qt. Uncut)
46	TAPE, VINYL (3/4 X 108``)
46	876370 Whirlpool Refrigerator Insulation
46	833938 Whirlpool Refrigerator Terminal
46	606755 Whirlpool Refrigerator Bag
46	511873 Whirlpool Refrigerator Paint
46	350942 Whirlpool Spray Paint
46	Almond (Uncut)
