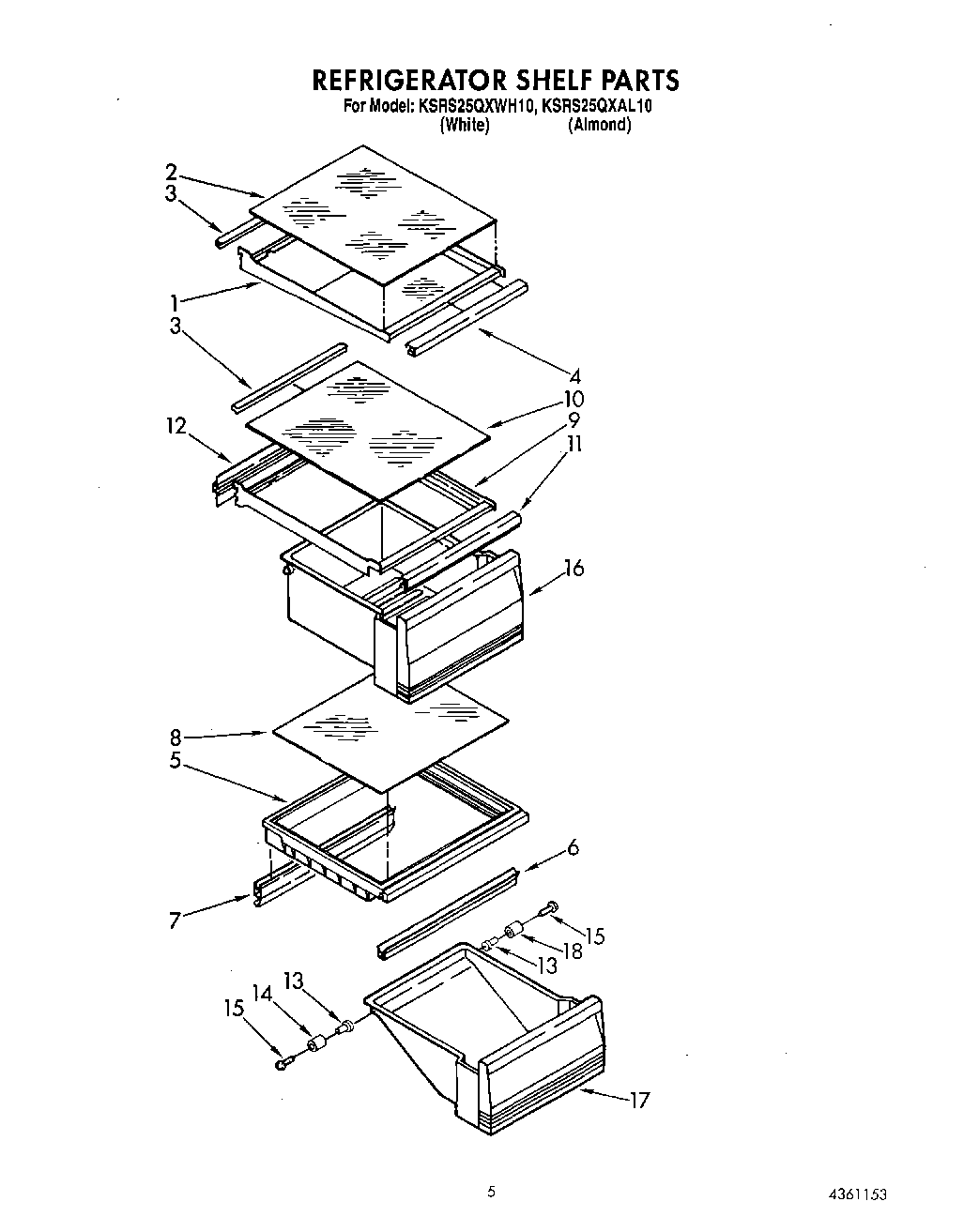

KSRS25QXWH10 03 – REFRIGERATOR SHELF

KSRS25QXWH10 03 – REFRIGERATOR SHELF

Written by

in

KSRS25QXWH10 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Glass, Shelf
3Retainer
4Gasket, Front
5WP2161491 Whirlpool Crisper Drawer Cover
6WP1125528 Whirlpool Refrigerator Gasket
7Gasket, Cover (Rear)
8Glass, Cover (2)
9Pan Shelf & Slide Assembly
10Glass, Shelf
11Gasket (Front)
12Gasket (Rear)
13Eyelet, Roller
14Roller
15WP489261 Whirlpool Refrigerator Screw
16Crisper Pan (2)
17Utility Pan
18Roller, R.S.
