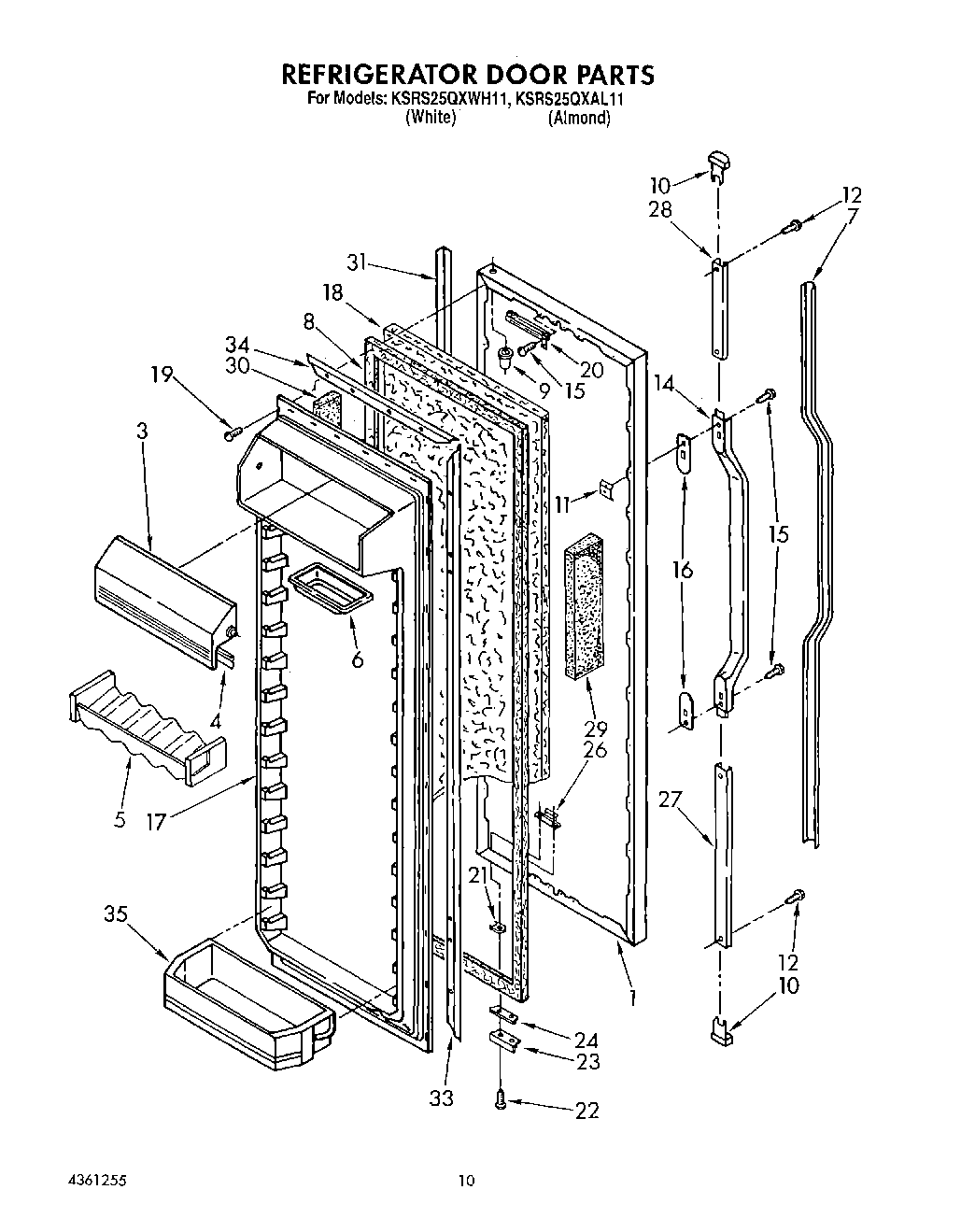

KSRS25QXWH11 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Almond (Also Order Item 18))
1	Refrigerator Door (Also Order Item 18)
3	Compartment Door,
4	Gasket, Utility Door
5	WPL 1125981
6	Butter, Tray
7	Insert, Handle
7	Insert, Handle (Almond)
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap (2)
11	Screw Anchor (2)
12	Screw
14	Handle
16	Spacer, Handle
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
26	Tap Plate
27	Retainer, Insert
28	Retainer, Insert
29	Dike, Door Handle Side
30	Dike, Door Hinge Side
31	Trim, Door
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Acrylic Panel Kit (White)
35	Bin, Door Shelf Deep. Wide
35	Black Glass
35	Handle Inserts (Black Grille Kit)
35	Handle Inserts (Woodgrain)
35	Handle Inserts (Black)
35	Trim Kit
35	Acrylic Panel Kit (Almond)
