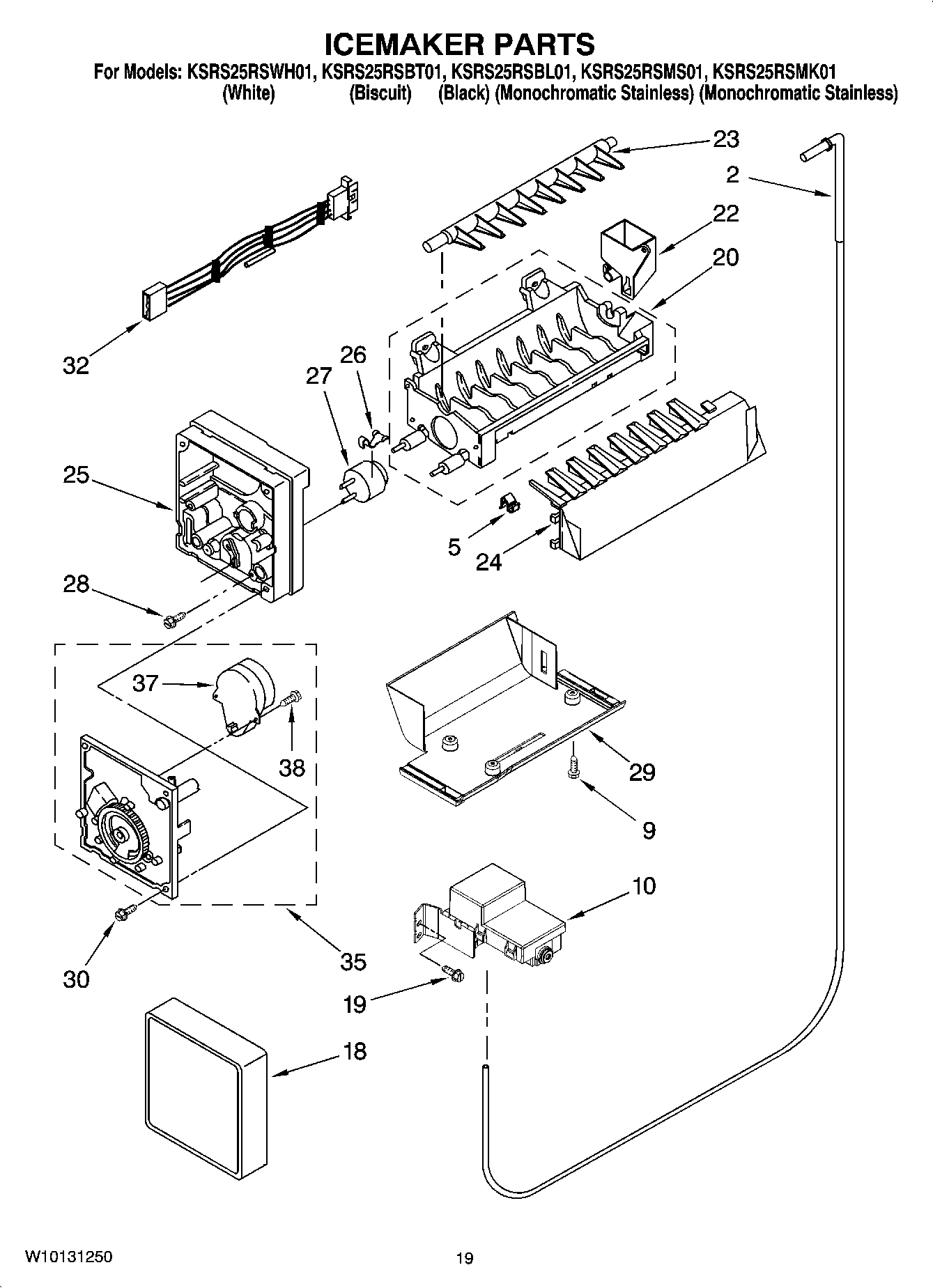

KSRS25RSBT01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSRS25RSBT01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSRS25RSBT01 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
285006 Whirlpool Spray
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
350942 Whirlpool Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WPL ARI102847A
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL ARI102846A
WPL ARI102845A
PAINT, BULK (1 QT. GRAPHITE)
CLEANER, (STAINLESS STEEL)
4210463RW Whirlpool Refrigerator Coil Brush
72032 Whirlpool Touch Up Paint Black
WPL ARI102848A
2WP2256096 Whirlpool Refrigerator Fitting
5WP628379 Whirlpool Refrigerator Clip
9WP489478 Whirlpool Refrigerator Screw
10WPW10159839 Whirlpool Refrigerator Inlet Valve
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24W10297244 Whirlpool Refrigerator Arm Strip
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
29BRACKET, ICEMAKER MOUNTING
30WP681249 Whirlpool Screw Assembly
32WP2187467 Whirlpool Refrigerator Wire Harness
378201515 Whirlpool Refrigerator Motor and Gear Module Kit
38489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
