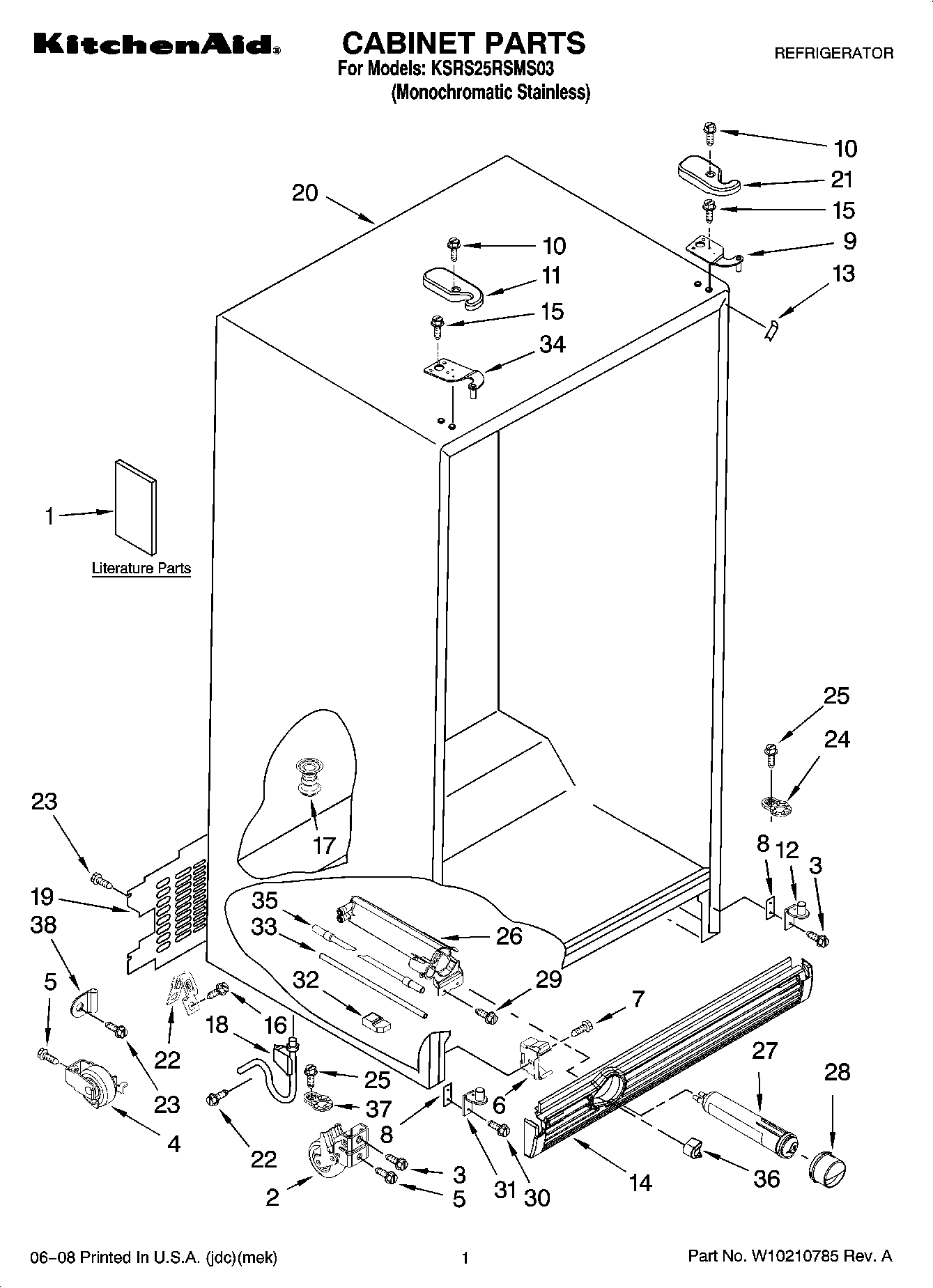

KSRS25RSMS03 01 – CABINET PARTS

Products

Position	Product
1	Owner`s Manual
1	Energy Guide
1	Modular Icemaker Service Sheet
1	Instruction Sheet, Door Removal
1	Service & Wiring Sheet
2	Front Roller (2)
3	W10850698 Whirlpool Refrigerator Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489128 Whirlpool Refrigerator Screw
8	WP2181911 Whirlpool Refrigerator Shim
9	WP2203771 Whirlpool Refrigerator Door Hinge
10	WP8281227 Whirlpool Screw
11	2203407AP Whirlpool Refrigerator Cover
12	W10138965 Whirlpool Refrigerator Door Hinge
13	Filler, Wrapper (Apollo Grey)
14	Grille (Midnight Grey)
16	WP489464 Whirlpool Refrigerator Screw
17	W11566763 Whirlpool Fitting
18	Extension Tube
19	WP2188755 Whirlpool Rear Panel
20	Cabinet, (Not A Serviceable Part)
21	2203408AP Whirlpool Refrigerator Cover
22	549193 Whirlpool Refrigerator Power Clamp
24	WPW10329686 Whirlpool Door Cam Black
25	WP489483 Whirlpool Screw
26	WPW10121138 Whirlpool Refrigerator Water Filter Housing
27	FILTER 3-SINGLE TEAL
28	WP2260518MG Whirlpool Water Filter Cap
29	WP489500 Whirlpool Refrigerator Screw
30	WP489497 Whirlpool Screw
31	2303141 Whirlpool Refrigerator Door Hinge
32	Block, Housing Support
33	WPW10350006 Whirlpool Refrigerator Water Tube
34	WP2203770 Whirlpool Refrigerator Door Hinge
35	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
36	2260503MG Whirlpool Refrigerator Button
37	WP2223751 Whirlpool Refrigerator Door Cam
38	WPL 2305373
